PtParallel Groove Clamp
High-Voltage Insulation · Smart Power Distribution · Industrial Frequency Conversion.

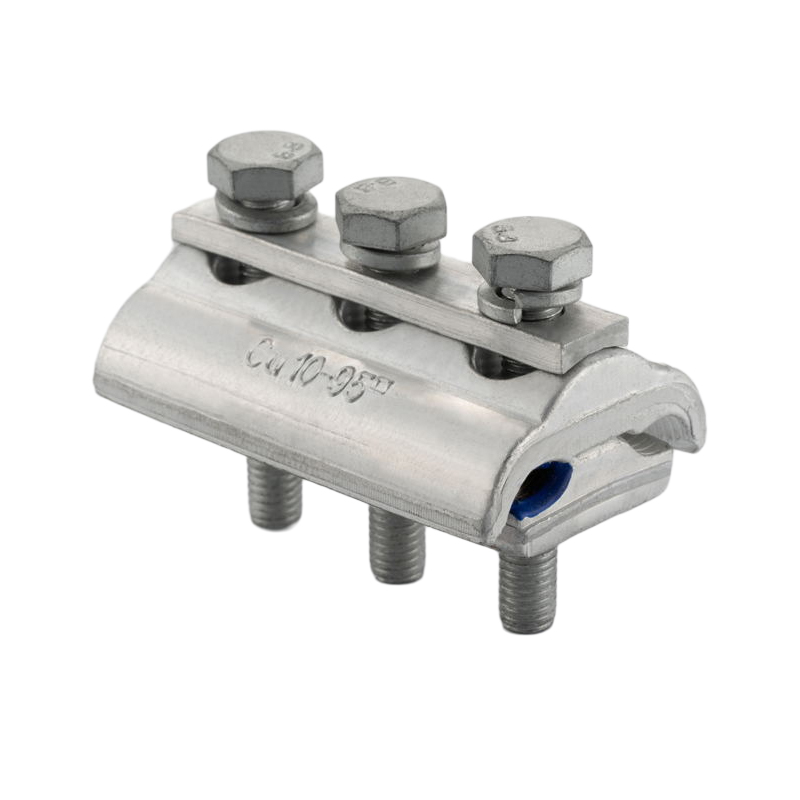

Parallel Groove Wire Clamp
The CAPG parallel groove clamps are designed to connect aluminium conductors and copper conductors.
Advanced forging technology enhances the mechanical strength of the clamp. Specialdesigned screw hole and arc shape ofthe body allow clamp to adjusts to different cable size on each side Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and stainless steel Pressure pad is applied to achieve uniform pressure along the clamp.
Brand:SOCOME
Model: CAPG
Material: Aluminum / Copper
Features: Anti-oxidation, corrosion resistance, low contact resistance and stable conductive performance.
Features: Anti-oxidation, corrosion resistance, low contact resistance and stable conductive performance.
Application:Power Distribution Systems, Branch Circuits, and Industrial Electrical Applications.
| Part NO | Size(mm²) | Sort | Package(pcs) | Gross weight(kg) |
| CAPG-A1 | Cu 6-50 Al16-70 | Single bolt | 240 | 16 |
| CAPG-A2 | Cu 10-95 Al 25-150 | Single bolt | 300 | 25 |
| CAPG-B1 | Cu 6-50 Al16-70 | Double bolt | 200 | 23.5 |
| CAPG-B2 | Cu 10-95 A125-150 | Double bolt | 240 | 34.5 |
| CAPG-B3 | Cu 25-185 Al 35-240 | Double bolt | 120 | 35.5 |
| CAPG-C1 | Cu 6-50 A116-70 | Tri-bolt | 150 | 25.5 |
| CAPG-C2 | Cu 10-95 A1 25-150 | Tri-bolt | 150 | 32 |
| CAPG-C3 | Cu 25-185 A135-240 | Tri-bolt | 64 | 27 |
| CAPG-C4 | Cu 35-240 Al 35-300 | Tri-bolt | 48 |
27.5 |
What is the CAPG Parallel Groove Clamp?
The CAPG parallel groove clamp is a high-performance connector designed to securely connect aluminum conductors and copper conductors in power distribution systems. Its advanced forging technology enhances mechanical strength ensuring long-term reliability and stable electrical performance.
How it Works?
The clamp features specially designed screw holes and an arc-shaped body allowing it to adjust to different cable sizes on each side. Pressure pads are applied to achieve uniform pressure along the clamp ensuring firm and stable connections. Bolt and nut materials can be customized according to customer requirements with options including hot-dip galvanized steel and stainless steel.
Benefits
The CAPG parallel groove clamp is a high-performance connector designed to securely connect aluminum conductors and copper conductors in power distribution systems. Its advanced forging technology enhances mechanical strength ensuring long-term reliability and stable electrical performance.
How it Works?
The clamp features specially designed screw holes and an arc-shaped body allowing it to adjust to different cable sizes on each side. Pressure pads are applied to achieve uniform pressure along the clamp ensuring firm and stable connections. Bolt and nut materials can be customized according to customer requirements with options including hot-dip galvanized steel and stainless steel.
Benefits
- Provides a durable safe and efficient solution for connecting conductors.
- Improves electrical reliability and maintains consistent current flow.
- Reduces installation time and maintenance costs.
- Ideal for power distribution systems branch circuits and industrial electrical applications.
