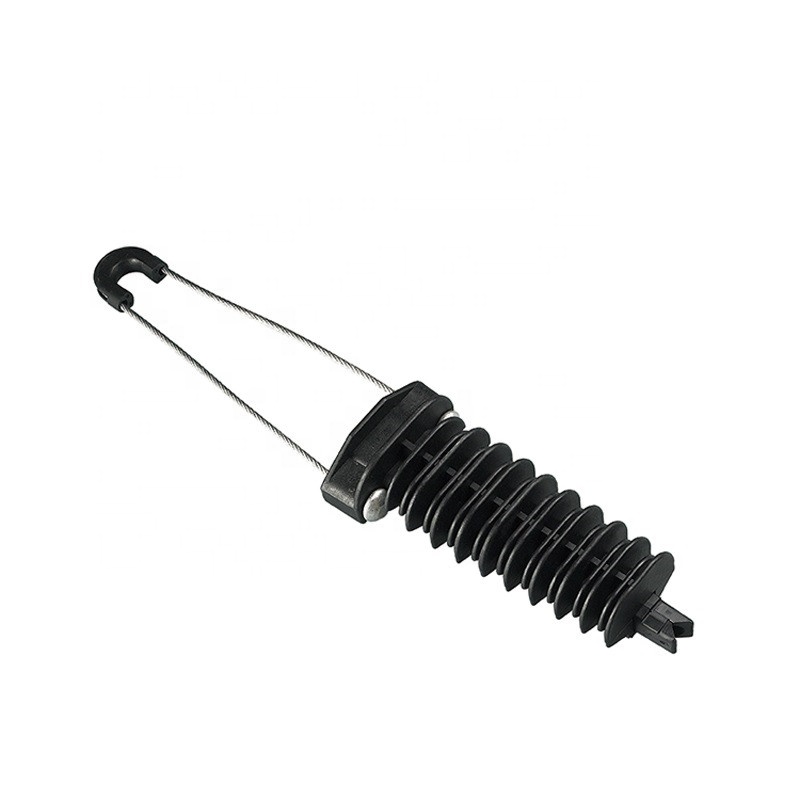

Outdoor Fiber Optic Tension Clamp
The NF UV Protect Anchor Clamp is designed for a fast, easy and reliable dead-ending of fiber optic cables on access networks with spans up to 100 m. A pair of wedges grips the cable automatically within the conical body. The installation does not require any specific tools and the operating time is drastically red uced.

Brand:SOCOME
Model:NF
Material:PA66 / Hot-dip Galvanized Steel /Aluminum-clad Steel
Features: Weather resistance, electrical insulation.
Standard:NFC33-042
INQUIRY
Model Conductor（mm） Breaking load Package（pcs） Gross weight（kg）
NF037 3-7 5KN 100 10
NF068 6-8 5KN 100 12
NF0810 8-10 5KN 100 13
NF01012 10-12 8KN 100 20
NF01214 12-14 8KN 100 21.5
NF01416 14-16 8KN 100 22
NF01618 16-18 8KN 100 24
NF01820 18-20 8KN 100 25


What is NF Single-core UV Protect Anchor Clamp?

The NF Single-core UV Protect Anchor Clamp is specially designed for fast easy and reliable dead-ending of single-core fiber optic cables. It is ideal for access networks with spans up to 100 meters providing secure cable termination without compromising cable integrity.

Working Principle

This clamp uses a pair of conical wedges that automatically grip the fiber optic cable within the clamp body. The design ensures uniform pressure and reliable fixation reducing installation time and eliminating the need for special tools. Its UV-resistant polymeric material ensures long-term durability in outdoor environments.

Product Advantages

  • Quick and Tool-Free Installation – saves time for network deployment.
  • UV-Resistant Material – suitable for harsh outdoor environments.
  • Automatic Cable Grip – provides secure dead-end termination without damaging the cable.
  • Durable Construction – ensures long-term performance in access networks.
  • Optimized for Fiber Optic Cables – perfect for single-core fiber installations.

Model Conductor（mm） Breaking load Package（pcs） Gross weight（kg）
NF037 3-7 5KN 100 10
NF068 6-8 5KN 100 12
NF0810 8-10 5KN 100 13
NF01012 10-12 8KN 100 20
NF01214 12-14 8KN 100 21.5
NF01416 14-16 8KN 100 22
NF01618 16-18 8KN 100 24
NF01820 18-20 8KN 100 25


What is NF Single-core UV Protect Anchor Clamp?

The NF Single-core UV Protect Anchor Clamp is specially designed for fast easy and reliable dead-ending of single-core fiber optic cables. It is ideal for access networks with spans up to 100 meters providing secure cable termination without compromising cable integrity.

Working Principle

This clamp uses a pair of conical wedges that automatically grip the fiber optic cable within the clamp body. The design ensures uniform pressure and reliable fixation reducing installation time and eliminating the need for special tools. Its UV-resistant polymeric material ensures long-term durability in outdoor environments.

Product Advantages

  • Quick and Tool-Free Installation – saves time for network deployment.
  • UV-Resistant Material – suitable for harsh outdoor environments.
  • Automatic Cable Grip – provides secure dead-end termination without damaging the cable.
  • Durable Construction – ensures long-term performance in access networks.
  • Optimized for Fiber Optic Cables – perfect for single-core fiber installations.
