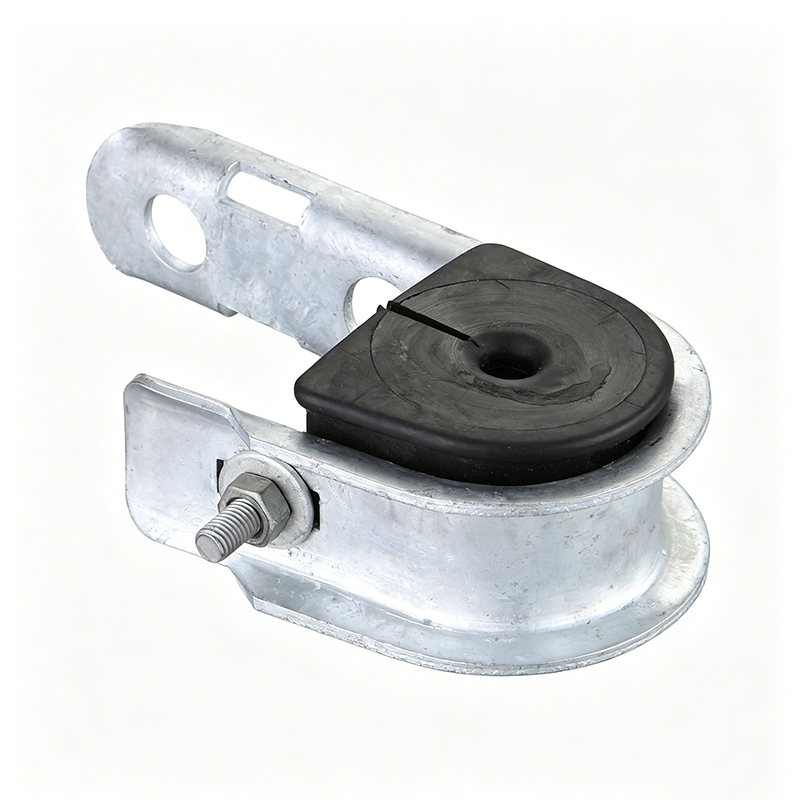

ABC Cable Tension Suspension Clamp
Suspension Clamps are used to suspend and support overhead insulated cables on poles or brackets while protecting them from excessive mechanical stress. With durable construction, easy installation, and excellent weather resistance, they are widely used in power distribution and utility line projects.
Brand: SOCOME
Model:PT
Material: Hot dip galvanized steel + Nylon
Features: Hot Max deflection angle up to 60°;
Fitted with wing nut for easy mounting;
Integrated structure, no loose separate parts
Application: Suspension & installation of four-core self-supporting LV-ABC cables on poles or walls
Standard: VDE 0211 INQUIRY
| Part NO | Material | Conductor(mm) | Breaking load | Package(pcs) | Gross weight(kg) |
| PT–1 | Nylon Steel | 8–12 | 12KN | 100 | 32 |
| PT–2 | Nylon Steel | 10–15 | 12KN | 100 | 33 |
| PT–3 | Nylon Steel | 15–20 | 12KN | 100 | 35 |
What is Suspension Clamp
A Suspension Clamp is a cable fitting designed to suspend and support overhead conductors or insulated cables on poles and towers. It keeps the cable securely in position while allowing limited movement caused by wind or temperature changes.
How it Works
The clamp grips the cable with a specially designed body and inserts distributing the mechanical load evenly without damaging the insulation or conductor. It is installed on brackets or hooks to provide stable suspension along the power line.
Benefits
- Reliable cable support and suspension
- Even load distribution to reduce cable stress
- Quick and simple installation
- Corrosion-resistant and weatherproof construction
- Long service life with minimal maintenance
- Suitable for overhead power distribution and communication networks
| Part NO | Material | Conductor(mm) | Breaking load | Package(pcs) | Gross weight(kg) |
| PT–1 | Nylon Steel | 8–12 | 12KN | 100 | 32 |
| PT–2 | Nylon Steel | 10–15 | 12KN | 100 | 33 |
| PT–3 | Nylon Steel | 15–20 | 12KN | 100 | 35 |
