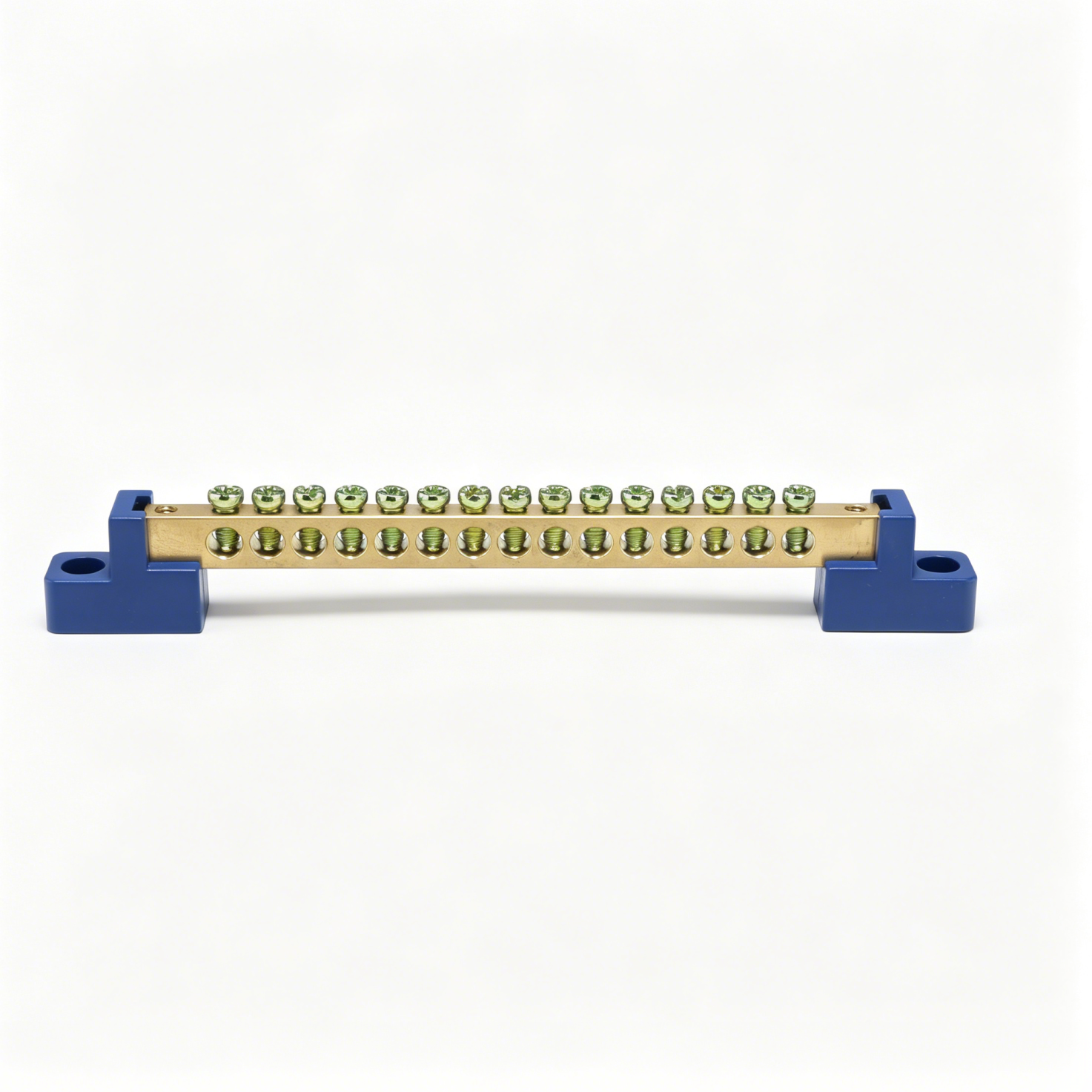

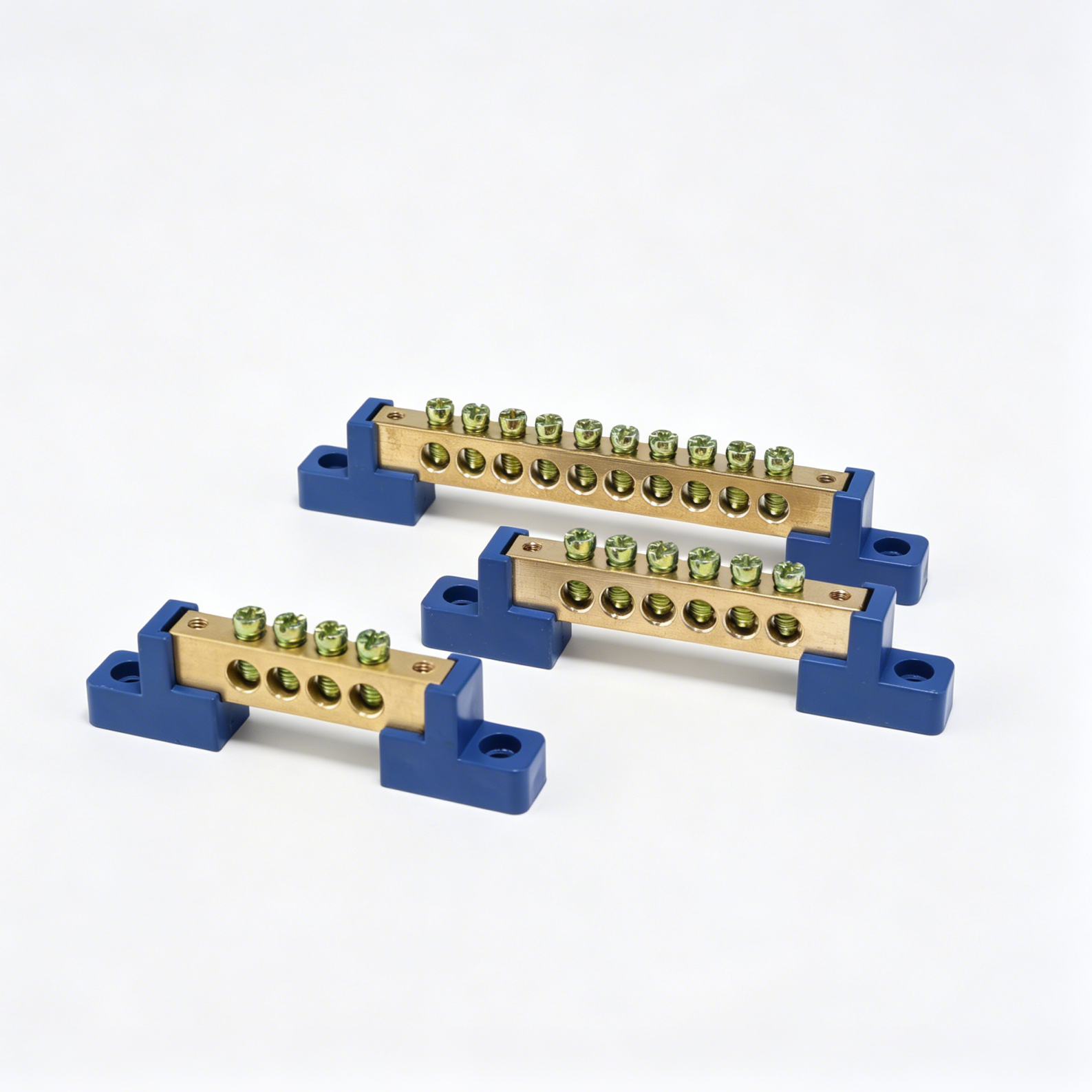

Terminal Block Connector Grade Brass Neutral links
Product Description
Designed for distribution boards, electrical cabinets, and control panels, these Neutral & Earth Terminal Blocks provide a reliable solution for centralized wiring. Featuring high-conductivity brass busbars and flame-retardant insulated housings, they ensure secure electrical connections, easy maintenance, and long service life. The DIN rail mounting design allows for quick installation, making them ideal for power distribution, industrial control, and automation applications.
Brand:SOCOME
PE (Polyethylene): Excellent flexibility, transparency, and chemical resistance.
Operating Temperature: -40°C to +65°C
PA66 (Polyamide 66): UL94 V-2 flame-retardant grade with high impact resistance and durability.
Operating Temperature: -30°C to +110°C
Conductive Parts
Busbar: High-quality brass
Screws: Zinc-plated steel
Electrical Rating
Rated Voltage: 250V–450V

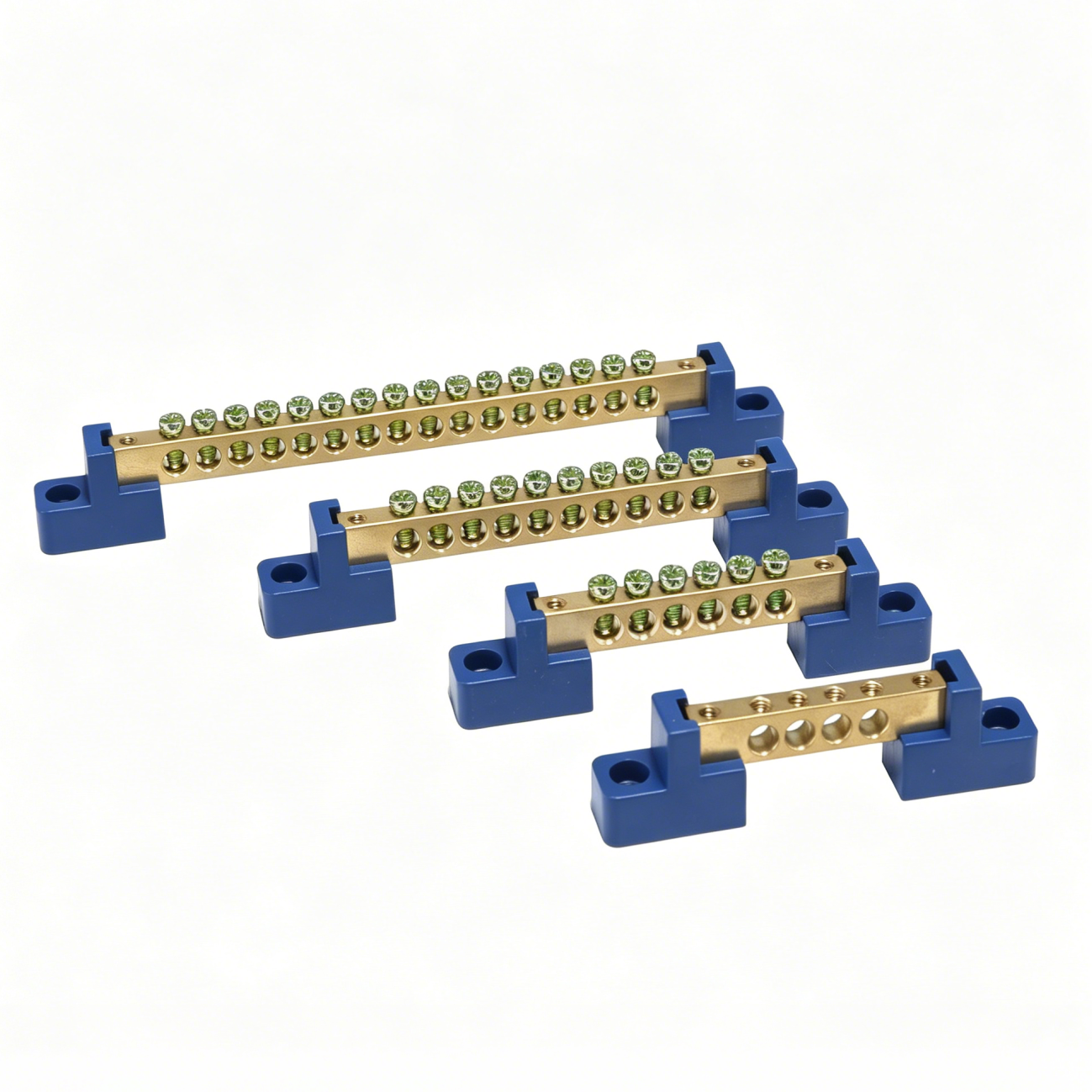

| Way | Installation Dimension L (mm) | Overall Dimension L1 (mm) | Copper Cross Section (mm²) |
|---|---|---|---|
| 4 | 64.5 | 76.5 × 12.5 | 6 × 9 |
| 6 | 77.5 | 89.5 × 12.5 | 6 × 9 |
| 8 | 90.5 | 102.5 × 12.5 | 6 × 9 |
| 10 | 103.5 | 115.5 × 12.5 | 6 × 9 |
| 12 | 116.5 | 128.5 × 12.5 | 6 × 9 |
| 14 | 129.5 | 141.5 × 12.5 | 6 × 9 |
| 16 | 142.5 | 154.5 × 12.5 | 6 × 9 |
What is a Neutral Terminal Block?
A Neutral Terminal Block is used in distribution boards to provide a centralized connection point for neutral wires in low-voltage electrical systems. It helps keep wiring organized simplifies maintenance and ensures reliable electrical conductivity through a solid brass or copper busbar.
How It Works
The terminal block consists of an insulated housing and a conductive brass bar designed for DIN rail mounting. Neutral wires from different circuits are secured by screws into the terminals creating a common neutral connection. Multiple blocks can be installed together to increase wiring capacity while regular inspection helps ensure safe and secure connections.
