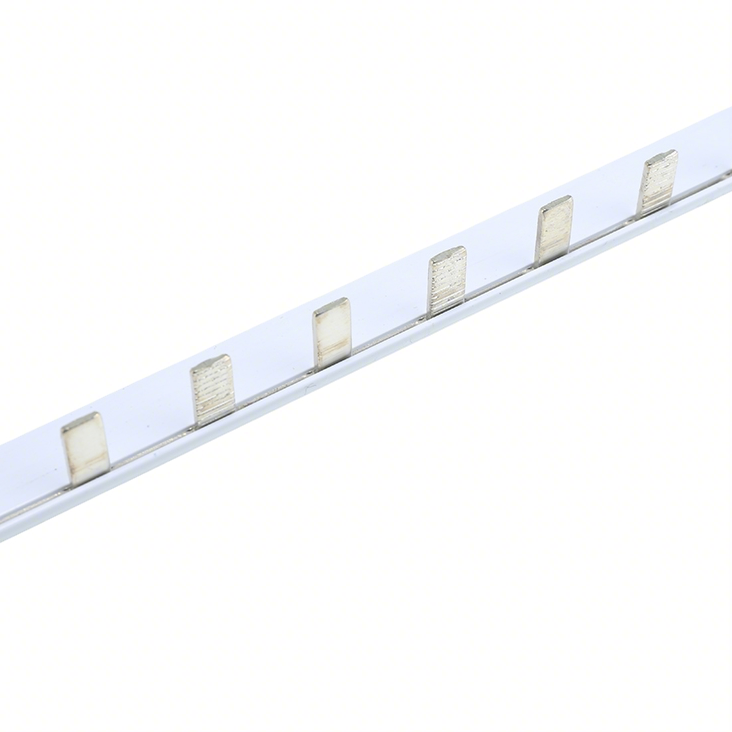

Heavy Duty Combinated Electrical Busbar
SOCOME manufactures a wide range of busbars for MCB applications, offering excellent versatility, reliability, and ease of installation. Designed for safe and organized power distribution, these busbars are widely used in low-voltage electrical systems, including distribution boards, power distribution boxes, consumer units, and lighting control panels.
- Brand: SOCOME
- Busbar Material: E-CU-F25 High-Conductivity Copper
- Insulation Material: PVC / PC-ABS
- Busbar Thickness: 1.2mm / 1.5mm
- Busbar Width: 5mm / 7mm / 9mm
- Type: VS C65 Series
| Model No. | Thickness (mm) | Cross Section (mm²) | Rated Current (A) | Width (mm) |
|---|---|---|---|---|
| 1P / 2P / 3P / 4P | 1.0 | 6 | 32 | 5 |
| 1.2 | 6 | 40 | 5 | |
| 1.4 | 10 | 63 | 7 | |
| 1.4 | 13 | 63 | 9 | |
| 1.8 | 16 | 100 | 9 |
What is this product?
A Busbar for Miniature Circuit Breakers (MCBs) also known as a distribution busbar or comb busbar is a power distribution accessory used in electrical distribution boards.
Made from high-conductivity copper with a tin-plated surface for corrosion resistance it enables multiple MCBs to be connected through a single power input providing a safer cleaner and more efficient wiring solution.
How does it work?
✔ Centralized Power Distribution
Instead of connecting a separate incoming wire to each circuit breaker only one main power cable is connected to the busbar. The copper conductor then distributes power evenly to all connected MCBs significantly reducing wiring time and installation complexity.
✔ Reliable and Safe Connection
The highly conductive copper busbar ensures stable power distribution minimizes contact resistance reduces heat generation and improves overall system reliability. It also makes future maintenance and circuit expansion faster and more convenient.
