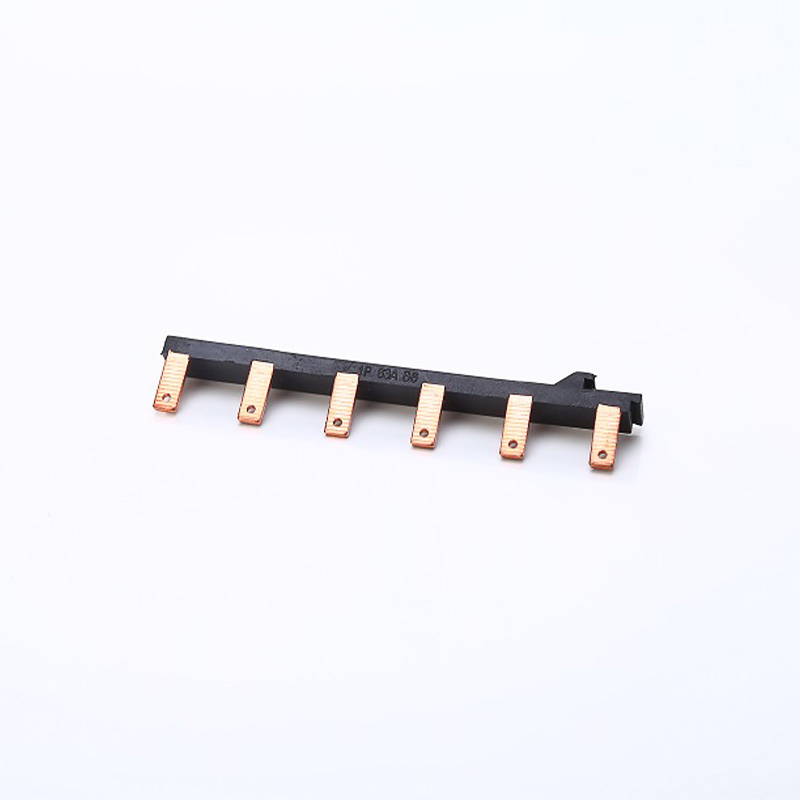

High Purity 63A Rectangular Bar
Product Description
Busbars provide a modern and efficient alternative to traditional wiring methods for Miniature Circuit Breakers (MCBs). Featuring a larger contact area, lower power loss, and reduced temperature rise, they improve electrical performance while enhancing installation efficiency.
SOCOME manufactures a wide range of busbars for MCB applications, offering excellent versatility, reliability, and ease of installation. Designed for safe and organized power distribution, these busbars are widely used in low-voltage electrical systems, including distribution boards, power distribution boxes, consumer units, and lighting control panels.
Technical Specifications
Busbar Material: E-CU-F25 High-Conductivity Copper
Insulation Material: PVC / PC-ABS
Busbar Thickness: 1.5 mm
Busbar Width: 7 mm
INQUIRY
| Model | Current Rating | Busbar Thickness (mm) | Busbar Width (mm) | Pole (Pin) |
|---|---|---|---|---|
| VS701 | 63A | 1.5 | 7 | 2P |
| VS701 | 63A | 1.5 | 7 | 3P |
| VS701 | 63A | 1.5 | 7 | 6P |
| VS701 | 63A | 1.5 | 7 | 8P |
| VS701 | 63A | 1.5 | 7 | 10P |
| VS701 | 63A | 1.5 | 7 | 12P |
What is this product?
A Busbar for Miniature Circuit Breakers (MCBs) also known as a distribution busbar or comb busbar is a power distribution accessory used in electrical distribution boards.
Made from high-conductivity copper with a tin-plated surface for corrosion resistance it enables multiple MCBs to be connected through a single power input providing a safer cleaner and more efficient wiring solution.
How does it work?
✔ Centralized Power Distribution
Instead of connecting a separate incoming wire to each circuit breaker only one main power cable is connected to the busbar. The copper conductor then distributes power evenly to all connected MCBs significantly reducing wiring time and installation complexity.
✔ Reliable and Safe Connection
The highly conductive copper busbar ensures stable power distribution minimizes contact resistance reduces heat generation and improves overall system reliability. It also makes future maintenance and circuit expansion faster and more convenient.
