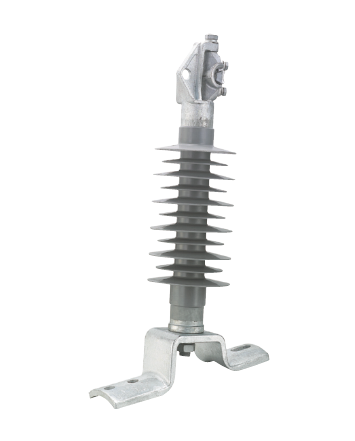

SCHI POLYMER SUSPENION LINE INSULATOR
SOCOME series products are composed of glass fiber epoxide resin core rod ,sliastic shed and metal fittings.The silastic shed adopt the whole packing pressure thchique,and then to solve the key problem-interface electric spark puncture,which would affect the reliability of composite insulator,connection of the glass fiber rod and metal small volume,light weight,and the fittings,high intension,beatutiful outline,metal fitting of galvaniazation can corrosion prevention and exchange used with porcelain insulator,this product is reliable structure,cannot damage the core rod,and take full advantage of the mechanical strength.

Brand：SOCOME
Model：SCHI
Material: High temperature vulcanized silicone rubber(HTV silicon rubber)
Certificate: IEC/CE/ISO
Application: Automotive, electric power, connecting cable
Type: Insulator
Rated Voltage: 15kv-220kv
Rated Load: 70-100kn
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered INQUIRY

Selection Guide
(Line Voltage)
kV		 Catalogue
Code(♦)		 Specified
Cantilever Load
kN		 N° of Sheds
An°(1)		 Length
L±5
mm		 Leakage
distance
mm		 Dry arc
distance
mm		 Power frequency
withstand
50Hz		 Lightning impul.
withstand
12/50		 Weight
kg
Dry
kV		 Wet
kV		 posit.
kV		 negat.
kV
12 SCHI 10 2+1 365 390 165 70 65 115 160 6.5
17 SCHI 8.4 3+2 420 585 225 110 100 150 190 7
24 SCHI 7.2 4+3 480 780 285 120 110 180 215 7.5
36 SCHI 6.3 5+4 540 975 340 150 140 235 270 8
45 SCHI 5.5 6+5 600 1170 400 170 155 270 300 8.5
52 SCHI 5 7+6 660 1365 460 180 165 285 325 9
52 SCHI 4.5 8+7 715 1560 520 200 185 305 355 9.5
52 SCHI 4.2 9+8 775 1755 575 225 210 345 405 10


Polymer Suspension Insulator applications of Composite Suspension Insulators:

1.Medium and high voltage overhead transmission and distribution power lines of power grids.

2.Severe pollution areas including coastal salt fog zonesindustrial factories and humid mountain regions.

3. Special power project such as wind farmselectrified railways and long-span crossing transmission lines.








Selection Guide
(Line Voltage)
kV		 Catalogue
Code(♦)		 Specified
Cantilever Load
kN		 N° of Sheds
An°(1)		 Length
L±5
mm		 Leakage
distance
mm		 Dry arc
distance
mm		 Power frequency
withstand
50Hz		 Lightning impul.
withstand
12/50		 Weight
kg
Dry
kV		 Wet
kV		 posit.
kV		 negat.
kV
12 SCHI 10 2+1 365 390 165 70 65 115 160 6.5
17 SCHI 8.4 3+2 420 585 225 110 100 150 190 7
24 SCHI 7.2 4+3 480 780 285 120 110 180 215 7.5
36 SCHI 6.3 5+4 540 975 340 150 140 235 270 8
45 SCHI 5.5 6+5 600 1170 400 170 155 270 300 8.5
52 SCHI 5 7+6 660 1365 460 180 165 285 325 9
52 SCHI 4.5 8+7 715 1560 520 200 185 305 355 9.5
52 SCHI 4.2 9+8 775 1755 575 225 210 345 405 10


Polymer Suspension Insulator applications of Composite Suspension Insulators:

1.Medium and high voltage overhead transmission and distribution power lines of power grids.

2.Severe pollution areas including coastal salt fog zonesindustrial factories and humid mountain regions.

3. Special power project such as wind farmselectrified railways and long-span crossing transmission lines.
