Coupling Driving Head and Driving Tip
Coupling Driving Head and Driving Tip

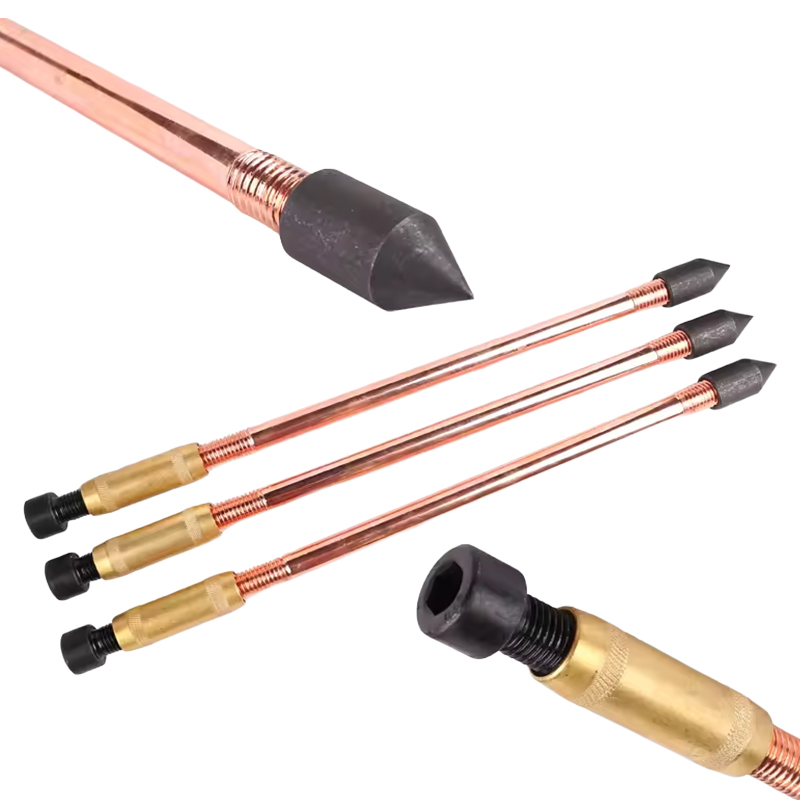

Copper Earth Coupling joins lengths of threaded copper bond earth rods together. They facilitate deep driving and ensure continual contact between the rods during and after driving.
The coupling also protects the earth rod threads during installation with the driving head.
Earth Rods and their accessories provide high fault current capacity for LV, MV, and HV substations, towers, and other distribution applications. They can be used for both overhead and underground networks to achieve optimum earthing for distribution and transmission.
Model: CC/DS/DS
Application: for connecting threaded earth rod
For rod Dia.: 12.7mm, 14.2mm, 17.2mm
Thread: 1/2", 5/8", 3/4"
INQUIRY

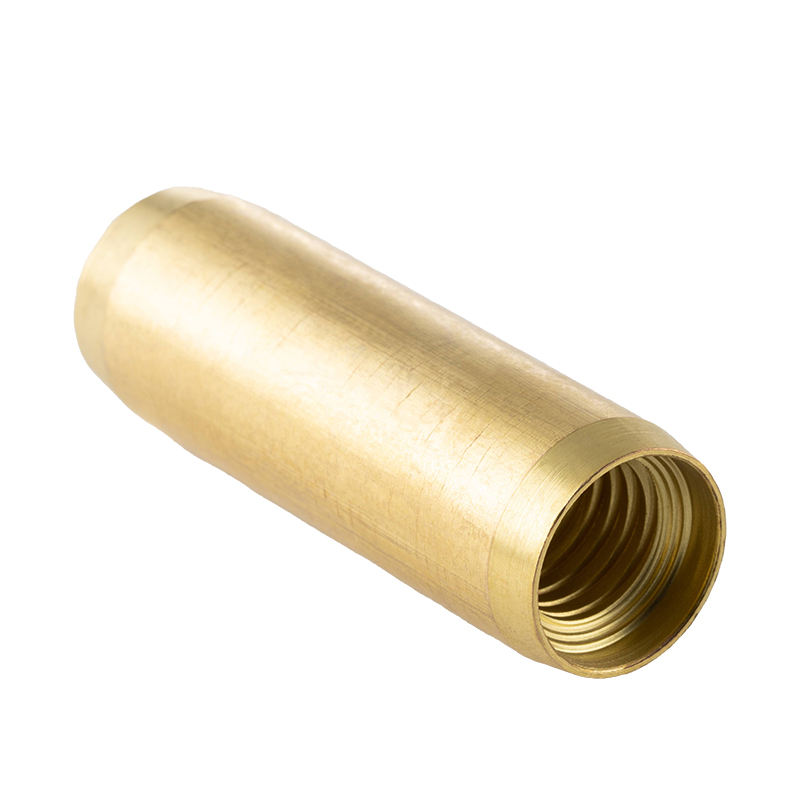

| Brass Coupling | ||
| Part No. | Thread | Suitable for Rod Dia |
| CC12 | 1/2" | 12.7mm |
| CC16 | 5/8" | 14.2mm |
| CC19 | 3/4" | 17.2mm/19mm |

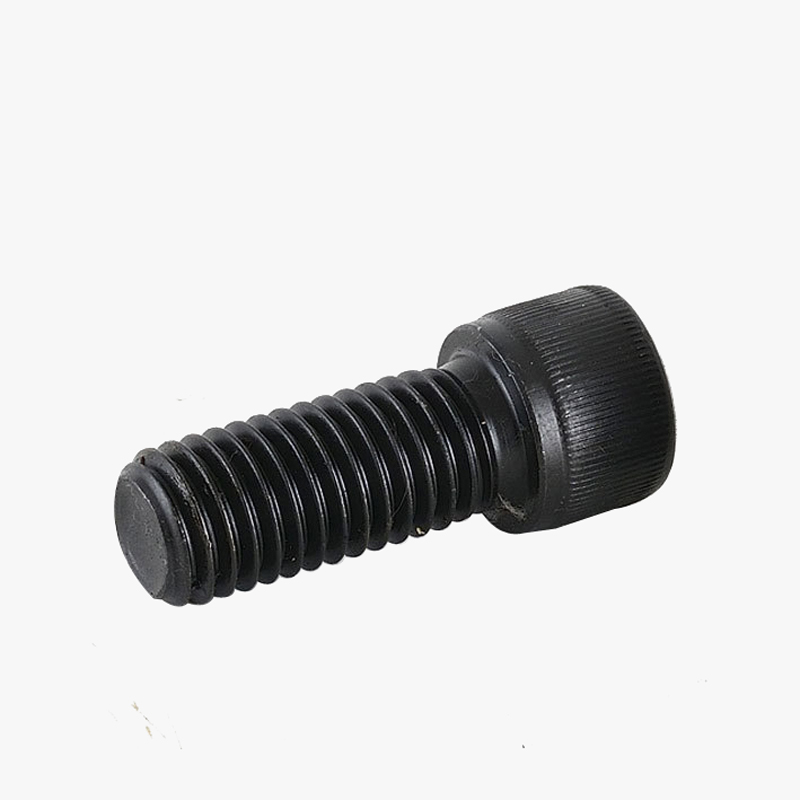

| Driving Head | ||
| Part No. | Thread | Suitable for Rod Dia |
| DH12 | 1/2" | 12.7mm |
| DH16 | 5/8" | 14.2mm |
| DH19 | 3/4" | 17.2mm/19mm |

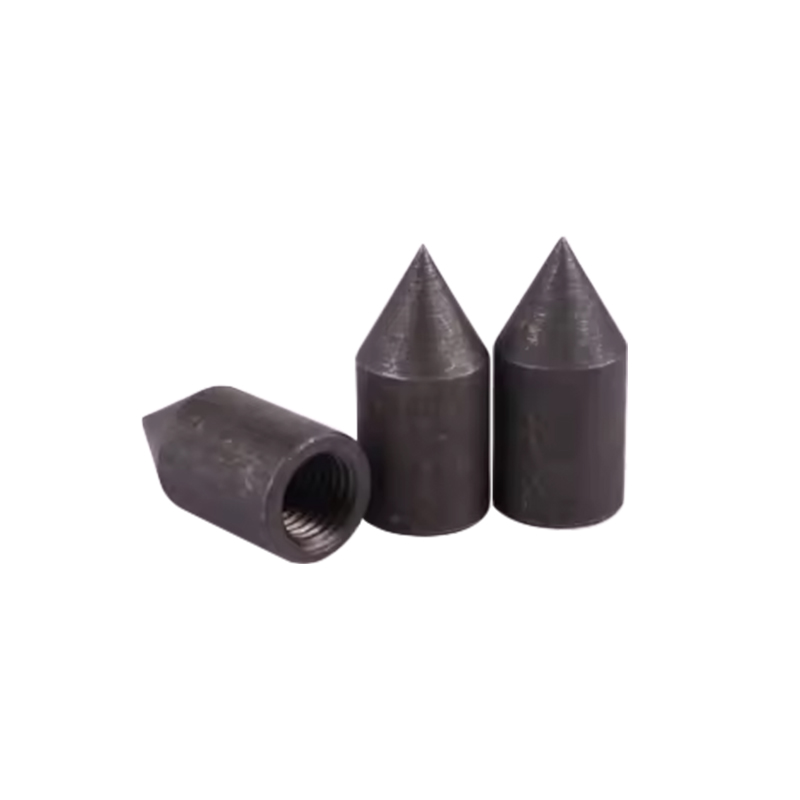

| Driving Tip | ||
| Part No. | Thread | Suitable for Rod Dia |
| DS12 | 1/2" | 12.7mm |
| DS16 | 5/8" | 14.2mm |
| DS19 | 3/4" | 17.2mm/19mm |
 |
 |
