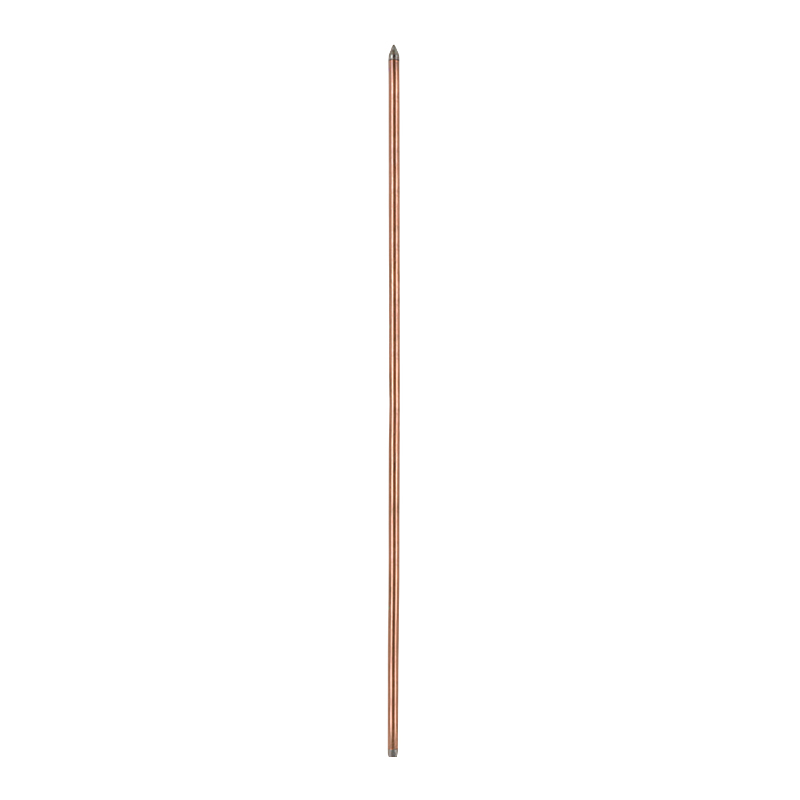

Copper Bonded Stainless Steel Earth Rod(Non Magnetic)
Copper Bonded Stainless Steel Earth Rod(Non Magnetic)
Copper plated stainless steel ground rod made of high-quality stainless steel, surface electrical plating 99.99% pure copper. A kit includes rod, driving head, and driving spike.
Copper plated stainless steel ground rod, have good electrical conductivity, no magnetic, and pure copper grounding rod compared it is more economical.
Standard: BS EN 50164-2. BS7430. UL467
Mode: SER
Material: 99.9% Electronic Copper Stainless Steel
Process: Electroplating

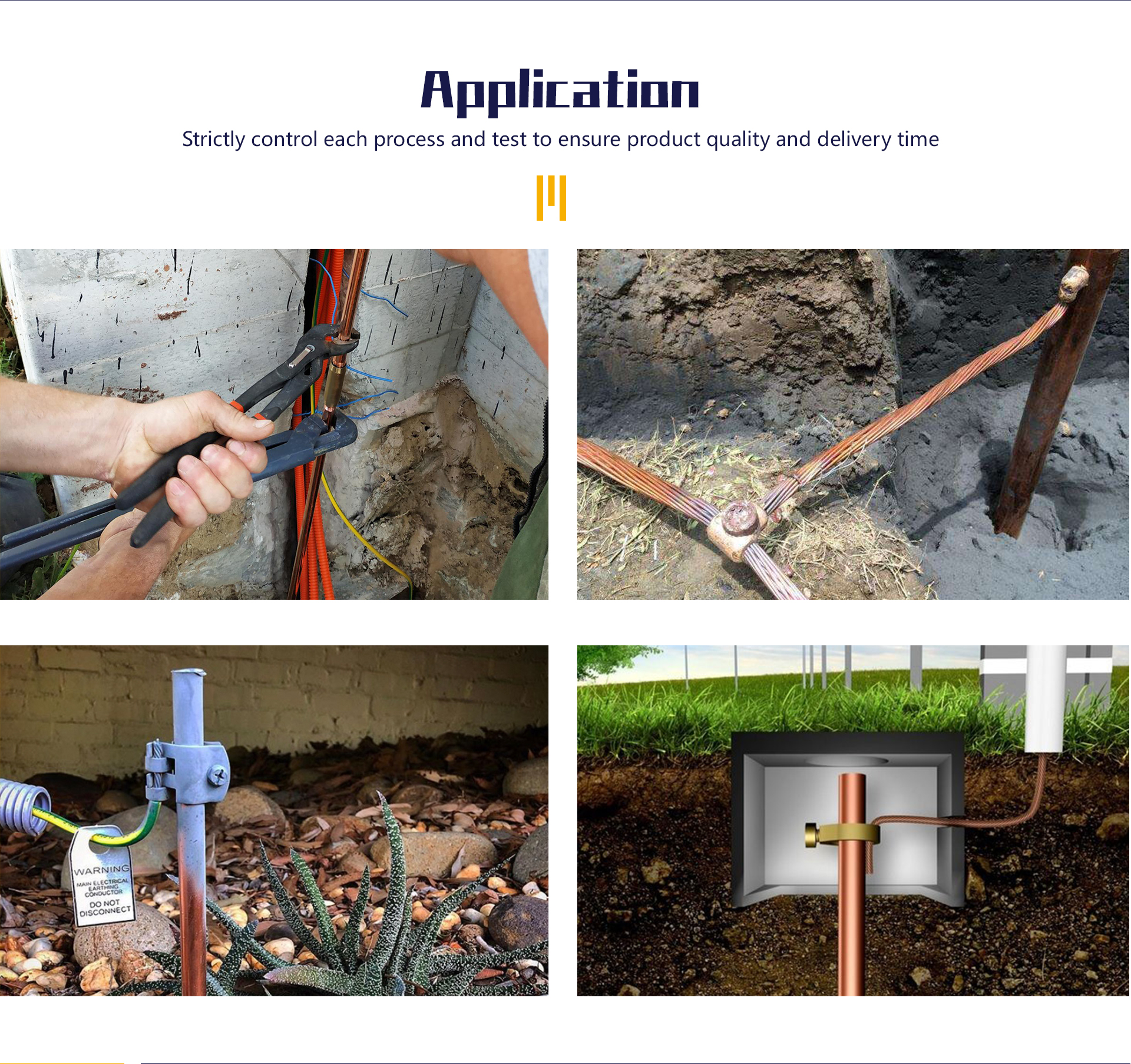

Application: Grounding System
Standard Dia.: 11mm, 12mm, 13mm, 14mm, 16mm
Length: 1200mm, 1500mm, 1800mm
INQUIRY
| Part No. |
Norminal Diameter (mm) |
Length (mm) |
Weight (kg) |
| SER1112 | 11 | 1200 | 0.91 |
| SER1212 | 12 | 1200 | 1.08 |
| SER1312 | 13 | 1200 | 1.27 |
| SER1412 | 14 | 1200 | 1.47 |
| SER1615 | 16 | 1500 | 2.4 |
Copper Bonded Stainless Steel Earth Rod(Non Magnetic)
Copper plated stainless steel ground rod made of high-quality stainless steel surface electrical plating 99.99% pure copper. A kit includes rod driving head and driving spike.
Copper plated stainless steel ground rod have good electrical conductivity no magnetic and pure copper grounding rod compared it is more economical.
Standard: BS EN 50164-2. BS7430. UL467
Copper plated stainless steel ground rod made of high-quality stainless steel surface electrical plating 99.99% pure copper. A kit includes rod driving head and driving spike.
Copper plated stainless steel ground rod have good electrical conductivity no magnetic and pure copper grounding rod compared it is more economical.
Standard: BS EN 50164-2. BS7430. UL467
| Part No. |
Norminal Diameter (mm) |
Length (mm) |
Weight (kg) |
| SER1112 | 11 | 1200 | 0.91 |
| SER1212 | 12 | 1200 | 1.08 |
| SER1312 | 13 | 1200 | 1.27 |
| SER1412 | 14 | 1200 | 1.47 |
| SER1615 | 16 | 1500 | 2.4 |
Copper Bonded Stainless Steel Earth Rod(Non Magnetic)
Copper plated stainless steel ground rod made of high-quality stainless steel surface electrical plating 99.99% pure copper. A kit includes rod driving head and driving spike.
Copper plated stainless steel ground rod have good electrical conductivity no magnetic and pure copper grounding rod compared it is more economical.
Standard: BS EN 50164-2. BS7430. UL467
Copper plated stainless steel ground rod made of high-quality stainless steel surface electrical plating 99.99% pure copper. A kit includes rod driving head and driving spike.
Copper plated stainless steel ground rod have good electrical conductivity no magnetic and pure copper grounding rod compared it is more economical.
Standard: BS EN 50164-2. BS7430. UL467
