Home > Products > Earth System & Lightning Protection > Air Rod Base > Air Rod base

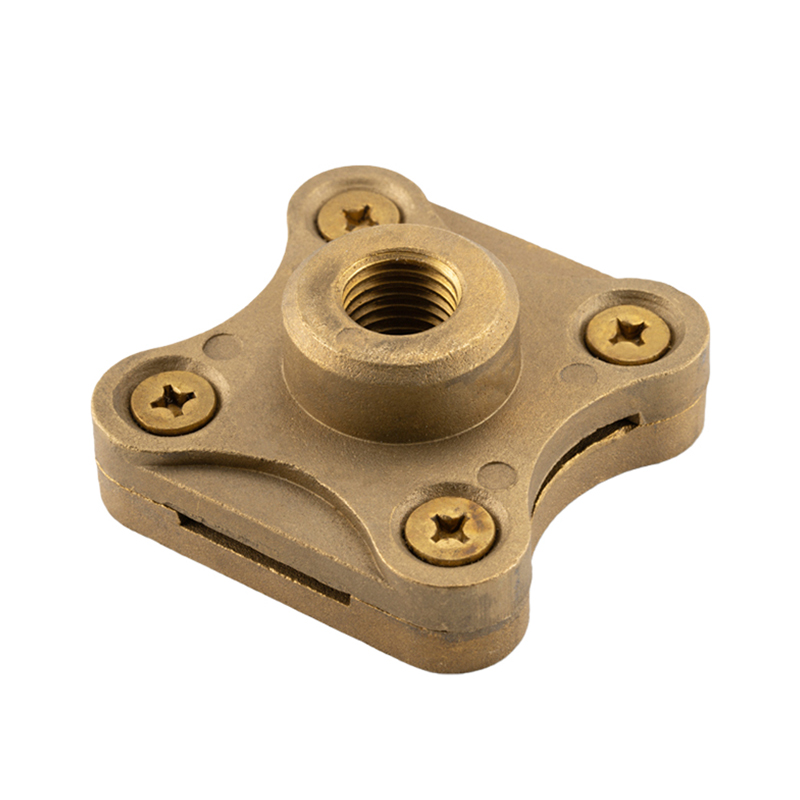

Air Rod base
Air Rod Base

Model: DC
Material: Brass/Aluminium
Application: lightning protection system
For Rod Dia.: 14mm, 15mm, 16mm INQUIRY
Part No. Rod Dia. (mm) Thread Dia. (mm) Max Conductor Width (mm) Material
DC314 14 16 (5/8") 25 Brass
DC515 15 16 25 Brass
DC314 14 16 (5/8") 25 Aluminium
DC515 15 16 25 Aluminium


Part No. Rod Dia. (mm) Thread Dia. (mm) Max Conductor Width (mm) Material
DC314 14 16 (5/8") 25 Brass
DC515 15 16 25 Brass
DC314 14 16 (5/8") 25 Aluminium
DC515 15 16 25 Aluminium
