High-Voltage Insulation · Smart Power Distribution · Industrial Frequency Conversion.
Insulator-SM
SM Series Busbar Insulator, a crucial component in electrical distribution (like cabinets, inverters) used to physically support, fix, and electrically isolate conductive busbars (copper/aluminum strips) from each other and the casing, preventing short circuits using strong, heat-resistant resin materials (like polyester/epoxy) and often coming with screws for mounting.
Model: SM
Material: BMC(Bough Moulding Compound)
Insert: Brass. Steel with Zn coating
Operation Temperature: -40℃~+140℃
INQUIRY
| Picture | Part No. | Screw |
 |
SM20 | M6 |
| SM25 | M6/M8 | |
| SM30 | M6/M8 | |
| SM35 | M8/M10 | |
| SM40 | M8/M10 | |
| SM51 | M8/M10 | |
| SM60 | M8/M10 | |
| SM76 | M10 |
Material: The busbar insulators are made of high-quality BMC material with good insulation good electrical performance and mechanical strength anti-aging and lasting.

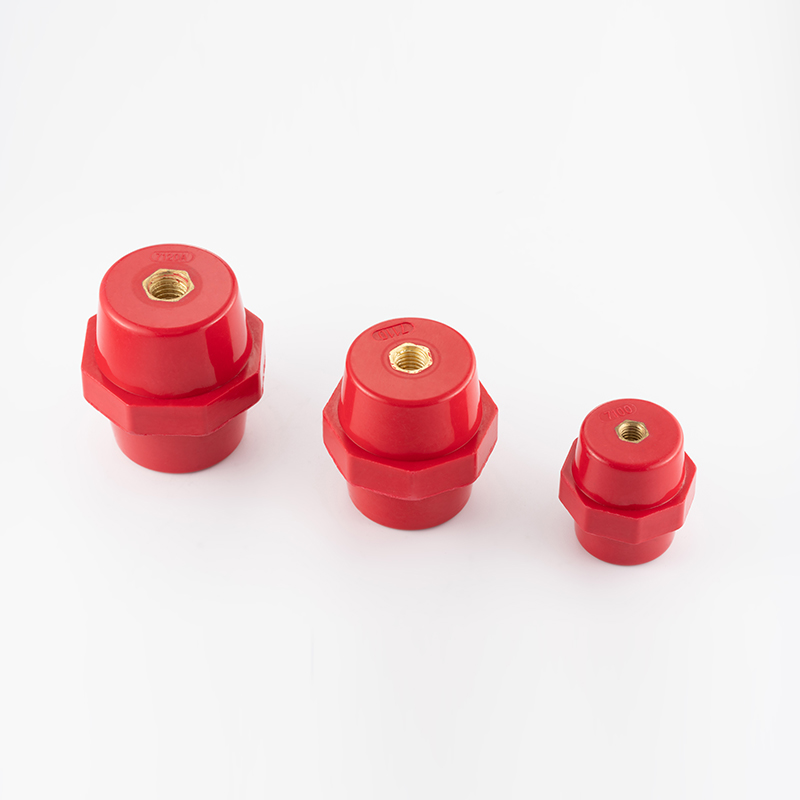

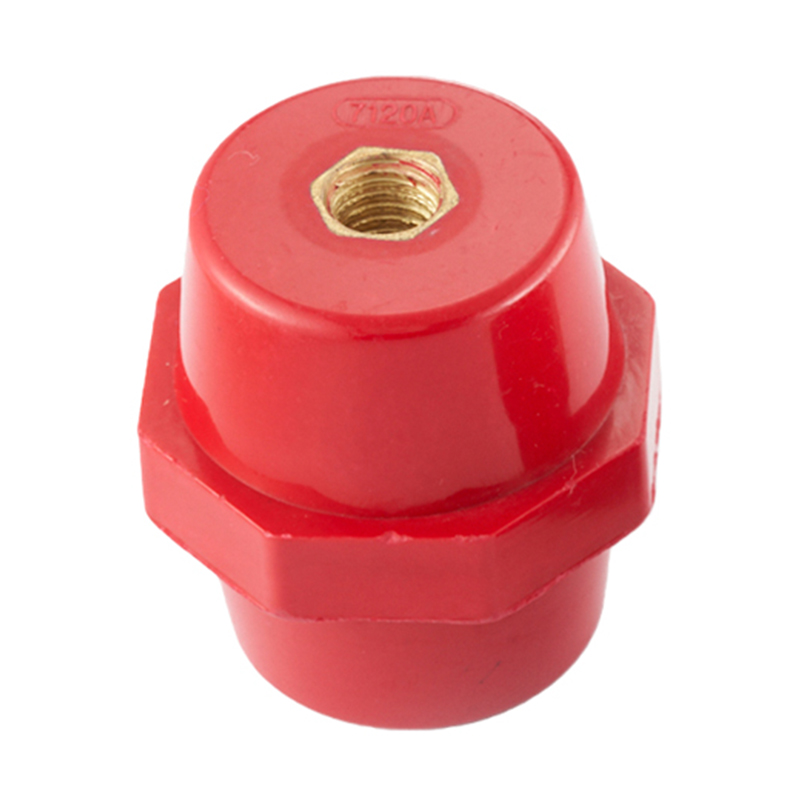

Appearance: The busbar insulator is cylindrical in shape with a screw hole at each end to fix the line to be connected.
Easy Installation: The busbar insulator uses scientific and reasonable structure design and has standardized threaded connections making installation and replacement quick and easy.

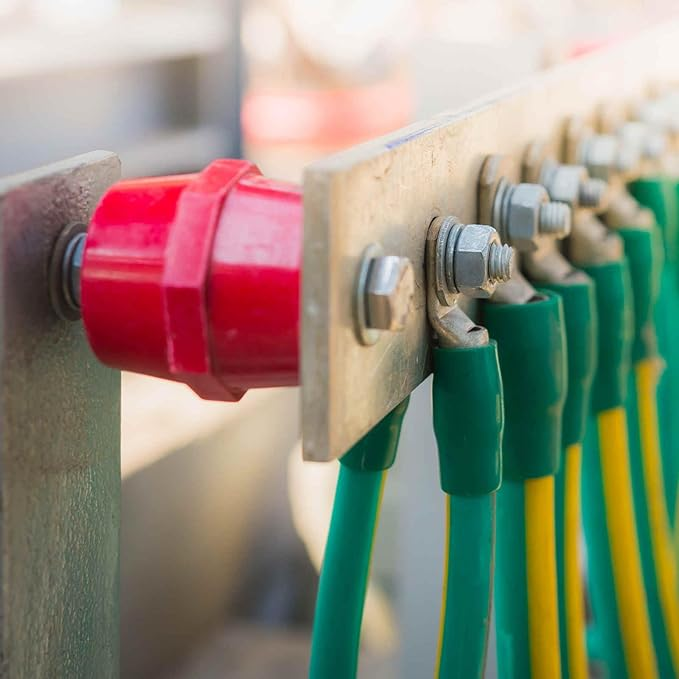

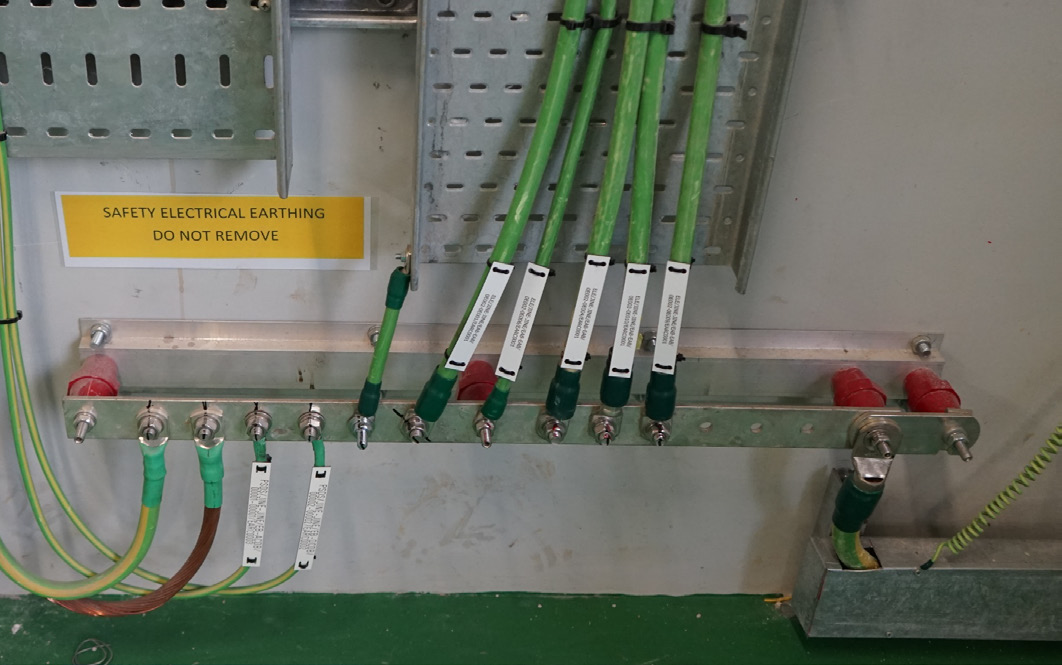

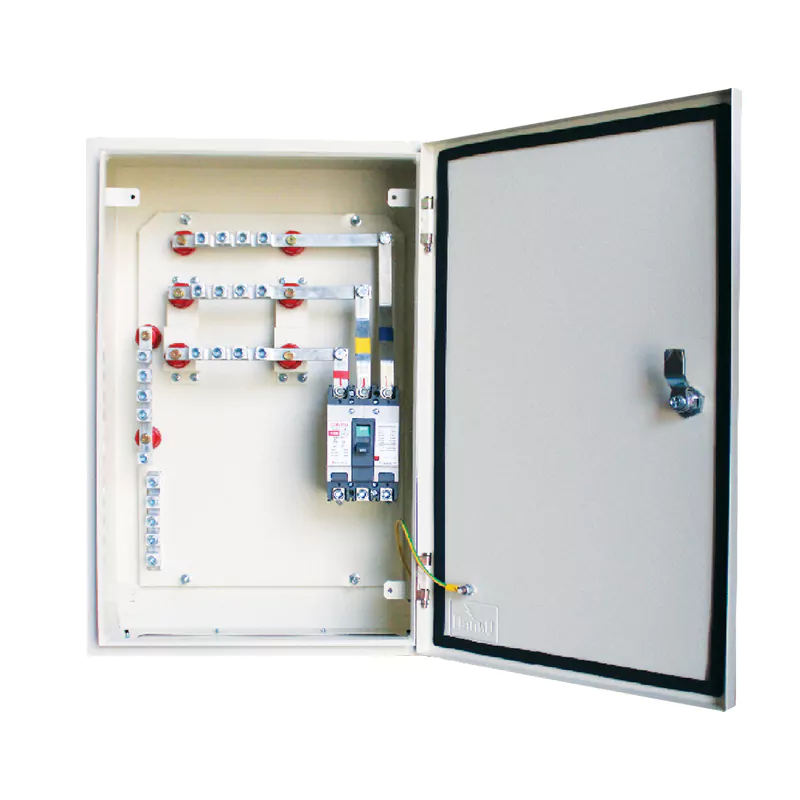

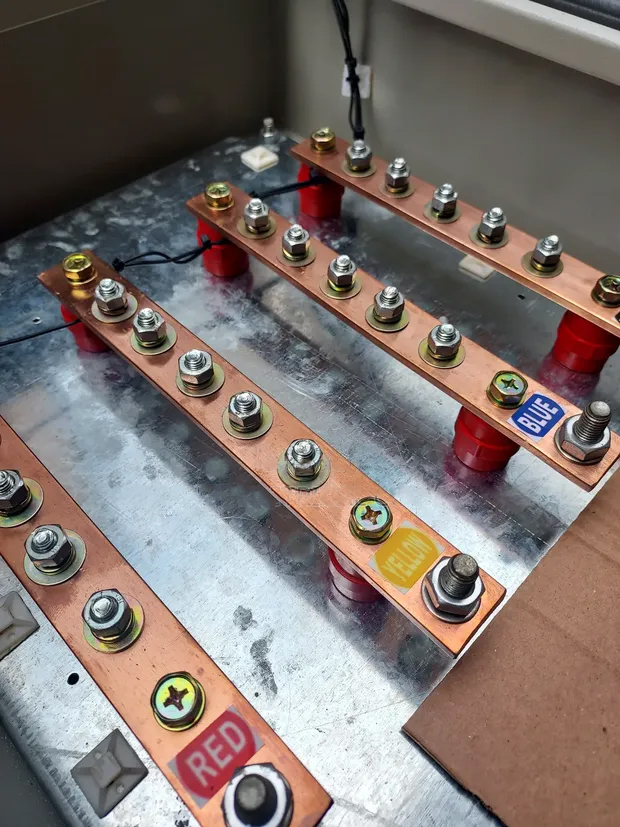

Wide Application: Widely used in high and low power distribution cabinets. For power distribution transmission fixing copper or aluminum busbars playing the role of insulation and connection.
We have exported to 50 countries and obtained positive feedback and praises. Our professional technical and sales team also equipped with rich operation experience.
Strict inspection of product quality before shipment and track the life of the product. We also have passed ISO CE ROHS Certifications.
Good faith to the customer is our operating purposes. According to the requirements of customers we strictly request the delivery time of contracts making sure we delivery on time.
Sample for your reference available. We offer samples without sample fee. If you want to customize special one the sample fee will be happened.
Offer OEM Customized Service and best aftersales services for customer. Anything about our company and products free to contact us and we will try our best to help you out.
