Earth Bar
Product Information:

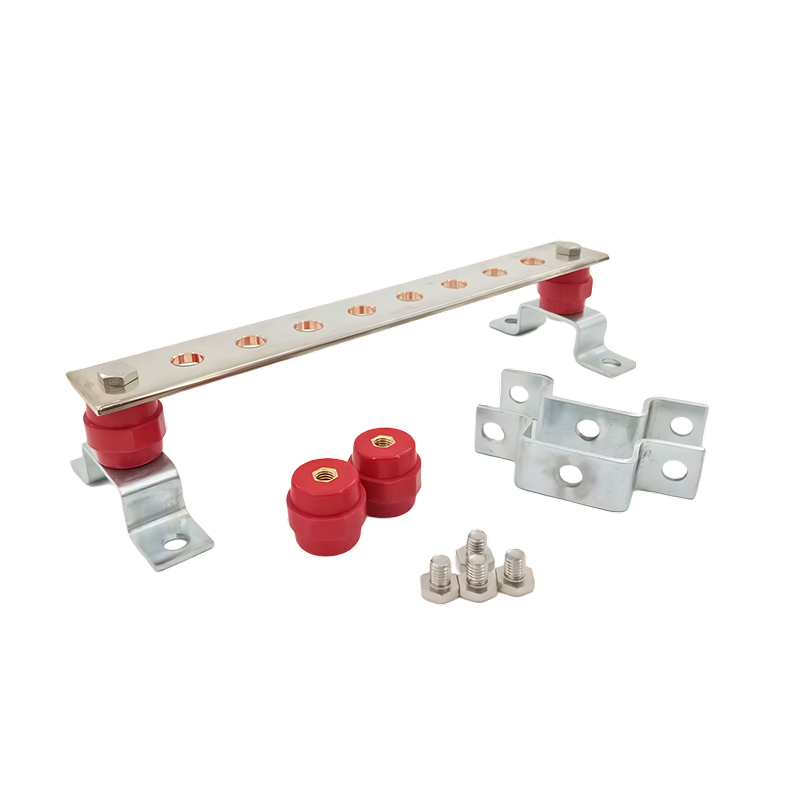

Standard Earth Bars are an efficient and convenient way of providing a common earth point.
Available in copper and tinned copper.
Brass bolts are provided as standard for plain copper bars. Stainless steel bolts are provided as standard for tinned copper bars.
Model: EB/EBC
Material: Copper/Tinned Copper
Type: 6ways, 8ways, 10ways, 12ways
INQUIRY
| Pictures | Part No. | No.Terminations | Dimension(mm) | |||
| Length | Width | Thickness | ||||
 |

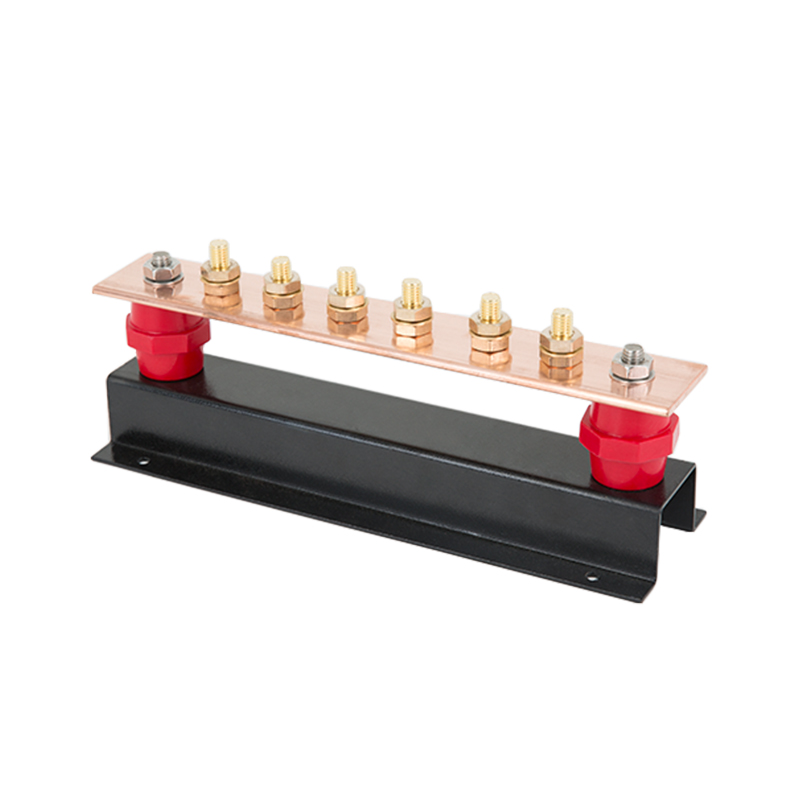

EB6 | one whole Stand-off | 6 | 300 | 50 | 5 |
| EB6 | 6 | 300 | 50 | 6 | ||
| EB8 | 8 | 370 | 50 | 5 | ||
| EB9 | 9 | 410 | 50 | 5 | ||
| EB10 | 10 | 440 | 50 | 5 | ||
| EB12 | 12 | 500 | 50 | 5 | ||
 |

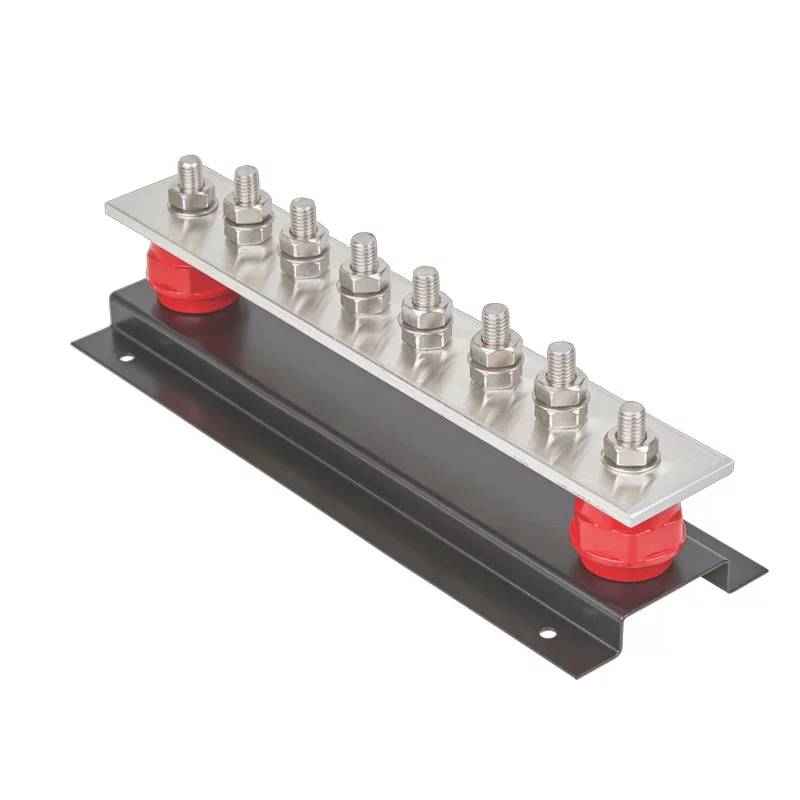

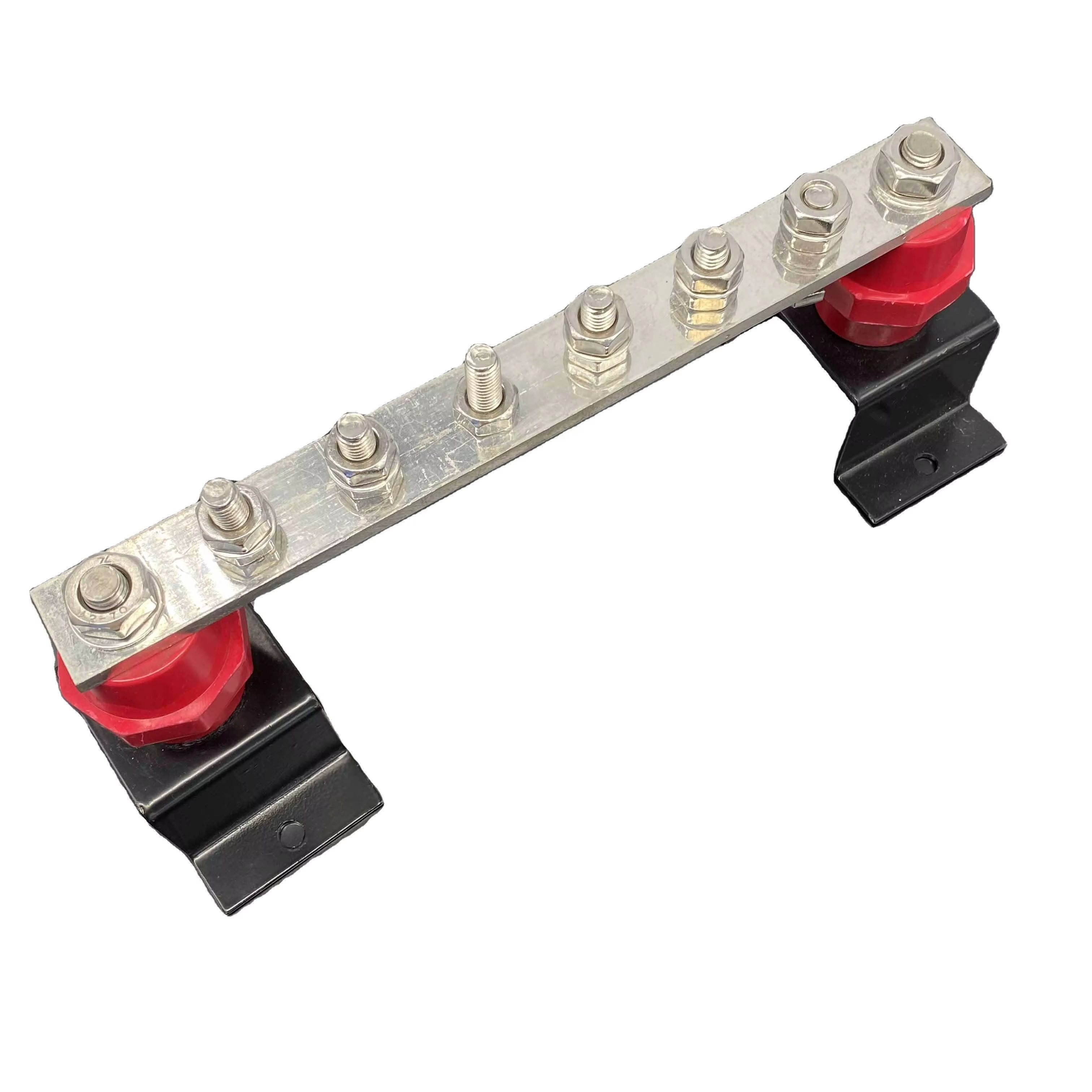

EB6 | Two sides Single Stand-off | 6 | 300 | 50 | 6 |
| EB8 | 8 | 370 | 50 | 5 | ||
| EB9 | 9 | 410 | 50 | 5 | ||
| EB10 | 10 | 440 | 50 | 5 | ||
| EB12 | 12 | 500 | 50 | 5 | ||
| Other sizes are available on request. | ||||||
