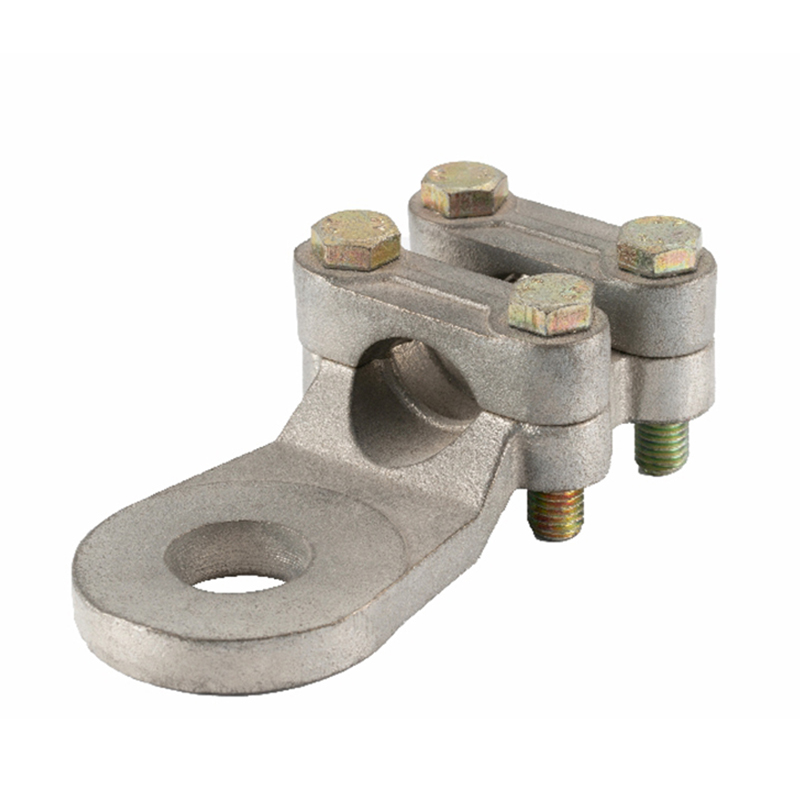

Mechanical Copper Cable Clamp
Mechanical Copper Cable Clamp

Model: WCJC
Material: Brass
Surface Treatment: Tin plating
Application: Grounding System INQUIRY

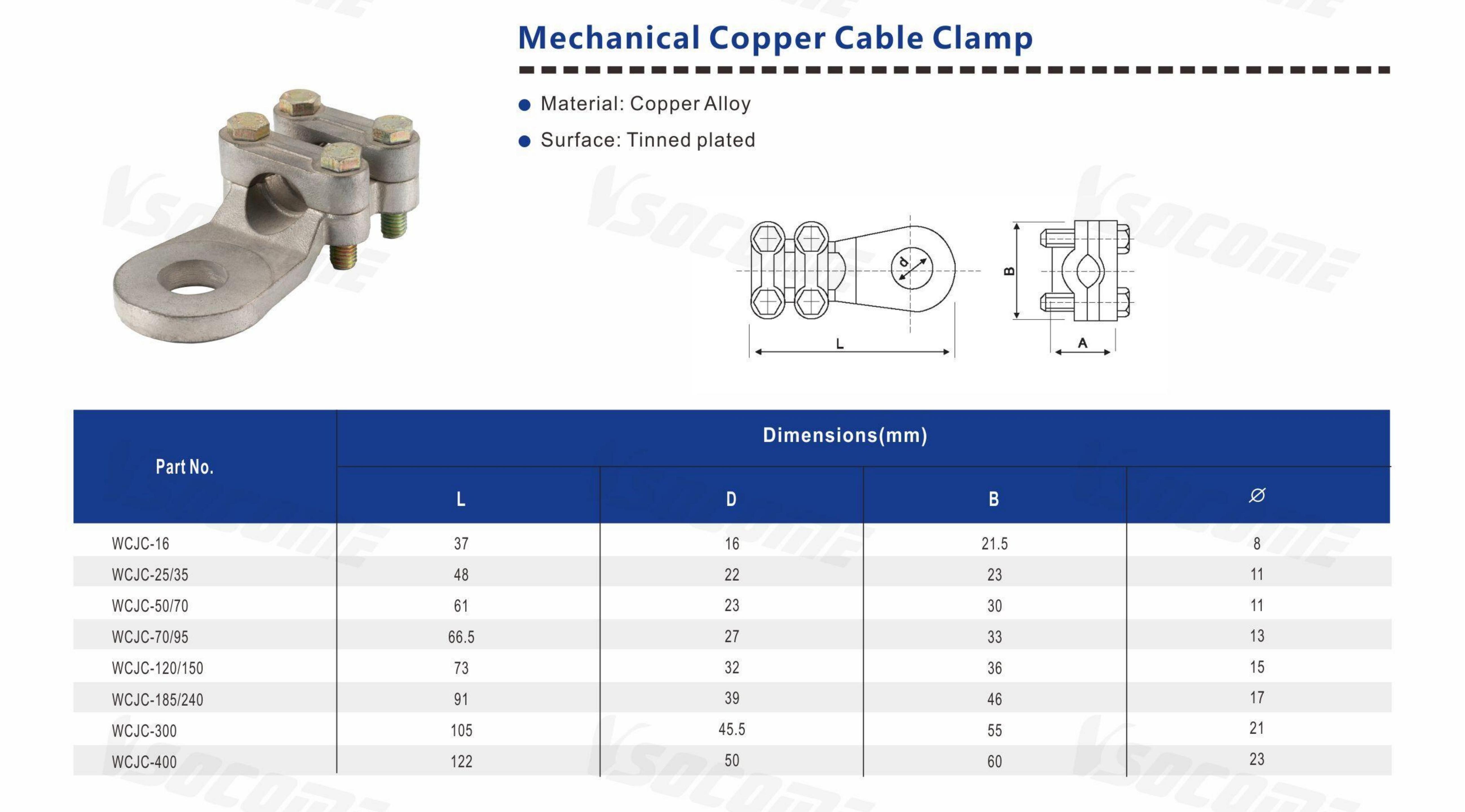

Part No. Dimensions(mm)
L D B Ø
WCJC-16 37 16 21.5 8
WCJC-25/35 48 22 23 11
WCJC-50/70 61 23 30 11
WCJC-70/95 66.5 27 33 13
WCJC-120/150 73 32 36 15
WCJC-185/240 91 39 46 17
WCJC-300 105 45.5 55 21
WCJC-400 122 50 60 23

Part No. Dimensions(mm)
L D B Ø
WCJC-16 37 16 21.5 8
WCJC-25/35 48 22 23 11
WCJC-50/70 61 23 30 11
WCJC-70/95 66.5 27 33 13
WCJC-120/150 73 32 36 15
WCJC-185/240 91 39 46 17
WCJC-300 105 45.5 55 21
WCJC-400 122 50 60 23
