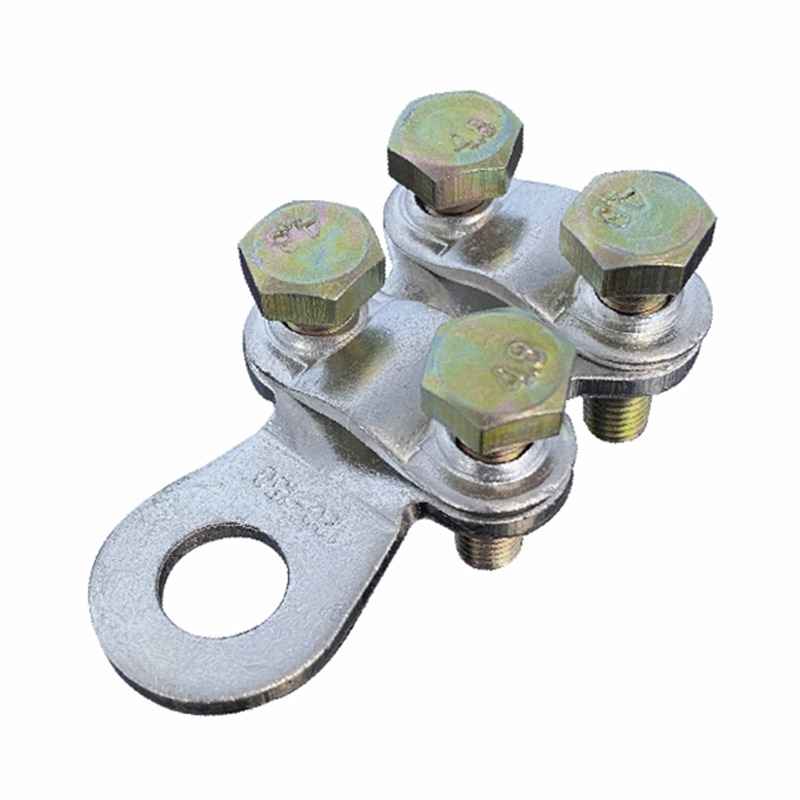

Mechanical Copper Cable Clamp
Mechanical Copper Cable Clamp

Model: WCJB
Material: Copper
Surface Treatment: Tin plating
Application: Grounding System INQUIRY

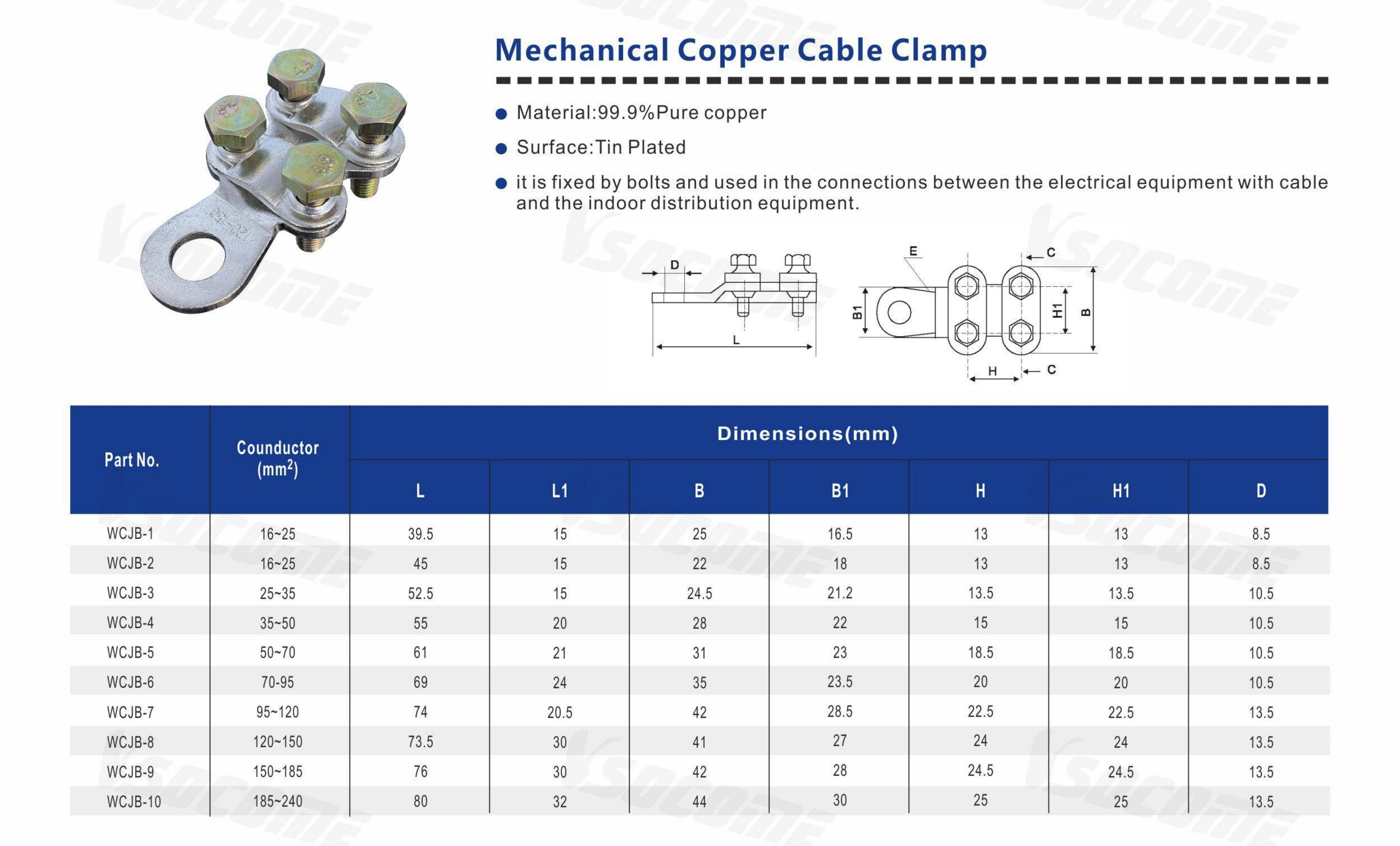

Part No. Conductor (mm²) Dimensions(mm)
L L1 B B1 H H1 D
WCJB-1 16-25 39.5 15 25 16.5 13 13 8.5
WCJB-2 16-25 45 15 22 18 13 13 8.5
WCJB-3 25-35 52.5 15 24.5 21.2 13.5 13.5 10.5
WCJB-4 35-50 55 20 28 22 15 15 10.5
WCJB-5 50-70 61 21 31 23 18.5 18.5 10.5
WCJB-6 70-95 69 24 35 23.5 20 20 10.5
WCJB-7 95-120 74 20.5 42 28.5 22.5 22.5 13.5
WCJB-8 120-150 73.5 30 41 27 24 24 13.5
WCJB-9 150-185 76 30 42 28 24.5 24.5 13.5
WCJB-10 185-240 80 32 44 30 25 25 13.5

Part No. Conductor (mm²) Dimensions(mm)
L L1 B B1 H H1 D
WCJB-1 16-25 39.5 15 25 16.5 13 13 8.5
WCJB-2 16-25 45 15 22 18 13 13 8.5
WCJB-3 25-35 52.5 15 24.5 21.2 13.5 13.5 10.5
WCJB-4 35-50 55 20 28 22 15 15 10.5
WCJB-5 50-70 61 21 31 23 18.5 18.5 10.5
WCJB-6 70-95 69 24 35 23.5 20 20 10.5
WCJB-7 95-120 74 20.5 42 28.5 22.5 22.5 13.5
WCJB-8 120-150 73.5 30 41 27 24 24 13.5
WCJB-9 150-185 76 30 42 28 24.5 24.5 13.5
WCJB-10 185-240 80 32 44 30 25 25 13.5
