Home > Products > Earth System & Lightning Protection > Earthing Bonds and Clamps > Bolted Copper Lug

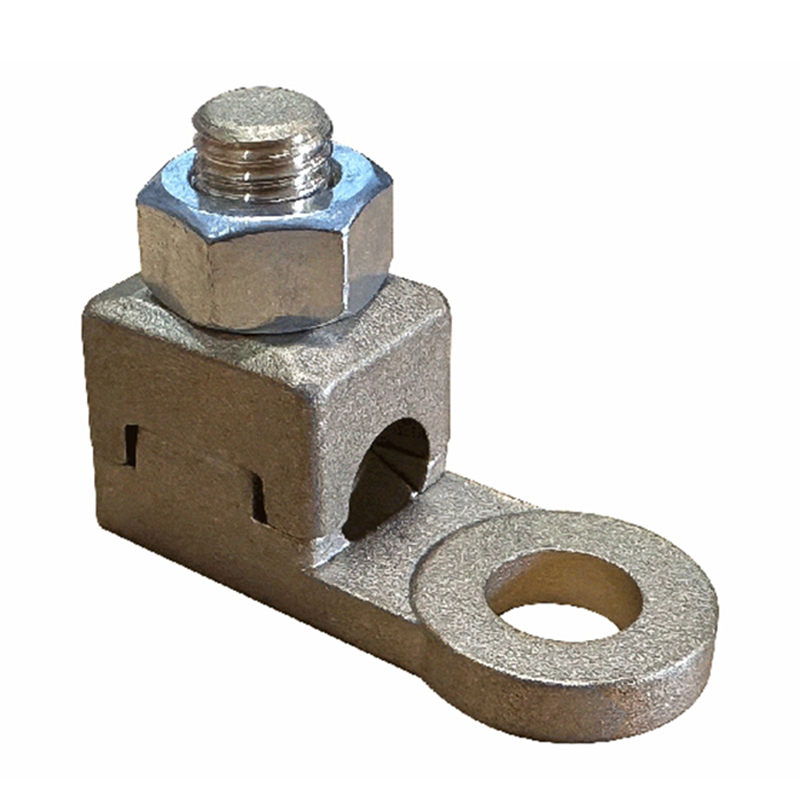

Bolted Copper Lug
Bolted Copper Lug

Model: BCL
Material: Brass
Application: Grounding System INQUIRY
Bolted Copper Lugs
Type Length
(mm)		 Width
(mm)		 Height
(mm)
10-16mm² 28.5 11.5 20.9
25-35mm² 32.6 14 24
50-70mm² 45.3 18 35.4
95mm² 57 21 39
120mm² 66.4 23.4 41.5
150mm² 76 26.6 45

Bolted Copper Lugs
Type Length
(mm)		 Width
(mm)		 Height
(mm)
10-16mm² 28.5 11.5 20.9
25-35mm² 32.6 14 24
50-70mm² 45.3 18 35.4
95mm² 57 21 39
120mm² 66.4 23.4 41.5
150mm² 76 26.6 45
