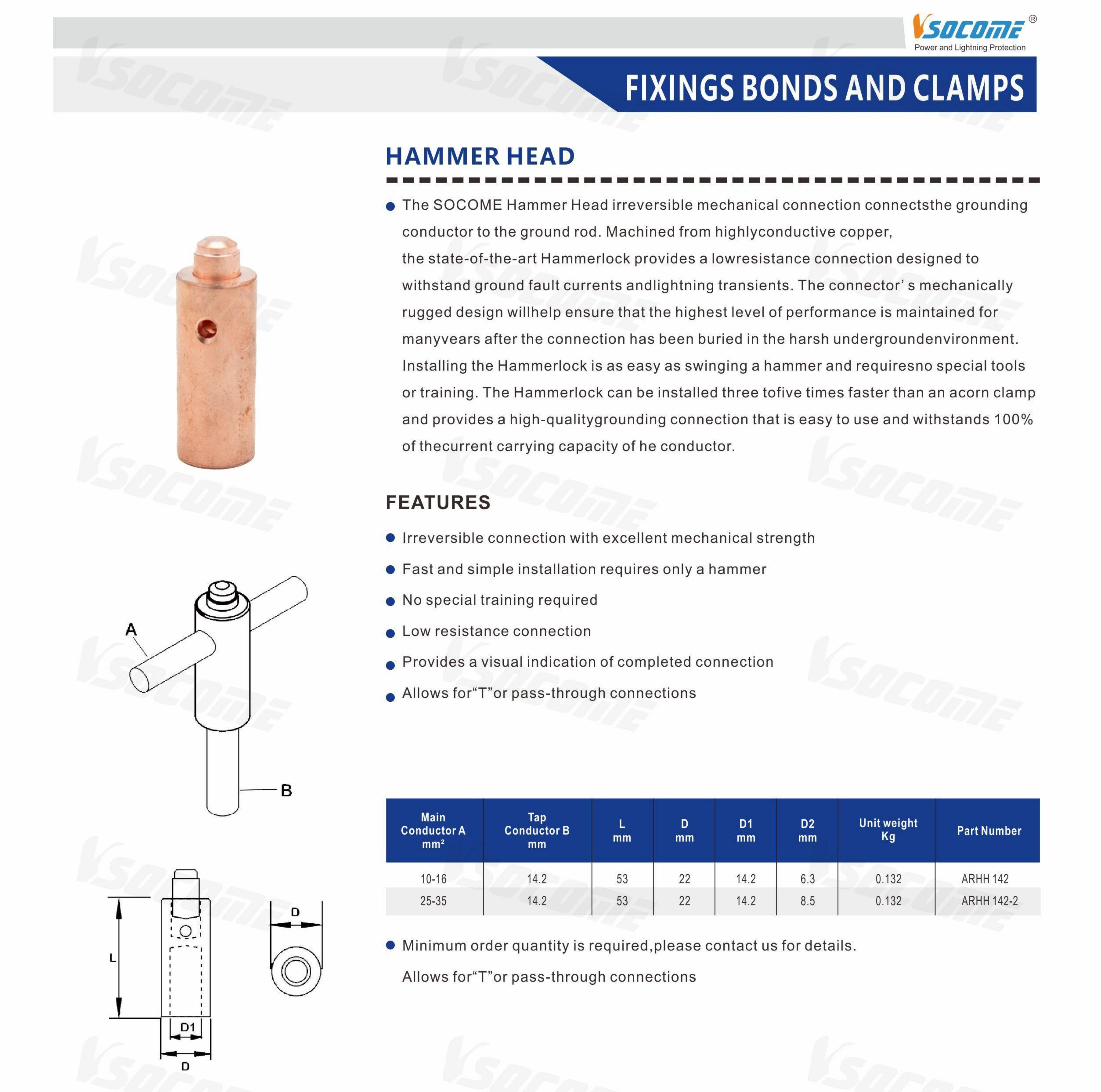

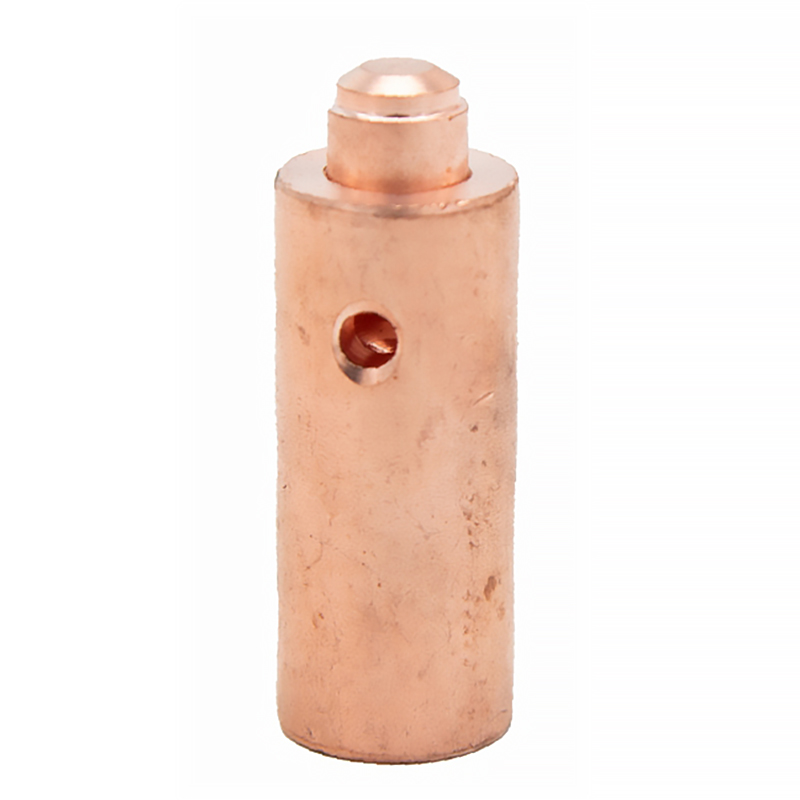

Hammer Head
Hammer Head

Material: Copper
Application: Grounding System INQUIRY
Main Conductor A (mm²) Tap Conductor B (mm) L (mm) D (mm) D1 (mm) D2 (mm) Unit weight (Kg) Part Number
10-16 14.2 53 22 14.2 6.3 0.132 ARHH 142
25-35 14.2 53 22 14.2 8.5 0.132 ARHH 142-2

Main Conductor A (mm²) Tap Conductor B (mm) L (mm) D (mm) D1 (mm) D2 (mm) Unit weight (Kg) Part Number
10-16 14.2 53 22 14.2 6.3 0.132 ARHH 142
25-35 14.2 53 22 14.2 8.5 0.132 ARHH 142-2
