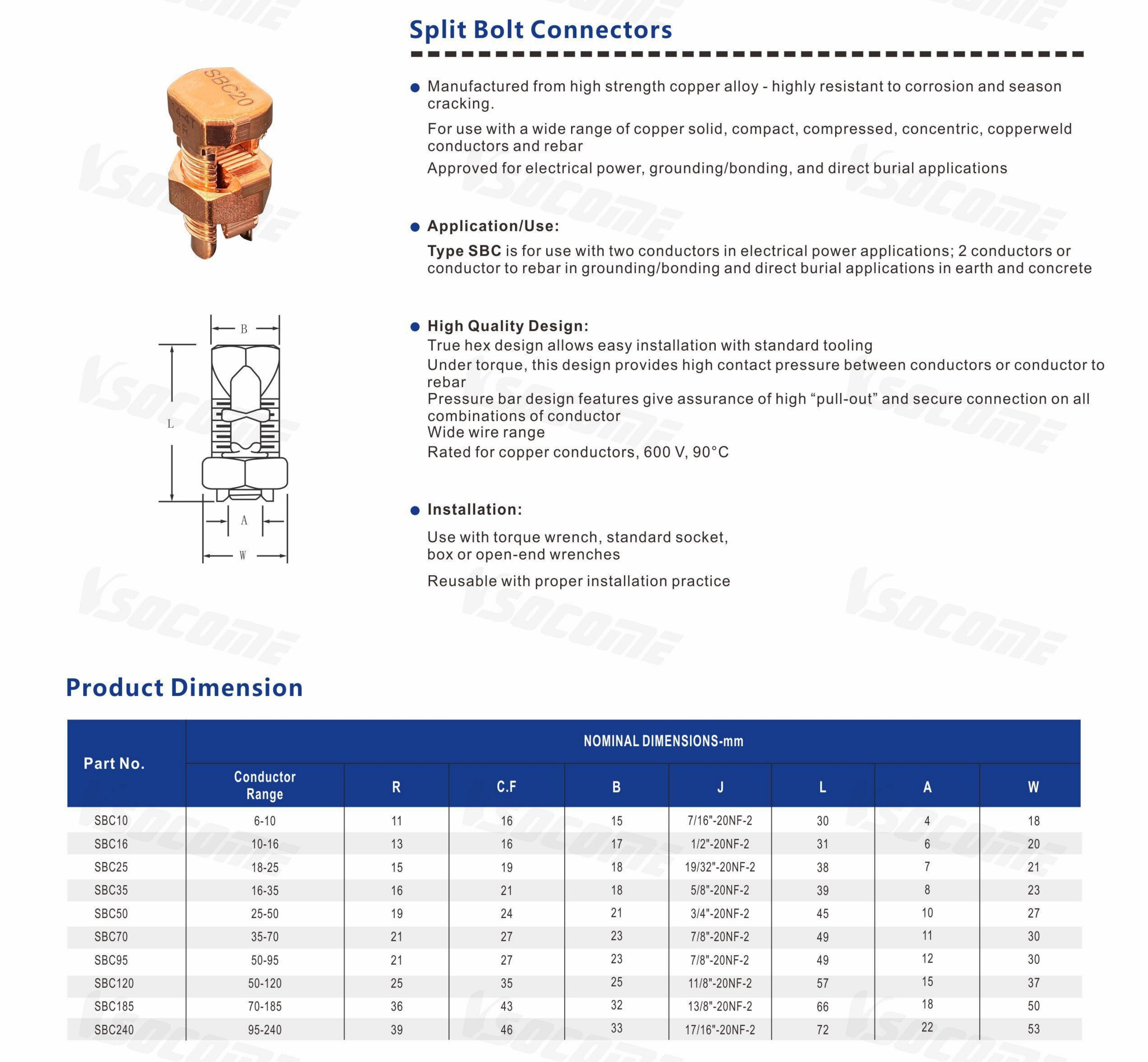

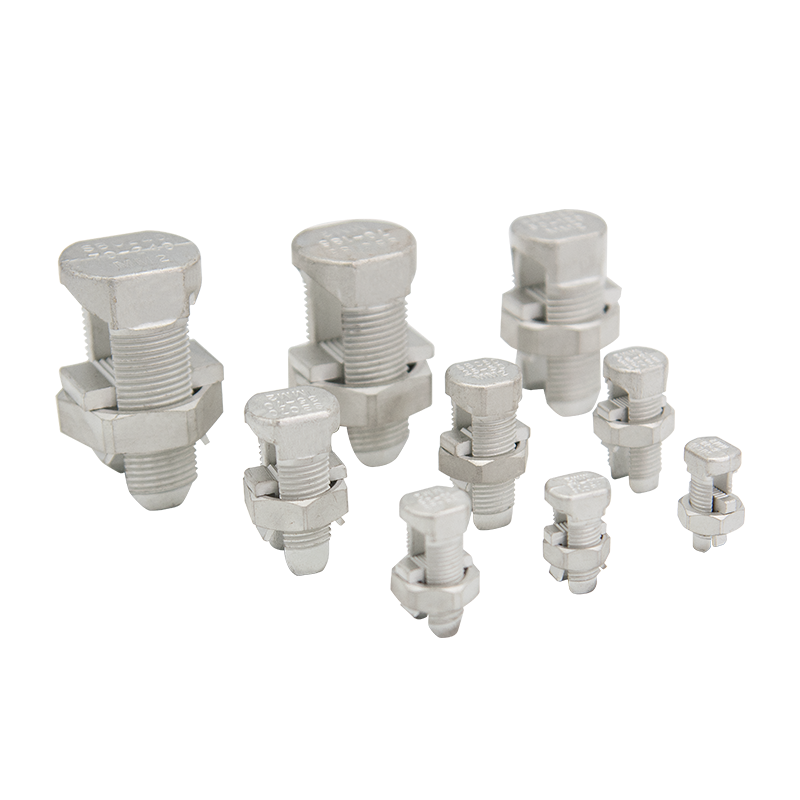

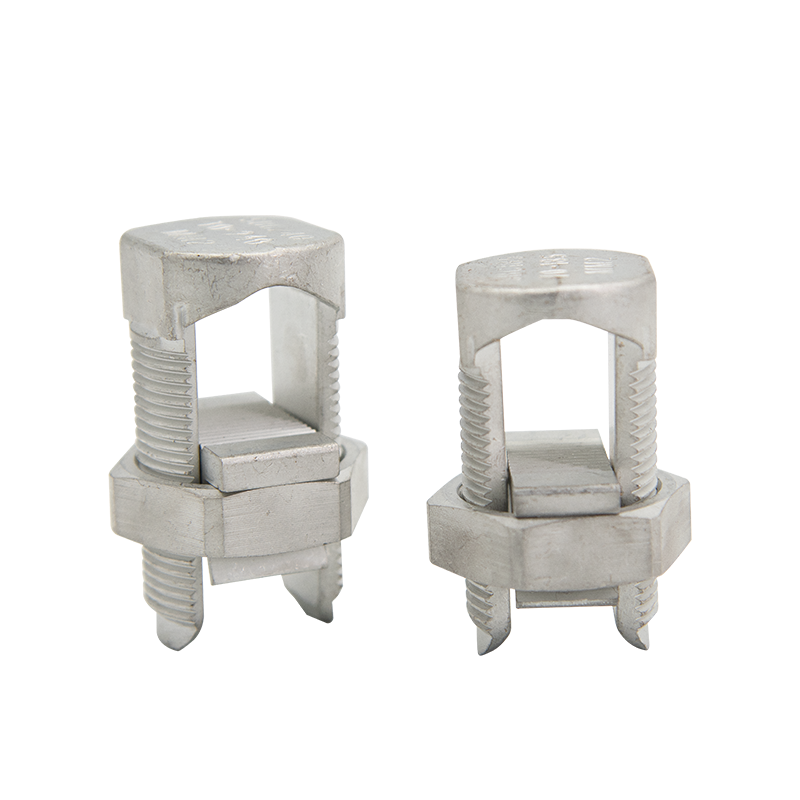

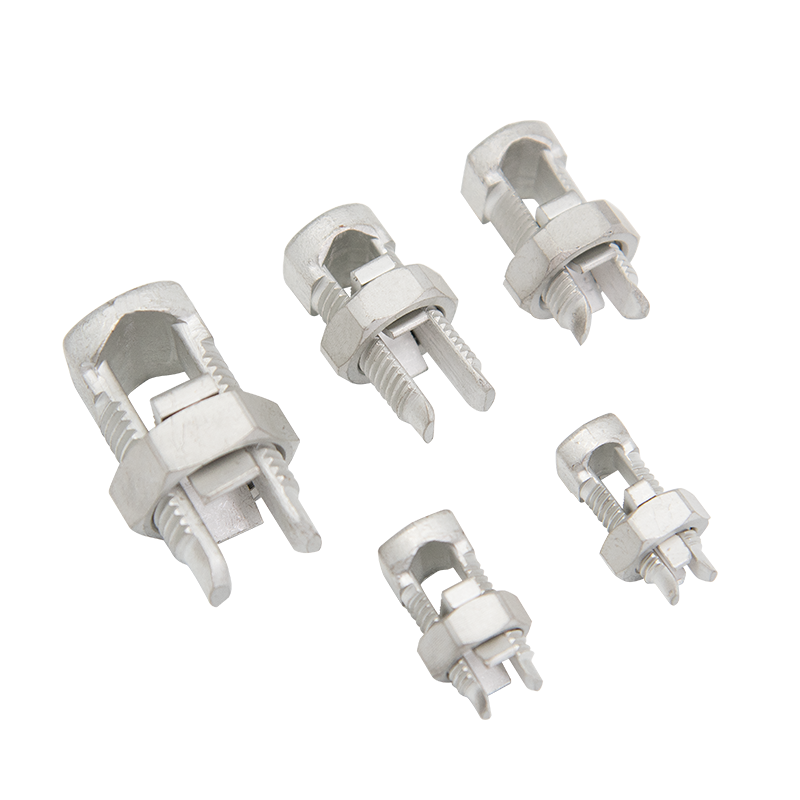

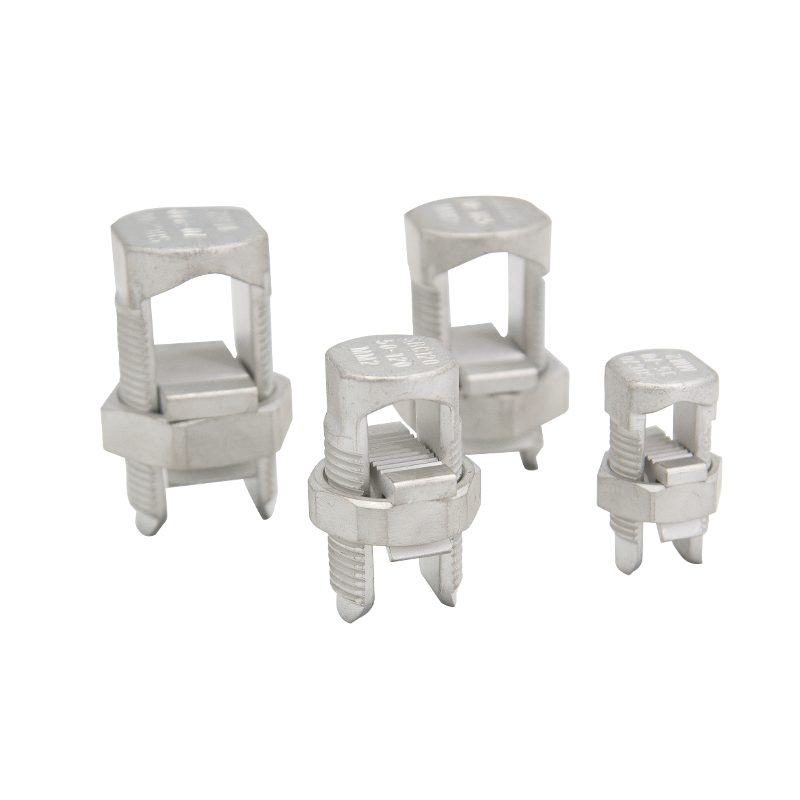

Split Bolted Connector
Split Bolted Connector

Model: SBC
Material of Body: Brass
Surface treatment: Copper/Tin plating
Application: Grounding System
INQUIRY
Part No. NOMINAL DIMENSIONS.mm
Conductor
Range		 R C.F B J L A W
SBC10 6-10 11 16 15 7/16"-20NF-2 30 4 18
SBC16 10-16 13 16 17 1/2"-20NF-2 31 6 20
SBC25 18-25 15 19 18 19/32"-20NF-2 38 7 21
SBC35 16-35 16 21 18 5/8"-20NF-2 39 8 23
SBC50 25-50 19 24 21 3/4"-20NF-2 45 10 27
SBC70 35-70 21 27 23 7/8"-20NF-2 49 11 30
SBC95 50-95 21 27 23 7/8"-20NF-2 49 12 30
SBC120 50-120 25 35 25 11/8"-20NF-2 57 15 37
SBC185 70-185 36 43 32 13/8"-20NF-2 66 18 50
SBC240 95-240 39 46 33 17/16"-20NF-2 72 22 53

Part No. NOMINAL DIMENSIONS.mm
Conductor
Range		 R C.F B J L A W
SBC10 6-10 11 16 15 7/16"-20NF-2 30 4 18
SBC16 10-16 13 16 17 1/2"-20NF-2 31 6 20
SBC25 18-25 15 19 18 19/32"-20NF-2 38 7 21
SBC35 16-35 16 21 18 5/8"-20NF-2 39 8 23
SBC50 25-50 19 24 21 3/4"-20NF-2 45 10 27
SBC70 35-70 21 27 23 7/8"-20NF-2 49 11 30
SBC95 50-95 21 27 23 7/8"-20NF-2 49 12 30
SBC120 50-120 25 35 25 11/8"-20NF-2 57 15 37
SBC185 70-185 36 43 32 13/8"-20NF-2 66 18 50
SBC240 95-240 39 46 33 17/16"-20NF-2 72 22 53
