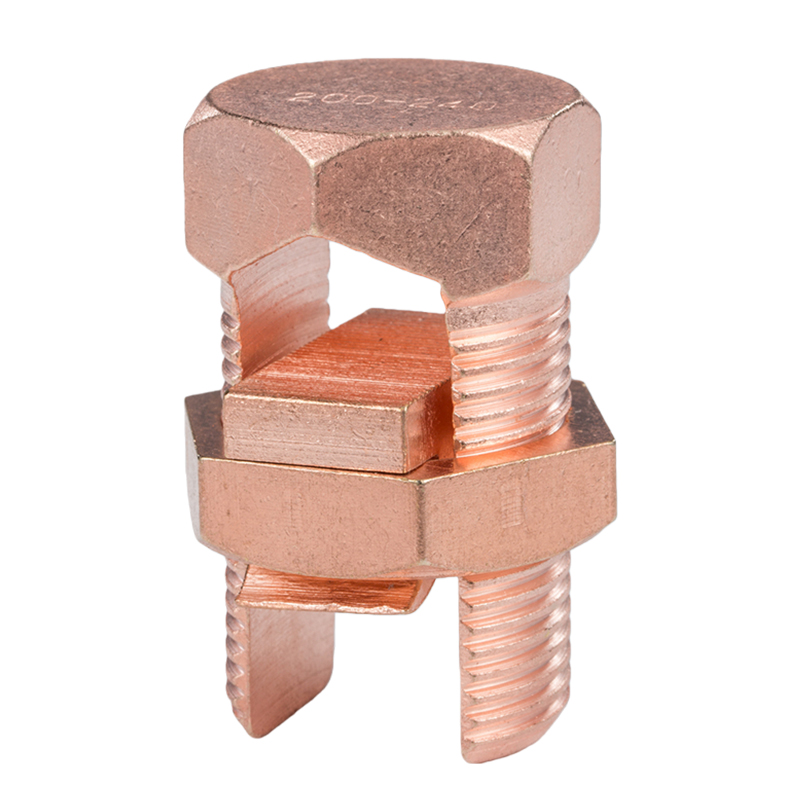

Split Bolted Connector
Split Bolted Connector

Model: T/J
Material of Body: Brass
Surface treatment: Copper/Tin plating
Application: Grounding System
Size:T/J10,T/J16, T/J25, T/J35, T/J50-70, T/J90-120, T/J150-185, T/J200-240 INQUIRY

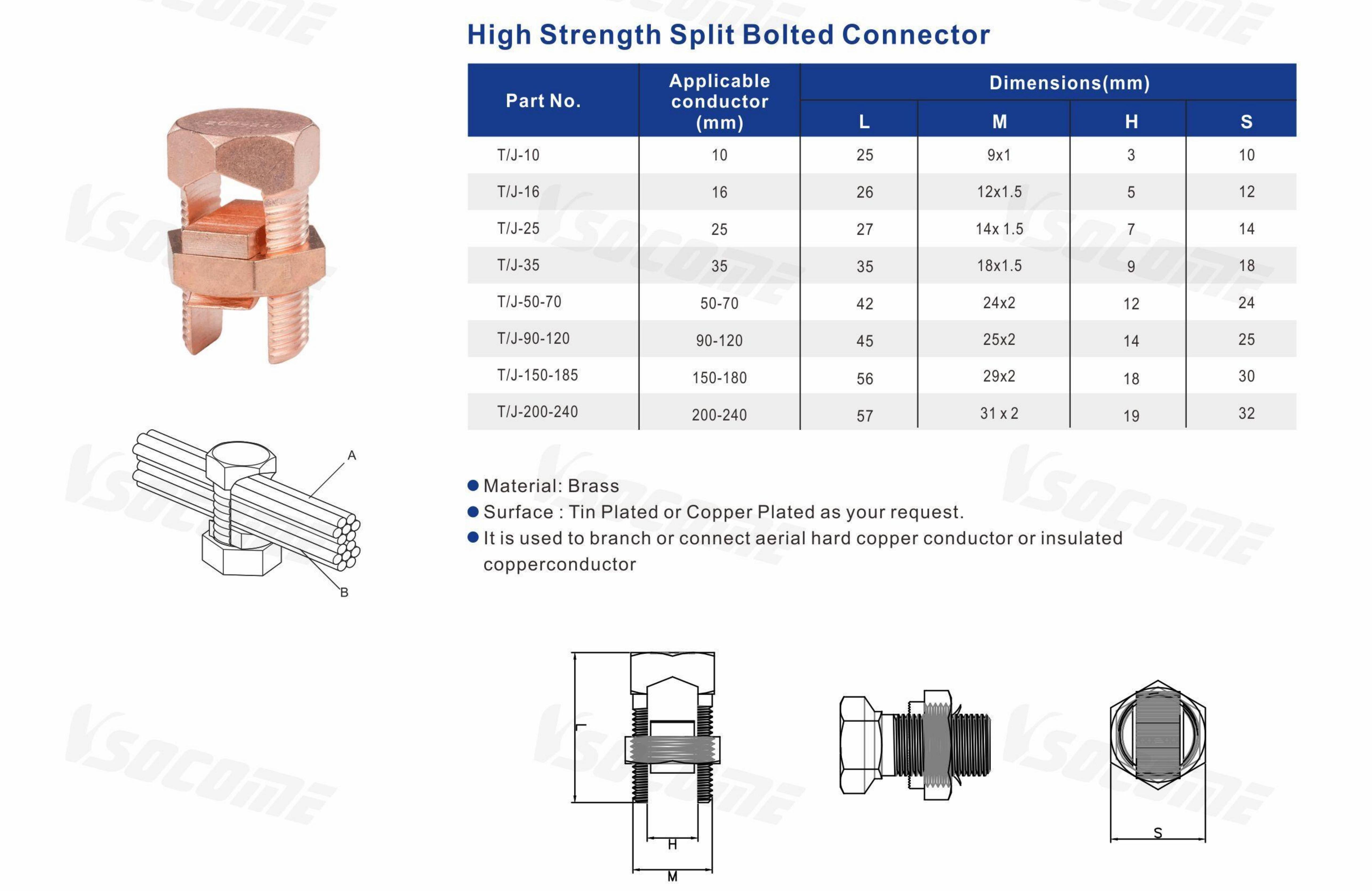

Part No. Applicable
conductor
(mm)		 Dimensions(mm)
L M H S
T/J-10 10 25 9x1 3 10
T/J-16 16 26 12x1.5 5 12
T/J-25 25 27 14x1.5 7 14
T/J-35 35 35 18x1.5 9 18
T/J-50-70 50-70 42 24x2 12 24
T/J-90-120 90-120 45 25x2 14 25
T/J-150-185 150-180 56 29x2 18 30
T/J-200-240 200-240 57 31x2 19 32
Material: Brass
Surface:Tin Plated or Copper Plated as your request.
It is used to branch or connect aerial hard copper conductor or insulated
copperconductor

Part No. Applicable
conductor
(mm)		 Dimensions(mm)
L M H S
T/J-10 10 25 9x1 3 10
T/J-16 16 26 12x1.5 5 12
T/J-25 25 27 14x1.5 7 14
T/J-35 35 35 18x1.5 9 18
T/J-50-70 50-70 42 24x2 12 24
T/J-90-120 90-120 45 25x2 14 25
T/J-150-185 150-180 56 29x2 18 30
T/J-200-240 200-240 57 31x2 19 32
Material: Brass
Surface:Tin Plated or Copper Plated as your request.
It is used to branch or connect aerial hard copper conductor or insulated
copperconductor
