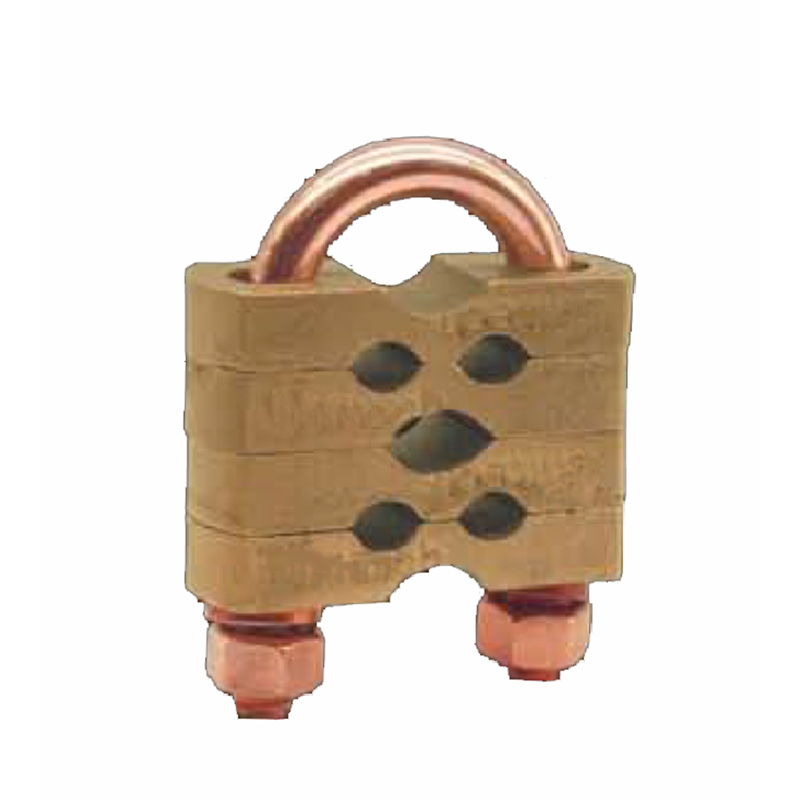

U Bolt Clamp
U bolt Clamp
Model: UC
Material of Body: Brass
Material of Bolt: Brass/Stainless Steel/Brass with Steel
Application: Grounding System, Earth Rod to Cable, Earth Rod to Tape
Size: for Rod Diameter 12.7mm, 14.2mm,16mm, 17.2mm, 20mm INQUIRY
| Part No. | Rod/Pipe Dia | Conductor Size | Tape Size | |
| UC301 | 16mm(5/8")-19mm(3/4") | 50-95mm² | ||
| UC302 | 16mm(5/8")-19mm(3/4") | 50-70mm² | ||
| UC303 | 16mm(5/8")-19mm(3/4") | 50-70mm² | ||
| UC304 | 16mm(5/8")-19mm(3/4") | 50-70mm² | ||
| UC305 | 16mm(5/8")-19mm(3/4") | 50-120mm² | ||
| UC306 | 16mm(5/8")-19mm(3/4") | 70-120mm² | ||
| UC307 | 16mm(5/8")-19mm(3/4") | 70-120mm² | 25x3 | |
| UC308 | 16mm(5/8")-19mm(3/4") | - | 25x3 | |
| UC309 | 30mm | - | 50x6 | |
| UC310 | 40mm | - |
25x3 |
|
| Part No. | Rod/Pipe Dia | Conductor Size | Tape Size | |
| UC301 | 16mm(5/8")-19mm(3/4") | 50-95mm² | ||
| UC302 | 16mm(5/8")-19mm(3/4") | 50-70mm² | ||
| UC303 | 16mm(5/8")-19mm(3/4") | 50-70mm² | ||
| UC304 | 16mm(5/8")-19mm(3/4") | 50-70mm² | ||
| UC305 | 16mm(5/8")-19mm(3/4") | 50-120mm² | ||
| UC306 | 16mm(5/8")-19mm(3/4") | 70-120mm² | ||
| UC307 | 16mm(5/8")-19mm(3/4") | 70-120mm² | 25x3 | |
| UC308 | 16mm(5/8")-19mm(3/4") | - | 25x3 | |
| UC309 | 30mm | - | 50x6 | |
| UC310 | 40mm | - |
25x3 |
|
