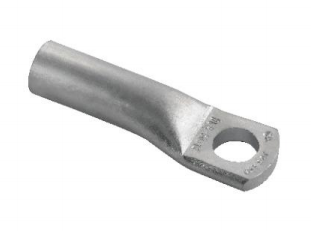

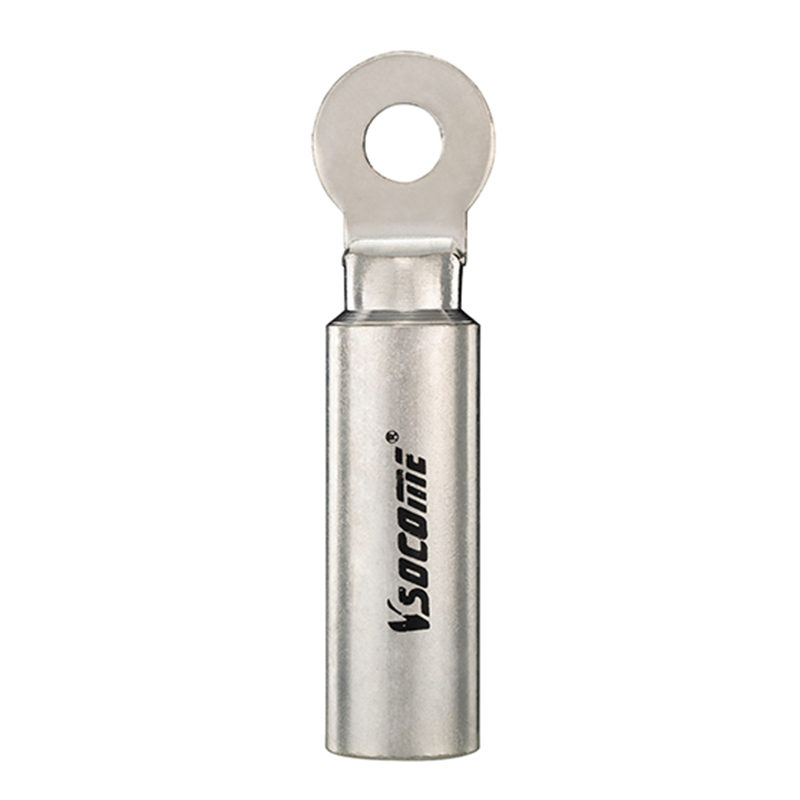

TAL Aluminium Lug
SOCOME aluminium lug with our high-performance terminals and expertly crafted from premium aluminum crimping structures, they adopt advanced friction or brazing technology for unbeatable conductivity and ultra-strong welds, effectively preventing electrochemical corrosion to ensure long-lasting, stable power transmission. Available in the reliable series with an optional tin-plated finish for enhanced oxidation resistance, our terminals fully comply with strict GB/IEC 61238-1 standards, boasting a rated voltage of 660V AC, rated current of 600A, and a wide temperature range of -55℃~+150℃. Perfectly suited for power distribution cabinets, transformers, photovoltaic and energy storage systems, they are the ideal choice to elevate your electrical setups.

Brand：SOCOME
Model： TAL
Material:  Al 99.5% purity
Certificate: IEC/CE/ISO
Application: Automotive, electric power, connecting cable
Type: Lugs
Process: Crimp
Rated Voltage: 1000V
Wire range: 16mm2-630mm2
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered

INQUIRY

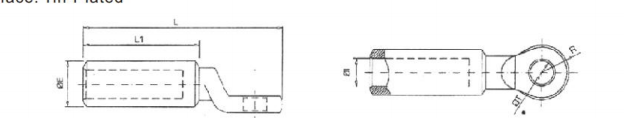

Part No. ΦT±0.3 ΦE±0.5 ΦI±0.3 L±3
TAL-16 13 20 5.5 88
TAL-25 13 20 6.5 88
TAL-35 13 20 8.0  88
TAL-50 13 20 9 88
TAL-70 13 20 11 88
TAL-95 13 20 12.5 88
TAL-120 13 25 14 113
TAL-150 13 25 15.5 113
TAL-185 13 32 17 122
TAL-240 13 32 19.5 122
TAL-300 13 40 23.3 165
TAL-400 13 40 26 165
Other dimensions aluminium lugs can be customized as your requested.


Aluminium lug is used for connecting the wires and cables to the connectors on the electrical equipment.The hole of aluminium cable lug connects the screw and the end of cable lug is connected with the aluminium core of the peeled wire and cable.It is mainly used in cable and switch cable and busbar and other electrical equipment connection also used to connect the line such as cable and overhead line connection.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2.Aluminium lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by aluminium during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The aluminium Cable lug must be inserted in place and pressed with crimping tools.



cable lug



cable lug



cable lug

cable lug



cable lug



cable lug










Part No. ΦT±0.3 ΦE±0.5 ΦI±0.3 L±3
TAL-16 13 20 5.5 88
TAL-25 13 20 6.5 88
TAL-35 13 20 8.0  88
TAL-50 13 20 9 88
TAL-70 13 20 11 88
TAL-95 13 20 12.5 88
TAL-120 13 25 14 113
TAL-150 13 25 15.5 113
TAL-185 13 32 17 122
TAL-240 13 32 19.5 122
TAL-300 13 40 23.3 165
TAL-400 13 40 26 165
Other dimensions aluminium lugs can be customized as your requested.


Aluminium lug is used for connecting the wires and cables to the connectors on the electrical equipment.The hole of aluminium cable lug connects the screw and the end of cable lug is connected with the aluminium core of the peeled wire and cable.It is mainly used in cable and switch cable and busbar and other electrical equipment connection also used to connect the line such as cable and overhead line connection.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2.Aluminium lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by aluminium during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The aluminium Cable lug must be inserted in place and pressed with crimping tools.
