PtCopper Lugs
High-Voltage Insulation · Smart Power Distribution · Industrial Frequency Conversion.

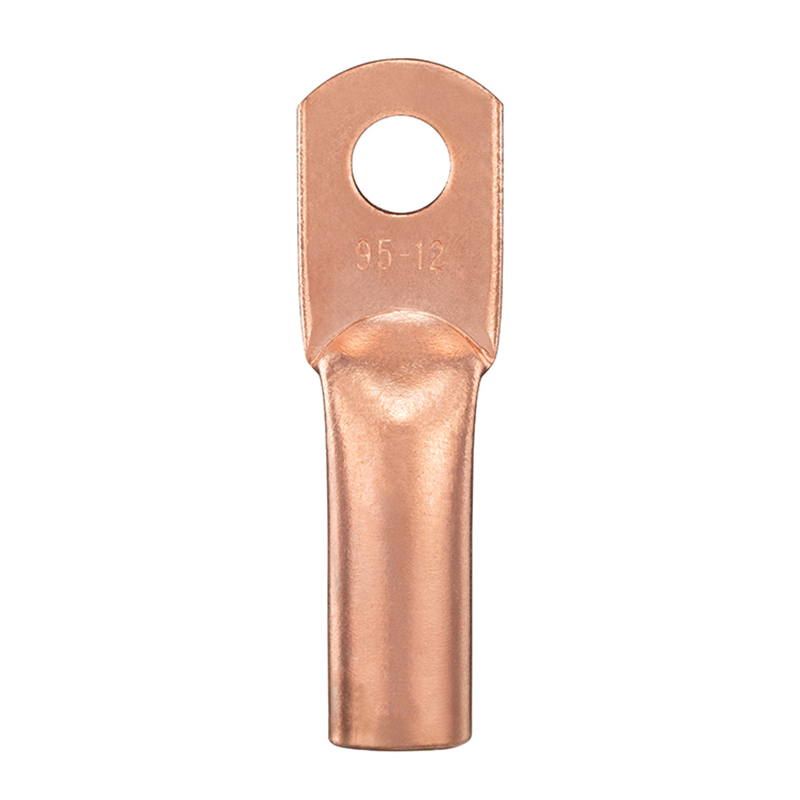

Copper Lug DTG
SOCOME High-performance copper cable lug engineered for superior electrical conductivity and stable connections in power transmission, industrial wiring, and lightning protection systems.
Crafted from high-purity copper, it features a precision-formed seamless barrel for tight crimping, minimal resistance, and excellent corrosion resistance.
Compatible with various copper cables for indoor and outdoor applications, it meets UL, CE, and IEC international standards.
Customizable in sizes, barrel lengths, and surface treatments (tinned, galvanized) with OEM/ODM services, ideal for global exporters targeting diverse markets.
Material: 99.99% pure copper
Certificate: IEC/CE/ISO
Application: Battery, Industrial, connecting cable
Type: Lugs/Connector
Surface treatment: Tin-plating
Rated Voltage: 600V
Wire range: 1.5~630mm2
Rated Current: 100A 150A 200A
Package: Carton box
Terminal quality: Prime,high quality
Others: OEM Service Offered
INQUIRY

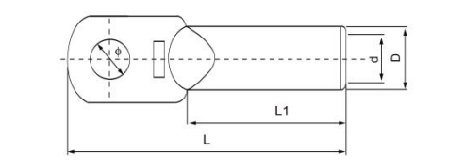

| Part No. | D±0.2 | d±0.2 | L±2 | Φ |
| DTG-10 | 8.0 | 5 | 50 | M6,M8 |
| DTG-16 | 9.0 | 6 | 57 | M6,M8 |
| DTG-25 | 10 | 7 | 62 | M6,M8,M10 |
| DTG-35 | 11 | 8 | 66 | M6,M8,M10 |
| DTG-50 | 13 | 10 | 72 | M6,M8,M10 |
| DTG-70 | 16 | 11.5 | 80 | M6,M8,M10 |
| DTG-95 | 18 | 13.5 | 87 | M6,M8,M10 |
| DTG-120 | 20 | 15 | 96 | M6,M8,M10 |
| DTG-150 | 21.5 | 16.5 | 103 | M12,M14,M16 |
| DTG-185 | 24 | 18.5 | 105 | M12,M14,M16 |
| DTG-240 | 26.5 | 21 | 120 | M12,M14,M16 |
| DTG-300 | 31 | 24 | 135 | M12,M14,M16 |
| Other dimensions copper lug can be customized as your requested. | ||||
We have exported to 50 countries and obtained positive feedback and praises. Our professional technical and sales team also equipped with rich operation experience.
Strict inspection of product quality before shipment and track the life of the product. We also have passed ISO CE ROHS Certifications.
Good faith to the customer is our operating purposes. According to the requirements of customers we strictly request the delivery time of contracts making sure we delivery on time.
Sample for your reference available. We offer samples without sample fee. If you want to customize special one the sample fee will be happened.
Offer OEM Customized Service and best aftersales services for customer. Anything about our company and products free to contact us and we will try our best to help you out.
