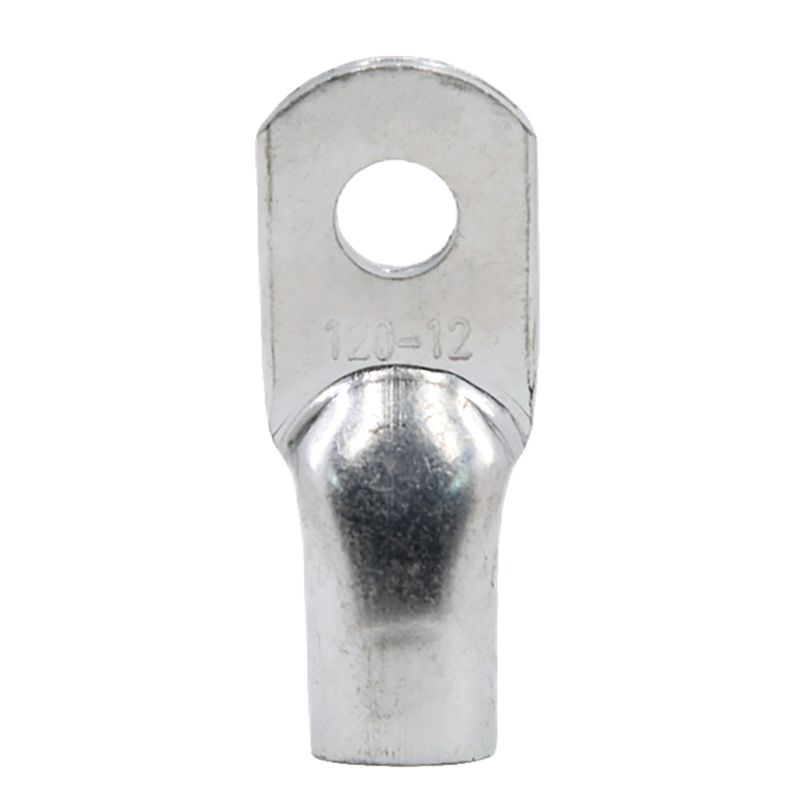

JG-A Copper Lug
SOCOME high performance copper lug engineered for superior electrical conductivity and stable connections in power transmission,industial wiring and lightning protection systems.Crafted for high-purity copper,it features a precision-formed seamless barrel for tight crimping,minimal resistance,and excellent corrosion resistance. Compatible with various copper cables for indoor and outdoor applications,it meets UL/CE and IEC international standards. Customizable in sizes,barrel lengths and surface treatment(Tinned,galvanized）with OEM/ODM services,ideal for global exporters targeting diverse markets.

Brand：SOCOME
Model： JG-A
Material:  CU 99.5% purity
Certificate: IEC/CE/ISO
Application: Battery,Industrial, electric power, connecting cable
Type: Lugs
Process: Tin-plated Crimp
Rated Voltage: 1000V
Wire range: 1.5mm2-630mm2'
Rated range: 600V
Rated Current: 100A/150A/200A
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered

INQUIRY

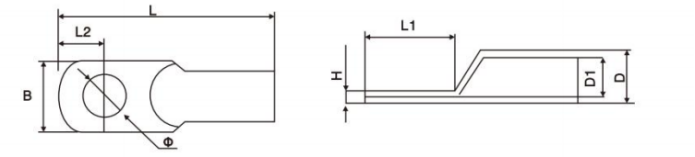

Part No. D±0.2 d±0.2 L±2 Φ
JG-10A 5.5  3.4 40 M6M8
JG-16A 6.5 6.5 48 M6M8M10
JG-25A 8.5 8.5 50 M6M8M10
JG-35A 10.5 10.5 63 M6M8M10
JG-50A 10.5 10.5 63 M6M8M10
JG-70A 10.5 10.5 65 M6M8M10
JG-95A 12.5 12.5 75 M6M8M10
JG-120A 13 13 81 M12M14M16
JG-150A 17 17 90 M12M14M16
JG-185A 17 17 95 M12M14M16
JG-240A 21 21 105 M12M14M16
Other dimensions copper lug can be customized as your requested.

Copper lug is used for connecting the wires and cables to the lug on the electrical equipment.The hole of copper cable connects the screw and the end of cable is connected with the copper core of the peeled wire and cable.It is mainly used in cable and switch cable and busbar and other electrical equipment connection also used to connect the line such as cable and overhead line connection.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2. Copper lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by aluminium during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The copper lug must be inserted in place and pressed with crimping tools.



cable lug



cable lug



cable lug

cable lug



cable lug



cable lug











Part No. D±0.2 d±0.2 L±2 Φ
JG-10A 5.5  3.4 40 M6M8
JG-16A 6.5 6.5 48 M6M8M10
JG-25A 8.5 8.5 50 M6M8M10
JG-35A 10.5 10.5 63 M6M8M10
JG-50A 10.5 10.5 63 M6M8M10
JG-70A 10.5 10.5 65 M6M8M10
JG-95A 12.5 12.5 75 M6M8M10
JG-120A 13 13 81 M12M14M16
JG-150A 17 17 90 M12M14M16
JG-185A 17 17 95 M12M14M16
JG-240A 21 21 105 M12M14M16
Other dimensions copper lug can be customized as your requested.

Copper lug is used for connecting the wires and cables to the lug on the electrical equipment.The hole of copper cable connects the screw and the end of cable is connected with the copper core of the peeled wire and cable.It is mainly used in cable and switch cable and busbar and other electrical equipment connection also used to connect the line such as cable and overhead line connection.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2. Copper lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by aluminium during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The copper lug must be inserted in place and pressed with crimping tools.
