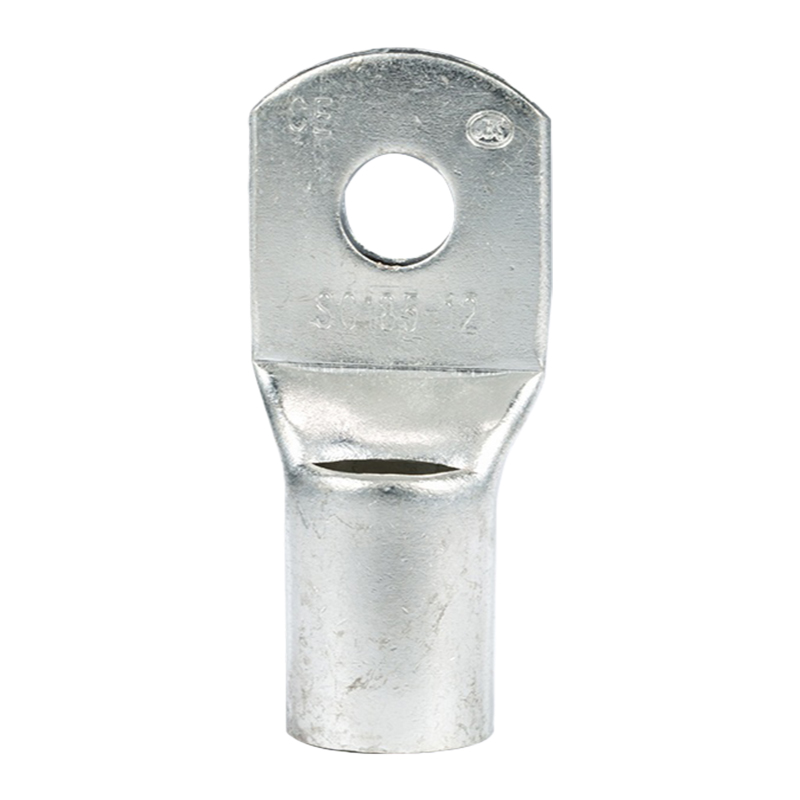

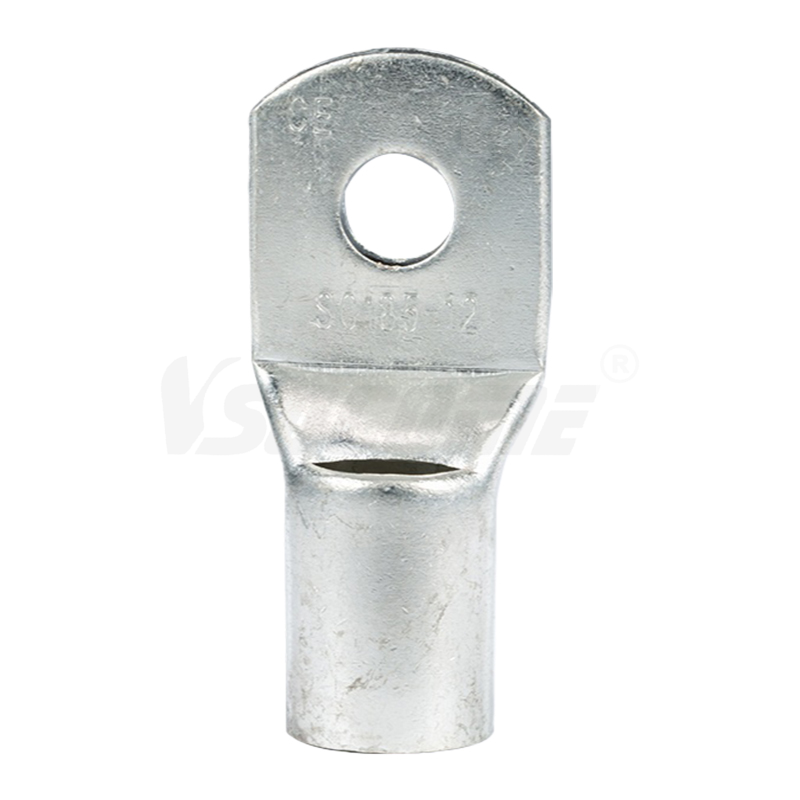

SC Copper Lug
SOCOME high performance copper lug engineered for superior electrical conductivity and stable connections in power transmission,industial wiring and lightning protection systems.Crafted for high-purity copper,it features a precision-formed seamless barrel for tight crimping,minimal resistance,and excellent corrosion resistance. Compatible with various copper cables for indoor and outdoor applications,it meets UL/CE and IEC international standards. Customizable in sizes,barrel lengths and surface treatment(Tinned,galvanized）with OEM/ODM services,ideal for global exporters targeting diverse markets.
Brand：SOCOME
Model： SC
Material: CU 99.5% purity
Certificate: IEC/CE/ISO
Application: Battery,Industrial, electric power, connecting cable
Type: Lugs
Process: Tin-plated Crimp
Rated Voltage: 1000V
Wire range: 1.5mm2-630mm2'
Rated range: 600V
Rated Current: 100A/150A/200A
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered

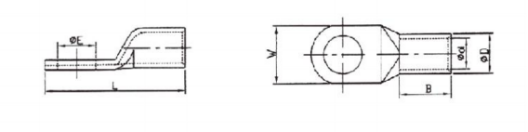

| Part No. | D±0.2 | d±0.2 | L±2 | Φ |
| SC-6 | 6.5 | 3.8 | 24 | M5M6M8 |
| SC-10 | 7.0 | 4.7 | 27 | M5M6M8 |
| SC-16 | 8.5 | 5.5 | 33 | M6M8M10M12 |
| SC-25 | 10 | 7 | 35 | M6M8M10M12 |
| SC-35 | 12 | 8.5 | 38 | M6M8M10M12 |
| SC-50 | 14 | 10 | 45 | M6M8M10M12 |
| SC-70 | 16.5 | 12 | 49 | M8M10M12M16 |
| SC-95 | 18 | 13.5 | 55 | M8M10M12M16 |
| SC-120 | 19.5 | 15 | 60 | M12M14M16M20 |
| SC-150 | 21 | 16.5 | 70 | M12M14M16M20 |
| SC-185 | 24 | 19 | 75 | M12M14M16M20 |
| SC-240 | 26 | 21 | 90 | M12M14M16M20 |
| SC-300 | 29.5 | 23.5 | 98 | M12M14M16M20 |
| Other dimensions copper lug can be customized as your requested. | ||||
Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.
There are two commonly surface treatment used:
1. Pickling the acid-washed color and the original color of the red copper are basically the same
which can maintain a nice appearance anti-oxidant and more conductive to electricity.
2. Copper lug
Installation Precautions:
1. The screw must be tightened.
2. The copper lug
|
|
|
|
|
|
|
|
