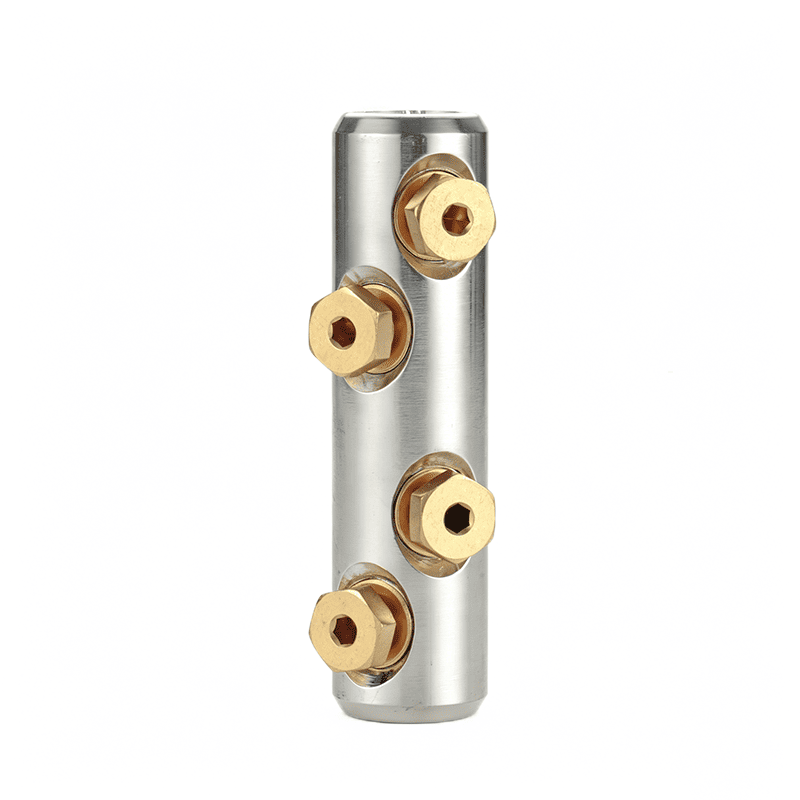

BMC Copper Bolt Aluminium Alloy Connector
SOCOME aluminium alloy connector with our high-performance terminals and expertly crafted from premium aluminum crimping structures, they adopt advanced friction or brazing technology for unbeatable conductivity and ultra-strong welds, effectively preventing electrochemical corrosion to ensure long-lasting, stable power transmission. Available in the reliable DTL series with an optional tin-plated finish for enhanced oxidation resistance, our terminals fully comply with strict GB/IEC 61238-1 standards, boasting a rated voltage of 660V AC, rated current of 600A, and a wide temperature range of -55℃~+150℃. Perfectly suited for power distribution cabinets, transformers, photovoltaic and energy storage systems, they are the ideal choice to elevate your electrical setups.

Brand：SOCOME
Model：BMC
Material: High strength aluminium alloy
Certificate: IEC/CE/ISO
Application: Automotive, electric power, connecting cable
Type: Lugs/Connector
Process: Nickel plating
Rated Voltage: 1000V
Wire range: 16mm2-1000mm2

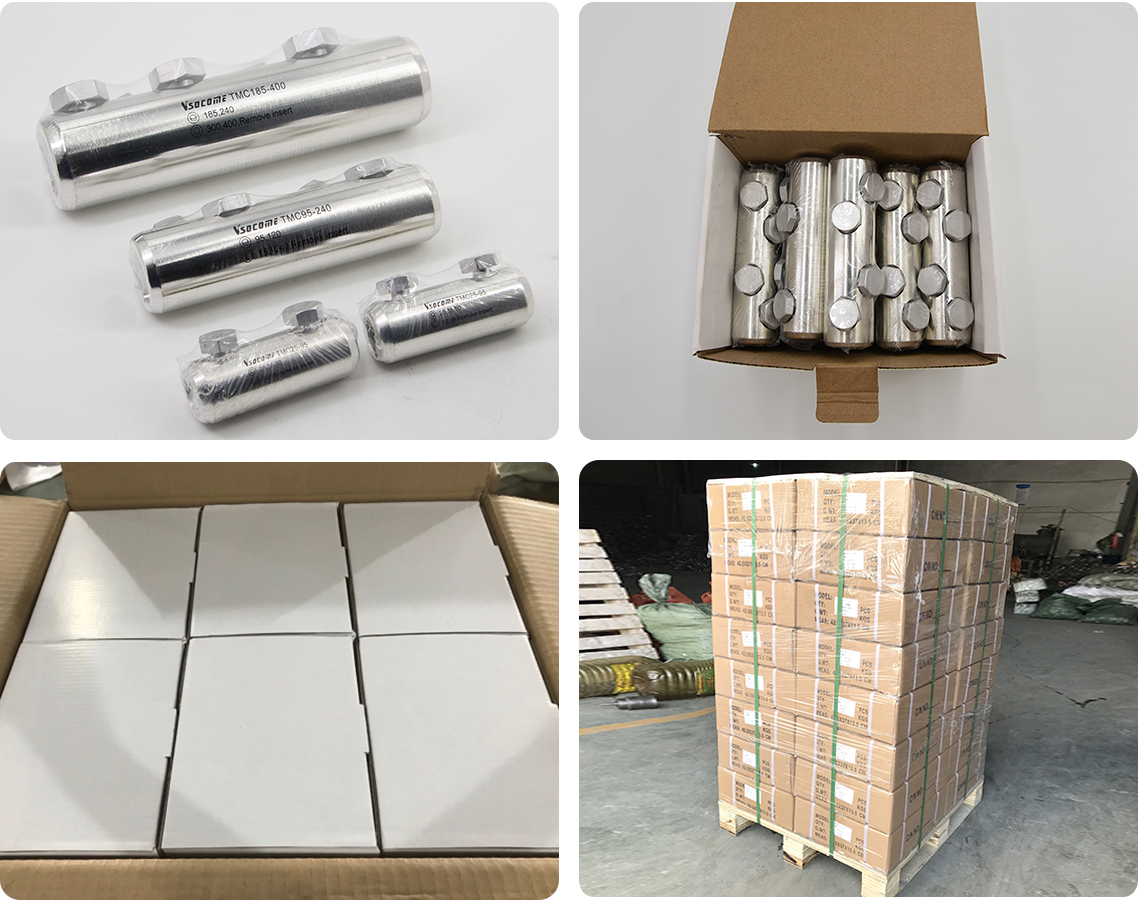

Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered INQUIRY

Item No. NOMINAL DIMENSIONS-mm Bolt & Screw Parameters
  Cross section(mm) L L1 D d No. of bolt Size of Bolt AF Screw specifications
BMC-10/35 10-35 45 20 19 8.5 2 10 M10
BMC-16/95 16-95 70 32 24 12.5 2 10 M12
BMC-25/150 25-150 85 35 30 15.8 2 10 M14
BMC-95/240 95-240 120 56 33 20 4 13 M18
BMC-120/300 120-300 142 67 38 25 4 19 M22
BMC-185/400 185-400 170 82 42 26 6 19 M22
BMC-400/630 400-630 200 94 52 34 6 19 M22
400-630 200 94 52 34 6 19 M24
BMC-800 800 220 105 60 37 8 22 M22
800 220 105 60 37 8 22 M24
BMC-1000 1000 220 105 60 41 8 22 M22
1000 220 105 60 41 8 22 M24

Aluminium Alloy Connector body is high strength aluminium alloy and the bolts is brass or tin-platedwith inner and outer hexagon or aluminium alloy and the surface is tin-plated the center rings are enclosed for entric conductor positioning.

It's also a mechanical terminal that connectors wire through bolt fasteningsuitable for scenarios such as distribution lines and power equipment.It's has the characterristics of no pressure connectioneasy operation and torque preset.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2. Aluminium alloy lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by copper during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The Aluminium alloy lug  must be inserted in place and pressed with crimping tools.




Item No. NOMINAL DIMENSIONS-mm Bolt & Screw Parameters
  Cross section(mm) L L1 D d No. of bolt Size of Bolt AF Screw specifications
BMC-10/35 10-35 45 20 19 8.5 2 10 M10
BMC-16/95 16-95 70 32 24 12.5 2 10 M12
BMC-25/150 25-150 85 35 30 15.8 2 10 M14
BMC-95/240 95-240 120 56 33 20 4 13 M18
BMC-120/300 120-300 142 67 38 25 4 19 M22
BMC-185/400 185-400 170 82 42 26 6 19 M22
BMC-400/630 400-630 200 94 52 34 6 19 M22
400-630 200 94 52 34 6 19 M24
BMC-800 800 220 105 60 37 8 22 M22
800 220 105 60 37 8 22 M24
BMC-1000 1000 220 105 60 41 8 22 M22
1000 220 105 60 41 8 22 M24

Aluminium Alloy Connector body is high strength aluminium alloy and the bolts is brass or tin-platedwith inner and outer hexagon or aluminium alloy and the surface is tin-plated the center rings are enclosed for entric conductor positioning.

It's also a mechanical terminal that connectors wire through bolt fasteningsuitable for scenarios such as distribution lines and power equipment.It's has the characterristics of no pressure connectioneasy operation and torque preset.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2. Aluminium alloy lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by copper during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The Aluminium alloy lug  must be inserted in place and pressed with crimping tools.
