Home > Products > Cable Lugs & Connectors > Mechanical Shear Bolt Lugs and Connectors > BML Mechanical Cable Lug

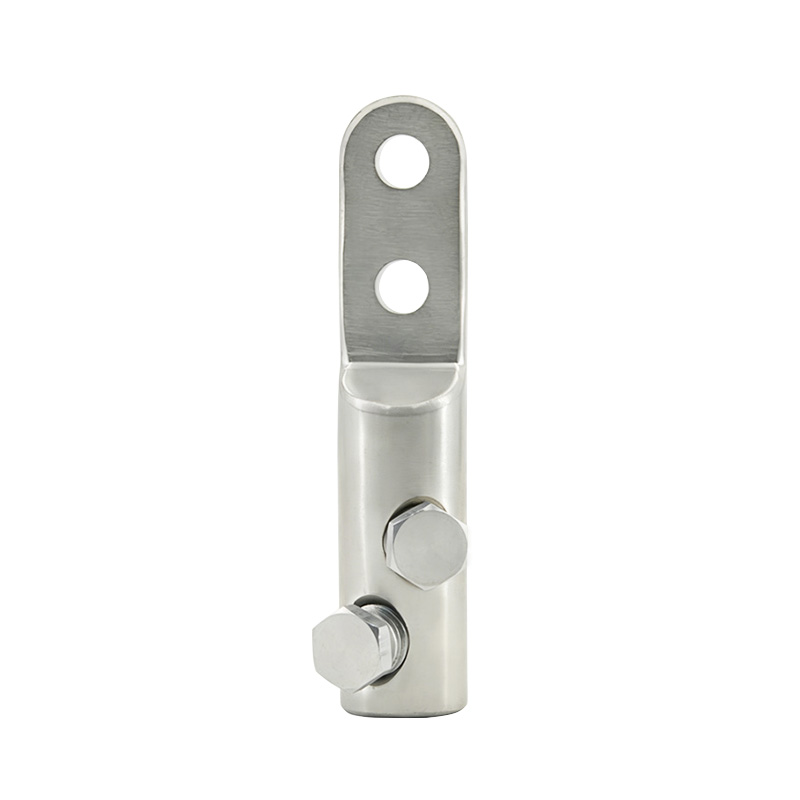

BML Mechanical Cable Lug
SOCOME Mechanical lug with our high-performance terminals and expertly crafted from premium L3 aluminum alloy crimping structures, they adopt advanced friction or brazing technology for unbeatable conductivity and ultra-strong welds, effectively preventing electrochemical corrosion to ensure long-lasting, stable power transmission. Available in the reliable DTL series with an optional tin-plated finish for enhanced oxidation resistance, our terminals fully comply with strict GB/IEC 61238-1 standards, boasting a rated voltage of 660V AC, rated current of 600A, and a wide temperature range of -55℃~+150℃. Perfectly suited for power distribution cabinets, transformers, photovoltaic and energy storage systems, they are the ideal choice to elevate your electrical setups.

Brand：SOCOME
Model： BML
Material: Al alloy 99.5% purity
Certificate: IEC/CE/ISO
Application: Automotive, electric power, connecting cable
Type: Lugs/Connector
Process: Friction welding
Rated Voltage: 1000V
Wire range: 16mm2-630mm2
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered INQUIRY
Part No AL in mm2 CU in mm2 Der Schrauben
Number of bolts		 Dimensions
mm		 Pdlm hole
mm		 Tool for outer
hixagon
Part No rw(v) re sm rw(v) sm Number of bolts D d L L1 Pdlm hole mm Tool for outer hixagon
round stranded round solid sector stranded round stranded sector stranded
BML25-150/2(#2-300)x2x12 25-150 25-150 35-120 25-150 35-120 2 30 15.8 123.5 41 13 17 or sw10
BML25-150/2(#2-300)x2x14 25-150 25-150 35-120 25-150 35-120 2 30 15.8 123.5 41 14.5 17 or sw10
BML95-240(4/0-500)x2x12 95-240 95-240 95-185 95-240 95-240 2 33 20 139.5 56 13 19 or sw13
BML95-240(4/0-500)x2x14 95-240 95-240 95-185 95-240 95-240 2 33 20 139.5 56 14.5 19 or sw13
BML185-400(350-750)x2x12 185-400 185-400 185-300 185-400 185-300 3 42 26 172.5 80 13 22 or sw19
BML400-630(750-1250)x2x12 400-630 400-630 400-500 400-630 400-500 3 50 33 175 70 13 27 or sw19

Aluminium Alloy Lug body is high strength aluminium alloy and the bolts is brass or tin-platedwith inner and outer hexagon or aluminium alloy and the surface is tin-plated the center rings are enclosed for entric conductor positioning.

It's also a mechanical terminal that connectors wire through bolt fasteningsuitable for scenarios such as distribution lines and power equipment.It's has the characterristics of no pressure connectioneasy operation and torque preset.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2. Aluminium alloy lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by copper during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The Aluminium alloy lug  must be inserted in place and pressed with crimping tools.

Part No AL in mm2 CU in mm2 Der Schrauben
Number of bolts		 Dimensions
mm		 Pdlm hole
mm		 Tool for outer
hixagon
Part No rw(v) re sm rw(v) sm Number of bolts D d L L1 Pdlm hole mm Tool for outer hixagon
round stranded round solid sector stranded round stranded sector stranded
BML25-150/2(#2-300)x2x12 25-150 25-150 35-120 25-150 35-120 2 30 15.8 123.5 41 13 17 or sw10
BML25-150/2(#2-300)x2x14 25-150 25-150 35-120 25-150 35-120 2 30 15.8 123.5 41 14.5 17 or sw10
BML95-240(4/0-500)x2x12 95-240 95-240 95-185 95-240 95-240 2 33 20 139.5 56 13 19 or sw13
BML95-240(4/0-500)x2x14 95-240 95-240 95-185 95-240 95-240 2 33 20 139.5 56 14.5 19 or sw13
BML185-400(350-750)x2x12 185-400 185-400 185-300 185-400 185-300 3 42 26 172.5 80 13 22 or sw19
BML400-630(750-1250)x2x12 400-630 400-630 400-500 400-630 400-500 3 50 33 175 70 13 27 or sw19

Aluminium Alloy Lug body is high strength aluminium alloy and the bolts is brass or tin-platedwith inner and outer hexagon or aluminium alloy and the surface is tin-plated the center rings are enclosed for entric conductor positioning.

It's also a mechanical terminal that connectors wire through bolt fasteningsuitable for scenarios such as distribution lines and power equipment.It's has the characterristics of no pressure connectioneasy operation and torque preset.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2. Aluminium alloy lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by copper during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The Aluminium alloy lug  must be inserted in place and pressed with crimping tools.
