PtBi-metal Cable Connector
High-Voltage Insulation · Smart Power Distribution · Industrial Frequency Conversion.

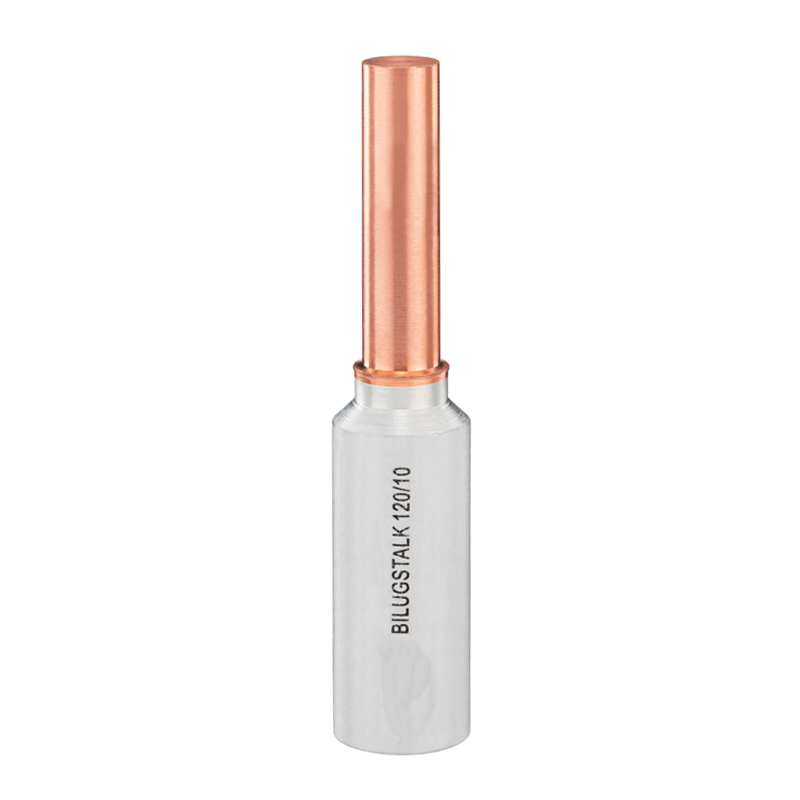

Bi-metal Connector DSL
SOCOME bimetallic connector with our high-performance terminals and expertly crafted from premium T2 copper contact pieces and L3 aluminum crimping structures, they adopt advanced friction or brazing technology for unbeatable conductivity and ultra-strong welds, effectively preventing electrochemical corrosion to ensure long-lasting, stable power transmission.
Available in the reliable DTL series with an optional tin-plated finish for enhanced oxidation resistance, our terminals fully comply with strict GB/IEC 61238-1 standards, boasting a rated voltage of 660V AC, rated current of 600A, and a wide temperature range of -55℃~+150℃. Perfectly suited for power distribution cabinets, transformers, photovoltaic and energy storage systems, they are the ideal choice to elevate your electrical setups.
Material: Cu99.9% purity and Al 99.5% purity
Certificate: IEC/CE/ISO
Application: Automotive, electric power, connecting cable
Type: Lugs/Connector
Process: Friction welding
Rated Voltage: 1000V
Wire range: 16mm2-630mm2
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered
INQUIRY
| Part No. | A±0.3 | D±0.3 | M±0.3 | |
| DSL 6/12 | 48 | 2.4 | 12 | |
| DSL 10/12 | 48 | 4.5 | 12 | |
| DSL 16/12 | 58 | 5.5 | 12 | |
| DSL 25/12 | 58 | 7.5 | 12 | |
| DSL 35/12 | 71 | 8.5 | 12 | |
| DSL 50/12 | 74 | 9.5 | 12 | |
| DSL 70/12 | 74 | 11.5 | 12 | |
| DSL 95/12 | 87 | 13.5 | 12 | |
| DSL 120/12 | 91 | 15.5 | 12 | |
| DSL 150/12 | 108 | 16.5 | 12 | |
| DSL 185/12 | 118 | 18.5 | 12 | |
| DSL 240/12 | 128 | 22 | 12 | |
| DSL 300/12 | 138 | 23.5 | 12 | |
| Other dimensions bimetallic connector can be customized as your requested. | ||||
We have exported to 50 countries and obtained positive feedback and praises. Our professional technical and sales team also equipped with rich operation experience.
Strict inspection of product quality before shipment and track the life of the product. We also have passed ISO CE ROHS Certifications.
Good faith to the customer is our operating purposes. According to the requirements of customers we strictly request the delivery time of contracts making sure we delivery on time.
Sample for your reference available. We offer samples without sample fee. If you want to customize special one the sample fee will be happened.
Offer OEM Customized Service and best aftersales services for customer. Anything about our company and products free to contact us and we will try our best to help you out.
