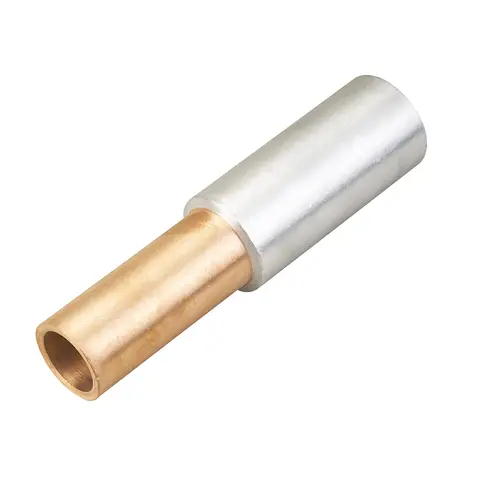

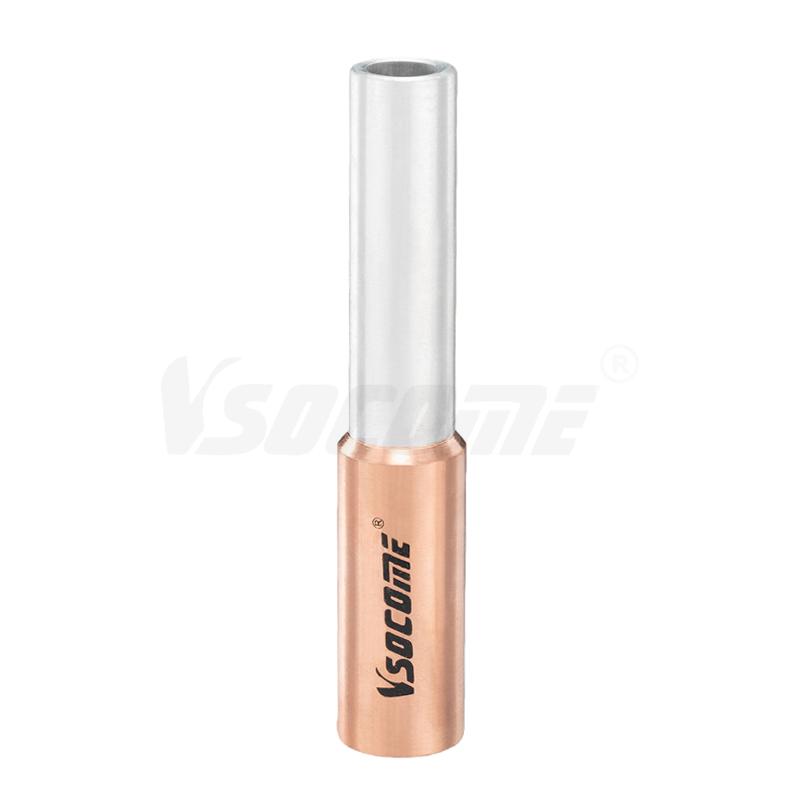

GTL Bimetal Connector
SOCOME bimetallic lug with our high-performance terminals and expertly crafted from premium T2 copper contact pieces and L3 aluminum crimping structures, they adopt advanced friction or brazing technology for unbeatable conductivity and ultra-strong welds, effectively preventing electrochemical corrosion to ensure long-lasting, stable power transmission. Available in the reliable DTL series with an optional tin-plated finish for enhanced oxidation resistance, our terminals fully comply with strict GB/IEC 61238-1 standards, boasting a rated voltage of 660V AC, rated current of 600A, and a wide temperature range of -55℃~+150℃. Perfectly suited for power distribution cabinets, transformers, photovoltaic and energy storage systems, they are the ideal choice to elevate your electrical setups.

Brand：SOCOME
Model： GTL
Material: Cu99.9% purity and Al 99.5% purity
Certificate: IEC/CE/ISO
Application: Automotive, electric power, connecting cable
Type: Lugs/Connector
Process: Friction welding
Rated Voltage: 1000V
Wire range: 16mm2-630mm2
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered
INQUIRY



Part No. L±0.3 D1±0.3 d1±0.3 D2±0.3 d2±0.3
GTL 16/10 70 10 6.5 9 5.7
GTL 25/16 75 12 7.5 10 6.5
GTL 35/25 84 14 8.5 11 7.5
GTL 50/35 90 16 10.2 12 8.5
GTL 70/50 98 18 11.5 14 10
GTL 95/70 106 21 13.5 16 11.5
GTL 120/95 110 23 15 18 13.5
GTL 150/120 115 25 16.5 20 15
GTL 185/150 125 27 18.5 22 16.5
GTL 240/185 130 30 21 24 18.5
GTL 300/240 14 34 23.5 27 21
GTL 400/300 150 38 26.5 30 23.5
Other dimensions bimetallic connector can be customized as your requested.



Bimetal connector is used for connecting the wires and cables to the connectors on the electrical equipment.The hole of bimetal cable lug connects the screw and the end of cable lug is connected with the copper core of the peeled wire and cable.It is mainly used in cable and switch cable and busbar and other electrical equipment connection also used to connect the line such as cable and overhead line connection.



Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.



There are two commonly surface treatment used:

1. Pickling the acid-washed color and the original color of the red copper are basically the same

which can maintain a nice appearance anti-oxidant and more conductive to electricity.

2. Bimetal Cable lug is silver-white which can better prevent oxidation and conduct electricity and can prevent the diffusion of harmful gases generated by copper during the conductive process.



Installation Precautions:

1. The screw must be tightened.

2. The Bimetal Cable lug must be inserted in place and pressed with crimping tools.
