PtBi-metal Cable Connector
High-Voltage Insulation · Smart Power Distribution · Industrial Frequency Conversion.

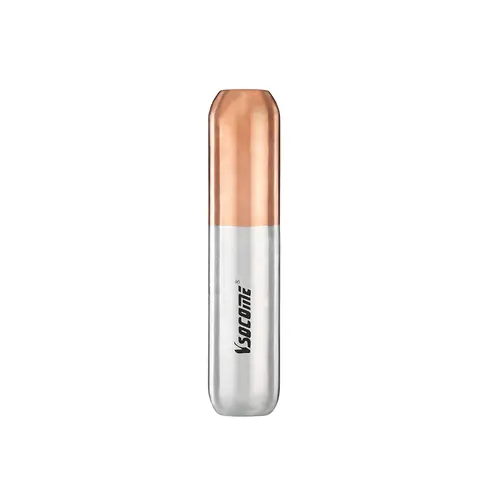

CAU Bimetal Connector
SOCOME bimetallic lug with our high-performance terminals and expertly crafted from premium T2 copper contact pieces and L3 aluminum crimping structures, they adopt advanced friction or brazing technology for unbeatable conductivity and ultra-strong welds, effectively preventing electrochemical corrosion to ensure long-lasting, stable power transmission. Available in the reliable DTL series with an optional tin-plated finish for enhanced oxidation resistance, our terminals fully comply with strict GB/IEC 61238-1 standards, boasting a rated voltage of 660V AC, rated current of 600A, and a wide temperature range of -55℃~+150℃. Perfectly suited for power distribution cabinets, transformers, photovoltaic and energy storage systems, they are the ideal choice to elevate your electrical setups.
Brand：SOCOME
Model： CAU
Material: Cu99.9% purity and Al 99.5% purity
Certificate: IEC/CE/ISO
Application: Automotive, electric power, connecting cable
Type: Lugs/Connector
Process: Friction welding
Rated Voltage: 1000V
Wire range: 16mm2-630mm2
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered INQUIRY
| Part No. | L±2 | E±0.3 | A±0.3 | C±0.3 |
| CAU25-25 | 90.5 | 16 | 6.8 | 7.5 |
| CAU35-25 | 106.5 | 20 | 8 | 7.5 |
| CAU50-35 | 106.5 | 20 | 9 | 8.5 |
| CAU70-50 | 106.5 | 20 | 11 | 9.5 |
| CAU95-70 | 10.6 | 20 | 12.5 | 11 |
| CAU120-95 | 133 | 25 | 13.7 | 13 |
| CAU150-120 | 133 | 25 | 15.5 | 14.2 |
| CAU185-150 | 143.5 | 32 | 17 | 16 |
| CAU240-185 | 143.5 | 32 | 19.5 | 18 |
| CAU300-240 | 180 | 40 | 23.3 | 22 |
|
Other dimensions bime |
||||
Bime
Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.
There are two commonly surface treatment used:
1. Pickling the acid-washed color and the original color of the red copper are basically the same
which can maintain a nice appearance anti-oxidant and more conductive to electricity.
2. Bime
Installation Precautions:
1. The screw must be tightened.
2. The Bime
|
|
|
|
|
|
|
|
