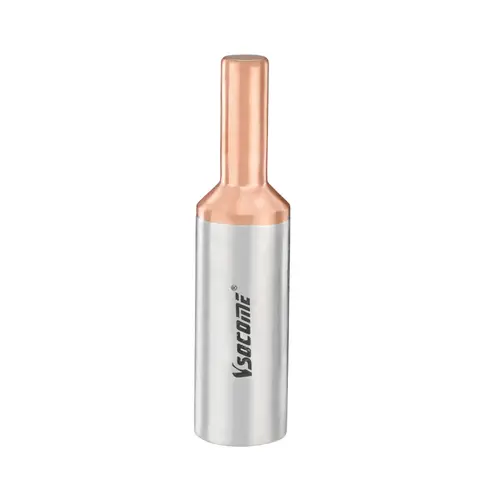

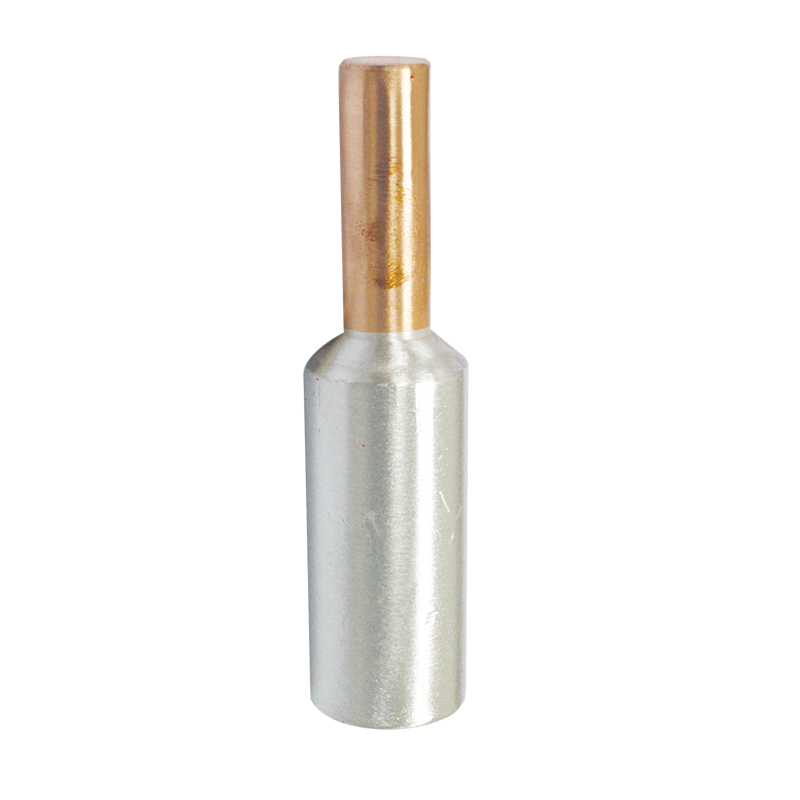

PBL-B PIN Type Bi-metal Connector (PIN Type)
SOCOME bimetallic lug with our high-performance terminals and expertly crafted from premium T2 copper contact pieces and L3 aluminum crimping structures, they adopt advanced friction or brazing technology for unbeatable conductivity and ultra-strong welds, effectively preventing electrochemical corrosion to ensure long-lasting, stable power transmission. Available in the reliable DTL series with an optional tin-plated finish for enhanced oxidation resistance, our terminals fully comply with strict GB/IEC 61238-1 standards, boasting a rated voltage of 660V AC, rated current of 600A, and a wide temperature range of -55℃~+150℃. Perfectly suited for power distribution cabinets, transformers, photovoltaic and energy storage systems, they are the ideal choice to elevate your electrical setups.
Brand：SOCOME
Model： PBL-B
Material: Cu99.9% purity and Al 99.5% purity
Certificate: IEC/CE/ISO
Application: Automotive, electric power, connecting cable
Type: Lugs/Connector
Process: Friction welding
Rated Voltage: 1000V
Wire range: 16mm2-630mm2
Package: Carton box
Operating termperature: -40 to 100℃
Others: OEM Service Offered INQUIRY
| Part No. | L±2 | D±0.3 | d1±0.3 | d2±0.5 |
| PBL-16B | 58 | 16.0 | 5.5 | 8.0 |
| PBL-25B | 58 | 16.0 | 6.5 | 8.0 |
| PBL-35B | 71 | 16.0 | 8.0 | 8.0 |
| PBL-50B | 74 | 20.0 | 9.0 | 12.0 |
| PBL-70B | 87 | 20.0 | 11.0 | 12.0 |
| PBL-95B | 91 | 20.0 | 12.5 | 12.0 |
| PBL-120B | 97 | 25.0 | 13.7 | 14.0 |
| PBL-150B | 108 | 25.0 | 15.5 | 14.0 |
| PBL-185B | 116 | 32.0 | 17.0 | 14.0 |
| PBL-240B | 128 | 32.0 | 19.5 | 14.0 |
|
Other dimensions bime |
||||
Bime
Widely used in household appliances electrical industry mechanical equipment factory shipyard distribution cabinet distribution box etc. The product has good appearance and good electrical conductivity and safety.
