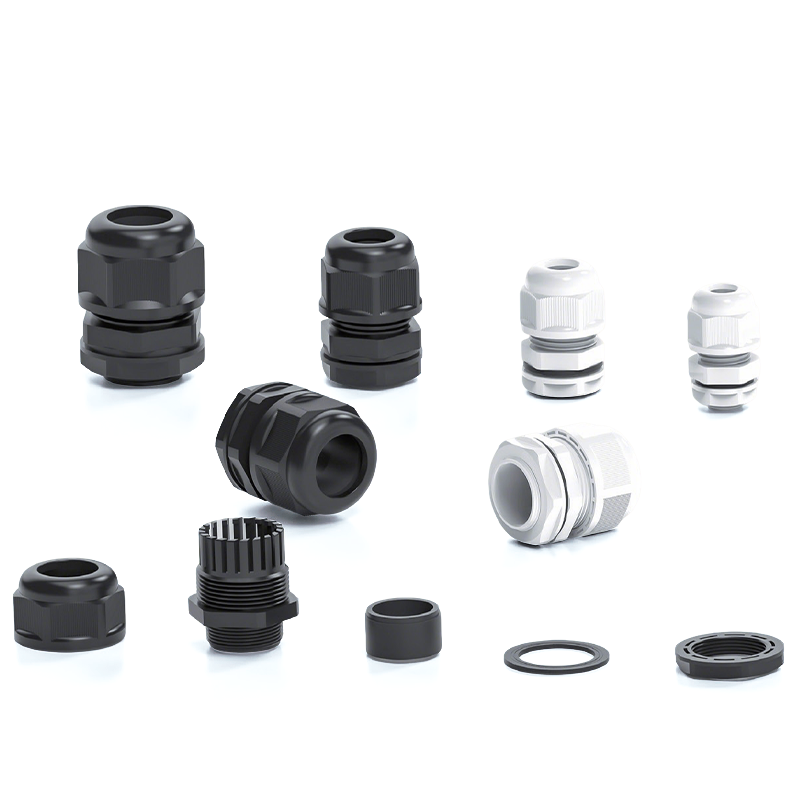

Nylon Reinforced Cable Gland PG

A Nylon Cable Gland is a durable cable management device designed tosecure, seal, and protect cables where they enter electrical equipment orenclosures. Made from high-quality PA66 nylon, it offers excellent resistanceto water, dust, UV exposure, corrosion, and chemicals. With IP68 waterproofprotection, nylon cable glands are widely used in electrical panels, industrialautomation, telecommunications, solar energy systems, LED lighting,machinery, and outdoor installations. They provide reliable strain relief, extendcable life, and ensure safe, long-lasting electrical connections in demandingenvironments.

Brand: SOCOME
Model No.: SM-NL-PG
Material: PA/PA6(Nylon),UL94-V2
Hermetic seal: EPDM. Silicone rubber
O-Ring:EPDM.Silicone rubber
Protection degree: IP68
Temperature: Static state:-40to 100°C,Short time to 120°C
Dynamic state:-20°C to 80°C ,Short time to 100°C
Color customization: Grey, Black, other color customized

INQUIRY
Screw spec Cable Range Φ Thread Length GL Joint Length H Thread O.D. AG Spanner size A&F Code
PG7 3-6.5 8 22 12.5 17/15 SM-NL.PG7S-6.5B
PG7 4-8 9 25 12.5 17/19 SM-NL.PG7-8B
PG9 4-8 9 25 15.2 22/19 SM-NL.PG9-8B
PG9 2-5 9 25 15.2 22/19 SM-NL.PG9-5B
PG11 6-10 9 28 18.6 24/22 SM-NL.PG11-10B
PG11 4-8 9 28 18.6 24/22 SM-NL.PG11-8B
PG13.5 6-12 10 30 20.4 27/24 SM-NL.PG13.5-12B
PG13.5 5-10 10 30 20.4 27/24 SM-NL.PG13.5-10B
PG16 10-14 10.8 31 22.5 30/27 SM-NL.PG16-14B
PG16 5-10 10.8 31 22.5 30/27 SM-NL.PG16-10B
PG19 8.5-14 11 31 23.5 30/27 SM-NL.PG19-14B
PG19 6-11 11 31 22.5 30/27 SM-NL.PG19-11B
PG21 12.5-18 12 35 28.3 36/33 SM-NL.PG21-18B
PG21 7-13 12 35 28.3 36/33 SM-NL.PG21-13B
PG25 14-20 13 35 30 36/37 SM-NL.PG25-20B
PG29 18-25 15 38 37 46/41 SM-NL.PG29-25B
PG29 15-22 15 38 37 46/41 SM-NL.PG29-22B
PG36 24-32 15 43 47 57/50 SM-NL.PG36-32B
PG36 22-29 15 43 47 57/50 SM-NL.PG36-29B
PG42 31-41 15.5 47 54 64/62 SM-NL.PG42-41B
PG42 22-28 15.5 47 54 64/62 SM-NL.PG42-28B
PG48 35-45 15.5 52 59.3 70/65 SM-NL.PG48-45B
G3/8 6-10 10 28 16.662 22/22
G3/8 4-8 10 28 16.662 22/22
G1/2 6-12 10 30 20.955 27/24
G1/2 5-10 10 30 20.955 27/24
G3/4 12.5-18 12 35 26.441 33/33
G3/4 7-13 12 35 26.441 33/33
G1 18-25 13.5 38 33.2 42/41
G1 15-22 13.5 38 33.2 42/41
G1-1/4 24-32 15 43 41.9 51/50
G1-1/4 22-29 15 43 41.9 51/50
NPT3/8 6-10 10 28 16.662 22
NPT3/8 4-8 10 28 16.662 22
NPT1/2 6-12 10 30 20.955 27
NPT1/2 5-10 10 30 20.955 27
NPT3/4 12.5-18 15 35 26.441 33
NPT3/4 7-13 15 35 26.441 33
NPT1 18-25 17 38 33.5 41
NPT1 15-22 17 38 33.5 41
NPT1-1/4 24-32 17 43 42 50
NPT1-1/4 22-29 17 43 42 50

What is Nylon Cable Gland
A nylon cable gland is a lightweight high-insulation cable fitting used to secure and seal cable entries on electrical enclosures junction boxes and automation equipment. Made of high-strength PA66 nylon material it is a non-conductive corrosion-resistant alternative to metal glands. It is widely adopted for general industrial commercial and indoor wiring projects providing basic cable fixation dustproof and waterproof protection while ensuring safe electrical isolation.

How it Works
The nylon cable gland operates through a simple compression sealing mechanism. After the cable passes through the gland body and rubber seal tightening the threaded nut compresses the internal rubber grommet to wrap tightly around the cable outer sheath. This creates a fully enclosed seal that blocks dust and water ingress. Meanwhile the internal clamping structure locks the cable in place preventing pull-out displacement and vibration-induced loosening during long-term operation.

Benefits
Nylon cable glands feature excellent electrical insulation effectively avoiding current leakage and short circuit risks for safer wiring. The nylon material offers great anti-aging acid and alkali resistance suitable for humid and mildly corrosive working environments. Lightweight and cost-effective they reduce installation burden and project costs compared with metal glands. With stable IP67 waterproof performance and easy tool-free installation they deliver reliable long-term cable protection for low-voltage electrical and automation systems.

Screw spec Cable Range Φ Thread Length GL Joint Length H Thread O.D. AG Spanner size A&F Code
PG7 3-6.5 8 22 12.5 17/15 SM-NL.PG7S-6.5B
PG7 4-8 9 25 12.5 17/19 SM-NL.PG7-8B
PG9 4-8 9 25 15.2 22/19 SM-NL.PG9-8B
PG9 2-5 9 25 15.2 22/19 SM-NL.PG9-5B
PG11 6-10 9 28 18.6 24/22 SM-NL.PG11-10B
PG11 4-8 9 28 18.6 24/22 SM-NL.PG11-8B
PG13.5 6-12 10 30 20.4 27/24 SM-NL.PG13.5-12B
PG13.5 5-10 10 30 20.4 27/24 SM-NL.PG13.5-10B
PG16 10-14 10.8 31 22.5 30/27 SM-NL.PG16-14B
PG16 5-10 10.8 31 22.5 30/27 SM-NL.PG16-10B
PG19 8.5-14 11 31 23.5 30/27 SM-NL.PG19-14B
PG19 6-11 11 31 22.5 30/27 SM-NL.PG19-11B
PG21 12.5-18 12 35 28.3 36/33 SM-NL.PG21-18B
PG21 7-13 12 35 28.3 36/33 SM-NL.PG21-13B
PG25 14-20 13 35 30 36/37 SM-NL.PG25-20B
PG29 18-25 15 38 37 46/41 SM-NL.PG29-25B
PG29 15-22 15 38 37 46/41 SM-NL.PG29-22B
PG36 24-32 15 43 47 57/50 SM-NL.PG36-32B
PG36 22-29 15 43 47 57/50 SM-NL.PG36-29B
PG42 31-41 15.5 47 54 64/62 SM-NL.PG42-41B
PG42 22-28 15.5 47 54 64/62 SM-NL.PG42-28B
PG48 35-45 15.5 52 59.3 70/65 SM-NL.PG48-45B
G3/8 6-10 10 28 16.662 22/22
G3/8 4-8 10 28 16.662 22/22
G1/2 6-12 10 30 20.955 27/24
G1/2 5-10 10 30 20.955 27/24
G3/4 12.5-18 12 35 26.441 33/33
G3/4 7-13 12 35 26.441 33/33
G1 18-25 13.5 38 33.2 42/41
G1 15-22 13.5 38 33.2 42/41
G1-1/4 24-32 15 43 41.9 51/50
G1-1/4 22-29 15 43 41.9 51/50
NPT3/8 6-10 10 28 16.662 22
NPT3/8 4-8 10 28 16.662 22
NPT1/2 6-12 10 30 20.955 27
NPT1/2 5-10 10 30 20.955 27
NPT3/4 12.5-18 15 35 26.441 33
NPT3/4 7-13 15 35 26.441 33
NPT1 18-25 17 38 33.5 41
NPT1 15-22 17 38 33.5 41
NPT1-1/4 24-32 17 43 42 50
NPT1-1/4 22-29 17 43 42 50

What is Nylon Cable Gland
A nylon cable gland is a lightweight high-insulation cable fitting used to secure and seal cable entries on electrical enclosures junction boxes and automation equipment. Made of high-strength PA66 nylon material it is a non-conductive corrosion-resistant alternative to metal glands. It is widely adopted for general industrial commercial and indoor wiring projects providing basic cable fixation dustproof and waterproof protection while ensuring safe electrical isolation.

How it Works
The nylon cable gland operates through a simple compression sealing mechanism. After the cable passes through the gland body and rubber seal tightening the threaded nut compresses the internal rubber grommet to wrap tightly around the cable outer sheath. This creates a fully enclosed seal that blocks dust and water ingress. Meanwhile the internal clamping structure locks the cable in place preventing pull-out displacement and vibration-induced loosening during long-term operation.

Benefits
Nylon cable glands feature excellent electrical insulation effectively avoiding current leakage and short circuit risks for safer wiring. The nylon material offers great anti-aging acid and alkali resistance suitable for humid and mildly corrosive working environments. Lightweight and cost-effective they reduce installation burden and project costs compared with metal glands. With stable IP67 waterproof performance and easy tool-free installation they deliver reliable long-term cable protection for low-voltage electrical and automation systems.
