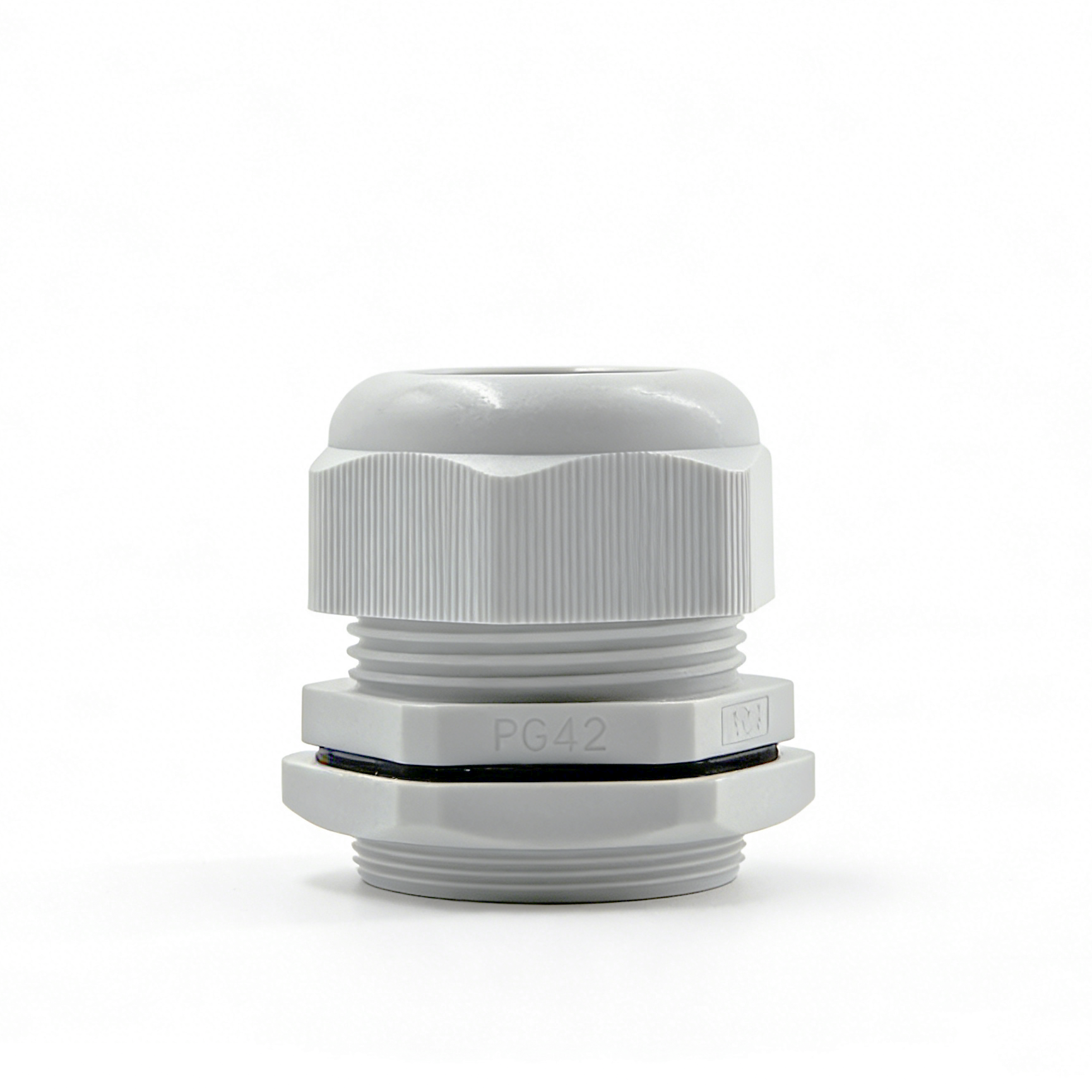

Nylon Cable Gland M Threaded Type

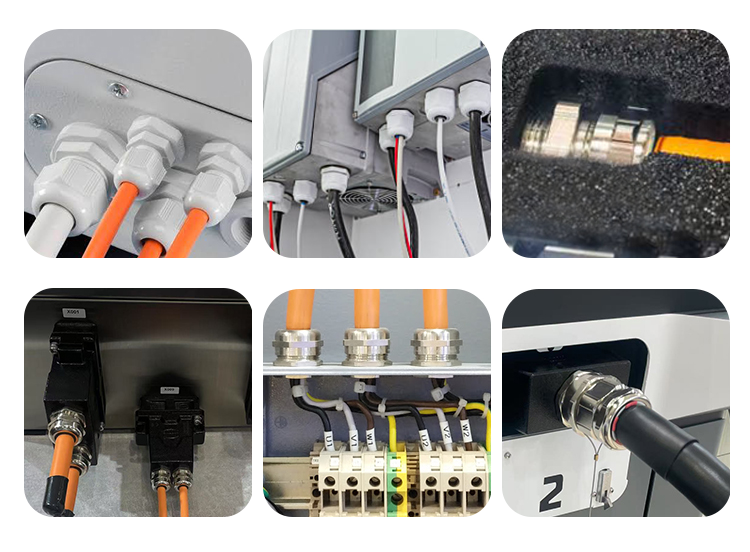

A Nylon Cable Gland is a durable cable management device designed tosecure, seal, and protect cables where they enter electrical equipment orenclosures. Made from high-quality PA66 nylon, it offers excellent resistanceto water, dust, UV exposure, corrosion, and chemicals. With IP68 waterproofprotection, nylon cable glands are widely used in electrical panels, industrialautomation, telecommunications, solar energy systems, LED lighting,machinery, and outdoor installations. They provide reliable strain relief, extendcable life, and ensure safe, long-lasting electrical connections in demandingenvironments.
Brand: SOCOME
Model No.: SM-NL-M
Material: PA/PA6(Nylon),UL94-V2
Hermetic seal: EPDM. Silicone rubber
O-Ring:EPDM.Silicone rubber
Protection degree: IP68
Temperature: Static state:-40to 100°C,Short time to 120°C
Dynamic state:-20°C to 80°C ,Short time to 100°C
Color customization: Grey, Black, other color customized
| Item | Wire range | GL | Thread O.D. | Spanner size | Code |
| M12×1.5 | 3-6.5 | 9 | 12 | 18/16 | SM-NL.M12 |
| M12×1.5 | 4-8 | 9 | 12 | 18/16 | SM-NL.M12-8 |
| M16×1.5 | 4-8 | 9 | 16 | 22/19 | SM-NL.M16 |
| M16×1.5 | 5-10 | 9 | 16 | 22/19 | SM-NL.M16-10 |
| M18×1.5 | 5-10 | 9 | 18 | 24/22 | SM-NL.M18 |
| M18×1.5 | 6-11 | 9 | 20 | 27/24 | SM-NL.M20 |
| M20×1.5 | 10-14 | 9 | 20 | 27/24 | SM-NL.M20-14 |
| M22×1.5 | 10-14 | 10 | 22 | 30/27 | SM-NL.M22 |
| M25×1.5 | 12-15 | 10 | 25 | 31/28 | SM-NL.M25 |
| M25×1.5 | 13-18 | 12 | 25 | 31/28 | SM-NL.M25-18 |
| M27×1.5 | 13-18 | 12 | 27 | 35/33 | SM-NL.M27 |
| M30×1.5 | 16-21 | 12 | 30 | 37/35 | SM-NL.M30 |
| M32×1.5 | 16-21 | 12 | 32 | 38/35 | SM-NL.M32 |
| M36×1.5 | 18-25 | 12 | 36 | 45/42 | SM-NL.M36 |
| M40×1.5 | 22-32 | 17 | 40 | 52/52 | SM-NL.M40 |
| M50×1.5 | 32-38 | 19 | 50 | 62/58 | SM-NL.M50 |
| M63×1.5 | 37-44 | 19 | 63 | 72/64 | SM-NL.M63 |
What is Nylon Cable Gland
A nylon cable gland is a lightweight high-insulation cable fitting used to secure and seal cable entries on electrical enclosures junction boxes and automation equipment. Made of high-strength PA66 nylon material it is a non-conductive corrosion-resistant alternative to metal glands. It is widely adopted for general industrial commercial and indoor wiring projects providing basic cable fixation dustproof and waterproof protection while ensuring safe electrical isolation.
How it Works
The nylon cable gland operates through a simple compression sealing mechanism. After the cable passes through the gland body and rubber seal tightening the threaded nut compresses the internal rubber grommet to wrap tightly around the cable outer sheath. This creates a fully enclosed seal that blocks dust and water ingress. Meanwhile the internal clamping structure locks the cable in place preventing pull-out displacement and vibration-induced loosening during long-term operation.
Benefits
Nylon cable glands feature excellent electrical insulation effectively avoiding current leakage and short circuit risks for safer wiring. The nylon material offers great anti-aging acid and alkali resistance suitable for humid and mildly corrosive working environments. Lightweight and cost-effective they reduce installation burden and project costs compared with metal glands. With stable IP67 waterproof performance and easy tool-free installation they deliver reliable long-term cable protection for low-voltage electrical and automation systems.
A nylon cable gland is a lightweight high-insulation cable fitting used to secure and seal cable entries on electrical enclosures junction boxes and automation equipment. Made of high-strength PA66 nylon material it is a non-conductive corrosion-resistant alternative to me
How it Works
The nylon cable gland operates through a simple compression sealing mechanism. After the cable passes through the gland body and rubber seal tightening the threaded nut compresses the internal rubber grommet to wrap tightly around the cable outer sheath. This creates a fully enclosed seal that blocks dust and water ingress. Meanwhile the internal clamping structure locks the cable in place preventing pull-out displacement and vibration-induced loosening during long-term operation.
Benefits
Nylon cable glands feature excellent electrical insulation effectively avoiding current leakage and short circuit risks for safer wiring. The nylon material offers great anti-aging acid and alkali resistance suitable for humid and mildly corrosive working environments. Lightweight and cost-effective they reduce installation burden and project costs compared with me
