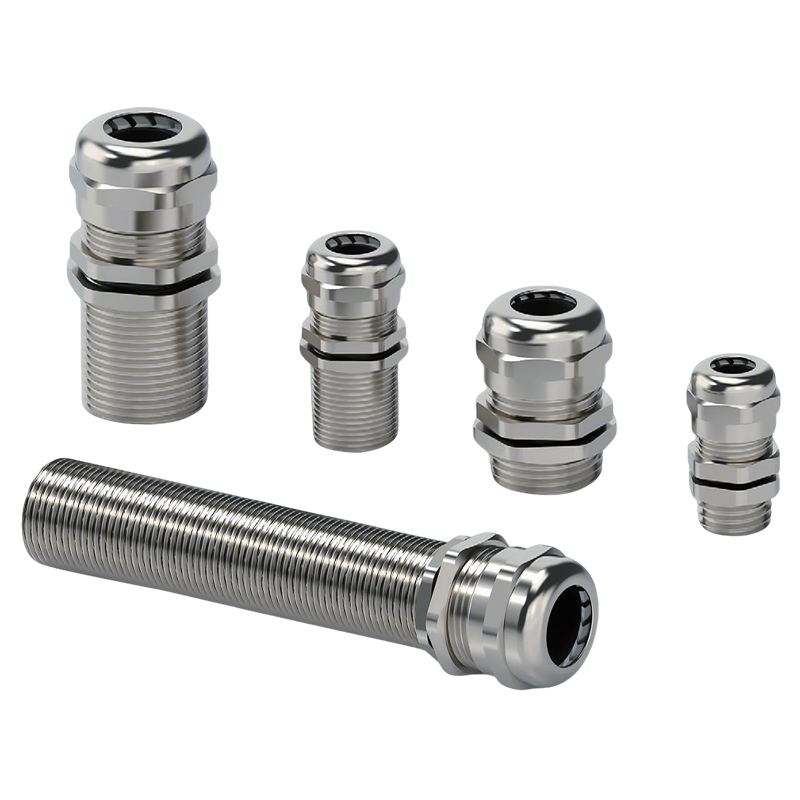

Metal Cable Gland-Length Type
A Metal Cable Gland is a durable cable entry and sealing solution designed to secure and protect electrical cables in industrial environments. Made from stainless steel or brass, it ensures reliable strain relief and high-level protection against dust, water, and corrosion. By tightly sealing the cable entry point, it helps maintain electrical safety and system stability. Widely used in automation, energy, marine, and harsh industrial applications, metal cable glands deliver long-lasting performance and IP-rated protection for critical cable connections.

Brand: SOCOME
Model No.: SM-NP
Material: Nickel Plated Brass
IP Level: IP68
Claw： PA66（Nylon），UL94-V2
Hermetic seal： EPDM、Silicone rubber
O-Ring： EPDM、Silicone rubber
Protection degree： IP68-10 bar
Temperature Static state：-40 to 100℃ ,Short time to 120℃
Dynamic state：-20℃ to 80℃ ,Short time to 100℃ INQUIRY
Item Range Thread Length Thread O.D. Joint Length Spanner size Code
M12×1.5 3-6.5 10 12 17 14 SM-NP.M12 L10
M16×1.5 4-8 12 16 19 18 SM-NP.M16 L12
M18×1.5 5-10 12 18 21 20 SM-NP.M18 L12
M20×1.5 6-12 12 20 22 22 SM-NP.M20 L12
M22×1.5 10-14 12 22 23 24 SM-NP.M22 L12
M25×1.5 10-14 12 25 25 24/27 SM-NP.M25-14 L12
M25×1.5 13-18 12 25 27 30/27 SM-NP.M25-18 L12
M32×1.5 15-22 15 32 29 35 SM-NP.M32 L15
M40×1.5 18-25 15 40 31 40/45 SM-NP.M40-25 L15
M40×1.5 22-30 15 40 35 45 SM-NP.M40-30 L15
M50×1.5 32-38 15 50 37 57/55 SM-NP.M50 L15
M63×1.5 37-44 18 63 38 64/68 SM-NP.M63 L18
PG7 3-6.5 10 12.5 17 14/15 SM-NP.PG7 L10
PG9 4-8 12 15.2 19 17/18 SM-NP.PG9 L12
PG11 5-10 12 18.6 21 20/21 SM-NP.PG11 L12
PG13.5 6-12 12 20.4 22 22/23 SM-NP.PG13.5 L12
PG16 10-14 12 22.5 23 24/25 SM-NP.PG16 L12
PG21 13-18 12 28.3 27 30 SM-NP.PG21 L12
PG29 18-25 15 37 31 40 SM-NP.PG29 L15
PG36 25-33 15 47 37 50 SM-NP.PG36 L15
PG42 32-38 15 54 37 57 SM-NP.PG42 L15
PG48 37-44 18 59.3 38 64 SM-NP.PG48 L18

What is metal Cable Gland

A metal Cable Gland is a cable entry device used to securely connect and seal electrical cables to equipment junction boxes or industrial enclosures. Made from stainless steel brass or nickel-plated metal it provides strong mechanical protection and reliable environmental sealing against dust water and oil.

How it Works

The cable is inserted into the gland and as the compression nut is tightened internal sealing components grip the cable tightly. This creates strain relief and prevents cable movement. At the same time the sealing structure blocks external contaminants. For armored cables it also provides grounding and armor clamping for added safety.

Benefits

Metal Cable Glands offer excellent durability corrosion resistance and high mechanical strength. They ensure IP-rated waterproof and dust proof protection reduce cable stress and improve system reliability. Suitable for harsh industrial environments they provide safe stable and long-lasting cable connections across multiple industries.


Item Range Thread Length Thread O.D. Joint Length Spanner size Code
M12×1.5 3-6.5 10 12 17 14 SM-NP.M12 L10
M16×1.5 4-8 12 16 19 18 SM-NP.M16 L12
M18×1.5 5-10 12 18 21 20 SM-NP.M18 L12
M20×1.5 6-12 12 20 22 22 SM-NP.M20 L12
M22×1.5 10-14 12 22 23 24 SM-NP.M22 L12
M25×1.5 10-14 12 25 25 24/27 SM-NP.M25-14 L12
M25×1.5 13-18 12 25 27 30/27 SM-NP.M25-18 L12
M32×1.5 15-22 15 32 29 35 SM-NP.M32 L15
M40×1.5 18-25 15 40 31 40/45 SM-NP.M40-25 L15
M40×1.5 22-30 15 40 35 45 SM-NP.M40-30 L15
M50×1.5 32-38 15 50 37 57/55 SM-NP.M50 L15
M63×1.5 37-44 18 63 38 64/68 SM-NP.M63 L18
PG7 3-6.5 10 12.5 17 14/15 SM-NP.PG7 L10
PG9 4-8 12 15.2 19 17/18 SM-NP.PG9 L12
PG11 5-10 12 18.6 21 20/21 SM-NP.PG11 L12
PG13.5 6-12 12 20.4 22 22/23 SM-NP.PG13.5 L12
PG16 10-14 12 22.5 23 24/25 SM-NP.PG16 L12
PG21 13-18 12 28.3 27 30 SM-NP.PG21 L12
PG29 18-25 15 37 31 40 SM-NP.PG29 L15
PG36 25-33 15 47 37 50 SM-NP.PG36 L15
PG42 32-38 15 54 37 57 SM-NP.PG42 L15
PG48 37-44 18 59.3 38 64 SM-NP.PG48 L18

What is metal Cable Gland

A metal Cable Gland is a cable entry device used to securely connect and seal electrical cables to equipment junction boxes or industrial enclosures. Made from stainless steel brass or nickel-plated metal it provides strong mechanical protection and reliable environmental sealing against dust water and oil.

How it Works

The cable is inserted into the gland and as the compression nut is tightened internal sealing components grip the cable tightly. This creates strain relief and prevents cable movement. At the same time the sealing structure blocks external contaminants. For armored cables it also provides grounding and armor clamping for added safety.

Benefits

Metal Cable Glands offer excellent durability corrosion resistance and high mechanical strength. They ensure IP-rated waterproof and dust proof protection reduce cable stress and improve system reliability. Suitable for harsh industrial environments they provide safe stable and long-lasting cable connections across multiple industries.
