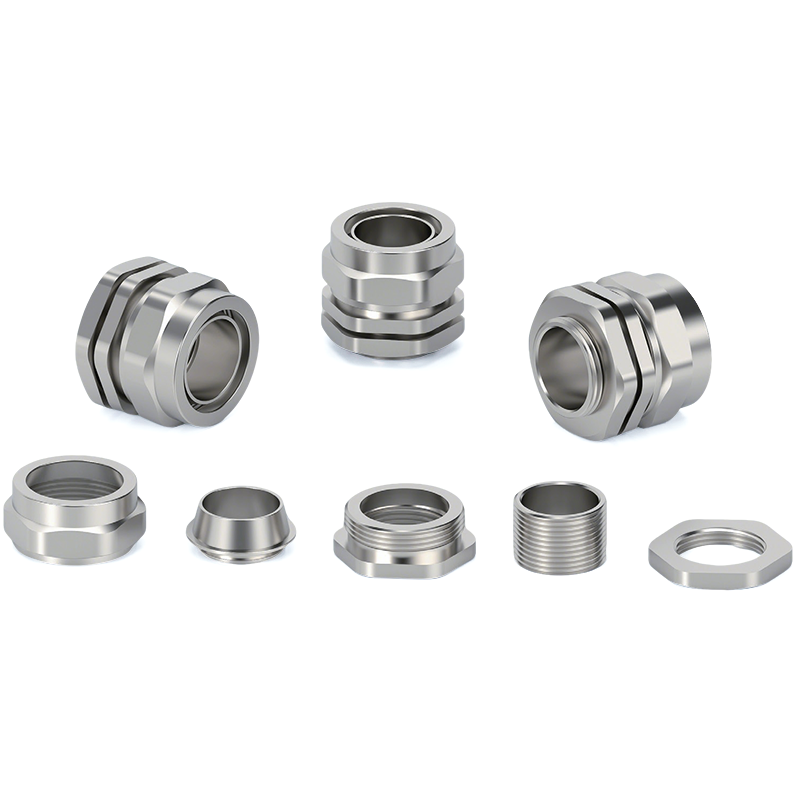

BW Cable Gland
A Metal Cable Gland is a durable cable entry and sealing solution designed to secure and protect electrical cables in industrial environments. Made from stainless steel or brass, it ensures reliable strain relief and high-level protection against dust, water, and corrosion. By tightly sealing the cable entry point, it helps maintain electrical safety and system stability. Widely used in automation, energy, marine, and harsh industrial applications, metal cable glands deliver long-lasting performance and IP-rated protection for critical cable connections.

Brand: SOCOME
Model No.: BW
Material: Nickel Plated Brass
IP Level: IP68
Temperature Static state：-60 to 100℃ ,Short time to 120℃
Dynamic state：-20℃ to 80℃ ,Short time to 100℃

INQUIRY
Item Thread Range Min. Range Max. Thread Length Thread O.D. Joint Length Spanner size Code
BW-0 M20×1.5 12.6 16.5 10 20 23 22 SM-BW0
BW-1 M20×1.5 15.9 19 10 20 26 27/25/24 SM-BW1
BW-2 M25×1.5 20.6 26.5 10 25 29 35 SM-BW2
BW-3 M32×1.5 26.5 33 10 32 32 40 SM-BW3
BW-4 M40×1.5 34.9 40.5 15 40 36 50 SM-BW4
BW-5 M50×1.5 44.5 51 15 50 45 64 SM-BW5
BW-6 M63×1.5 57 67 15 63 50 82 SM-BW6
BW-7 M75×2 68 79.5 15 75 60 96 SM-BW7
BW-8 M82×2 74 83 15 82 65 100 SM-BW8
BW-9 M90×2 82 91 15 90 69 110 SM-BW9
BW-10 M100×2 93 100 15 100 88 120 SM-BW10

What is metal Cable Gland

A metal Cable Gland is a cable entry device used to securely connect and seal electrical cables to equipment junction boxes or industrial enclosures. Made from stainless steel brass or nickel-plated metal it provides strong mechanical protection and reliable environmental sealing against dust water and oil.

How it Works

The cable is inserted into the gland and as the compression nut is tightened internal sealing components grip the cable tightly. This creates strain relief and prevents cable movement. At the same time the sealing structure blocks external contaminants. For armored cables it also provides grounding and armor clamping for added safety.

Benefits

Metal Cable Glands offer excellent durability corrosion resistance and high mechanical strength. They ensure IP-rated waterproof and dust proof protection reduce cable stress and improve system reliability. Suitable for harsh industrial environments they provide safe stable and long-lasting cable connections across multiple industries.


Item Thread Range Min. Range Max. Thread Length Thread O.D. Joint Length Spanner size Code
BW-0 M20×1.5 12.6 16.5 10 20 23 22 SM-BW0
BW-1 M20×1.5 15.9 19 10 20 26 27/25/24 SM-BW1
BW-2 M25×1.5 20.6 26.5 10 25 29 35 SM-BW2
BW-3 M32×1.5 26.5 33 10 32 32 40 SM-BW3
BW-4 M40×1.5 34.9 40.5 15 40 36 50 SM-BW4
BW-5 M50×1.5 44.5 51 15 50 45 64 SM-BW5
BW-6 M63×1.5 57 67 15 63 50 82 SM-BW6
BW-7 M75×2 68 79.5 15 75 60 96 SM-BW7
BW-8 M82×2 74 83 15 82 65 100 SM-BW8
BW-9 M90×2 82 91 15 90 69 110 SM-BW9
BW-10 M100×2 93 100 15 100 88 120 SM-BW10

What is metal Cable Gland

A metal Cable Gland is a cable entry device used to securely connect and seal electrical cables to equipment junction boxes or industrial enclosures. Made from stainless steel brass or nickel-plated metal it provides strong mechanical protection and reliable environmental sealing against dust water and oil.

How it Works

The cable is inserted into the gland and as the compression nut is tightened internal sealing components grip the cable tightly. This creates strain relief and prevents cable movement. At the same time the sealing structure blocks external contaminants. For armored cables it also provides grounding and armor clamping for added safety.

Benefits

Metal Cable Glands offer excellent durability corrosion resistance and high mechanical strength. They ensure IP-rated waterproof and dust proof protection reduce cable stress and improve system reliability. Suitable for harsh industrial environments they provide safe stable and long-lasting cable connections across multiple industries.
