Home > Products > Cable Glands > Metal Cable Gland > Metal Cable Gland EMC-M Type

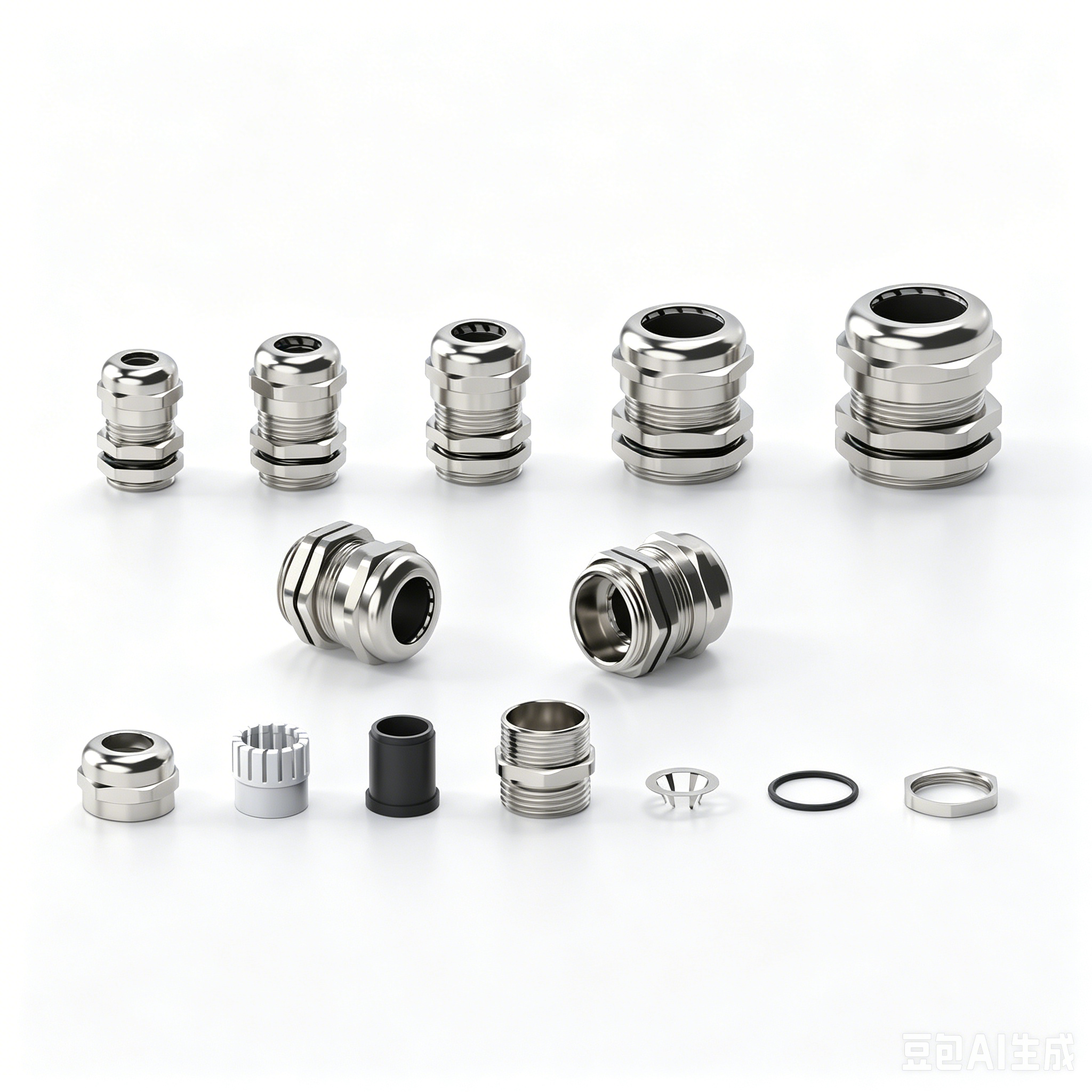

Metal Cable Gland EMC-M Type
A Metal Cable Gland is a durable cable entry and sealing solution designed to secure and protect electrical cables in industrial environments. Made from stainless steel or brass, it ensures reliable strain relief and high-level protection against dust, water, and corrosion. By tightly sealing the cable entry point, it helps maintain electrical safety and system stability. Widely used in automation, energy, marine, and harsh industrial applications, metal cable glands deliver long-lasting performance and IP-rated protection for critical cable connections.

Brand: SOCOME
Model No.: EMC-M
Material: Nickel Plated Bras
Claw: PA66
Temperature Static state：-40 to 100℃ ,Short time to 120℃
Dynamic state：-20℃ to 80℃ ,Short time to 100℃
INQUIRY
Item Range Thread Length Joint Length Spanner size Code
M12×1.5 3-6.5 6.5 19 14 SM-EMC.M12
M16×1.5 4-8 8 20 18 SM-EMC.M16
M16×1.5 5-10 8 21 20/18 SM-EMC.M16-10
M18×1.5 5-10 8 21 20 SM-EMC.M18
M20×1.5 6-12 8 22 22 SM-EMC.M20
M20×1.5 10-14 8 23 24/22 SM-EMC.M20-14
M22×1.5 10-14 8 23 24 SM-EMC.M22
M22×1.5 10-14 9 25 24/27 SM-EMC.M25-14
M25×1.5 12-16 9 27 27 SM-EMC.M25-16
M25×1.5 13-18 9 27 30/27 SM-EMC.M25-18
M32×1.5 15-22 10 29 35 SM-EMC.M32
M32×1.5 18-25 10 31 40/35 SM-EMC.M32-25
M40×1.5 18-25 11 31 40/45 SM-EMC.M40-25
M40×1.5 22-30 11 35 45 SM-EMC.M40-30
M40×1.5 25-33 11 37 50/45 SM-EMC.M40-33
M50×1.5 32-38 13 37 57/55 SM-EMC.M50
M63×1.5 37-44 14 38 64/68 SM-EMC.M63
M63×1.5 42-52 14 38 78/68 SM-EMC.M63-52
M72×2 42-52 16 42 78 SM-EMC.M72
M80×2 55-62 18 45 88 SM-EMC.M80
M88×2 65-70 18 45 94 SM-EMC.M88
M100×2 78-84 20 53 110 SM-EMC.M100
PG/G/NPT threads are available. Other model ranges can be inquired

What is metal Cable Gland

A metal Cable Gland is a cable entry device used to securely connect and seal electrical cables to equipment junction boxes or industrial enclosures. Made from stainless steel brass or nickel-plated metal it provides strong mechanical protection and reliable environmental sealing against dust water and oil.

How it Works

The cable is inserted into the gland and as the compression nut is tightened internal sealing components grip the cable tightly. This creates strain relief and prevents cable movement. At the same time the sealing structure blocks external contaminants. For armored cables it also provides grounding and armor clamping for added safety.

Benefits

Metal Cable Glands offer excellent durability corrosion resistance and high mechanical strength. They ensure IP-rated waterproof and dust proof protection reduce cable stress and improve system reliability. Suitable for harsh industrial environments they provide safe stable and long-lasting cable connections across multiple industries.


Item Range Thread Length Joint Length Spanner size Code
M12×1.5 3-6.5 6.5 19 14 SM-EMC.M12
M16×1.5 4-8 8 20 18 SM-EMC.M16
M16×1.5 5-10 8 21 20/18 SM-EMC.M16-10
M18×1.5 5-10 8 21 20 SM-EMC.M18
M20×1.5 6-12 8 22 22 SM-EMC.M20
M20×1.5 10-14 8 23 24/22 SM-EMC.M20-14
M22×1.5 10-14 8 23 24 SM-EMC.M22
M22×1.5 10-14 9 25 24/27 SM-EMC.M25-14
M25×1.5 12-16 9 27 27 SM-EMC.M25-16
M25×1.5 13-18 9 27 30/27 SM-EMC.M25-18
M32×1.5 15-22 10 29 35 SM-EMC.M32
M32×1.5 18-25 10 31 40/35 SM-EMC.M32-25
M40×1.5 18-25 11 31 40/45 SM-EMC.M40-25
M40×1.5 22-30 11 35 45 SM-EMC.M40-30
M40×1.5 25-33 11 37 50/45 SM-EMC.M40-33
M50×1.5 32-38 13 37 57/55 SM-EMC.M50
M63×1.5 37-44 14 38 64/68 SM-EMC.M63
M63×1.5 42-52 14 38 78/68 SM-EMC.M63-52
M72×2 42-52 16 42 78 SM-EMC.M72
M80×2 55-62 18 45 88 SM-EMC.M80
M88×2 65-70 18 45 94 SM-EMC.M88
M100×2 78-84 20 53 110 SM-EMC.M100
PG/G/NPT threads are available. Other model ranges can be inquired

What is metal Cable Gland

A metal Cable Gland is a cable entry device used to securely connect and seal electrical cables to equipment junction boxes or industrial enclosures. Made from stainless steel brass or nickel-plated metal it provides strong mechanical protection and reliable environmental sealing against dust water and oil.

How it Works

The cable is inserted into the gland and as the compression nut is tightened internal sealing components grip the cable tightly. This creates strain relief and prevents cable movement. At the same time the sealing structure blocks external contaminants. For armored cables it also provides grounding and armor clamping for added safety.

Benefits

Metal Cable Glands offer excellent durability corrosion resistance and high mechanical strength. They ensure IP-rated waterproof and dust proof protection reduce cable stress and improve system reliability. Suitable for harsh industrial environments they provide safe stable and long-lasting cable connections across multiple industries.
