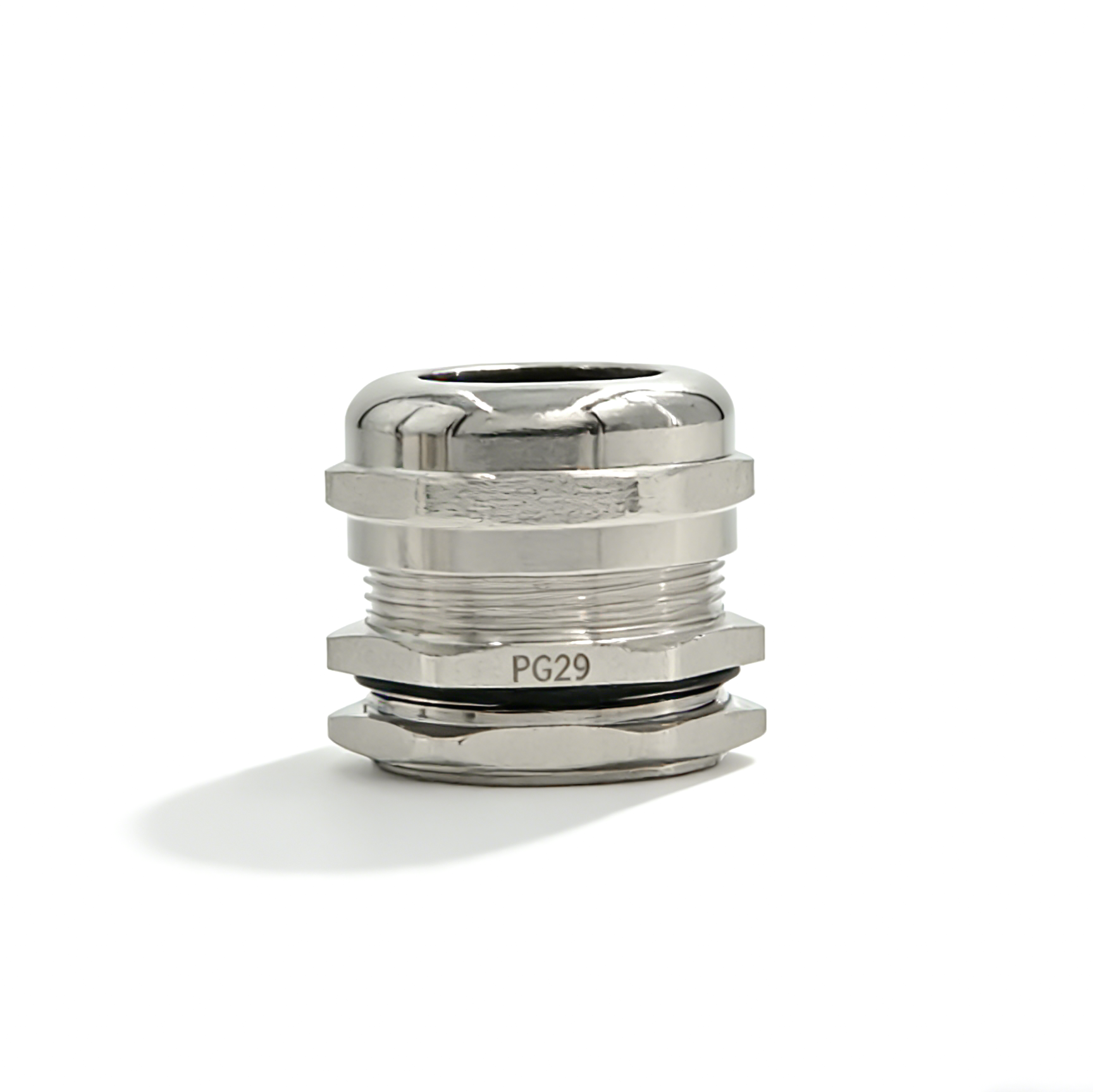

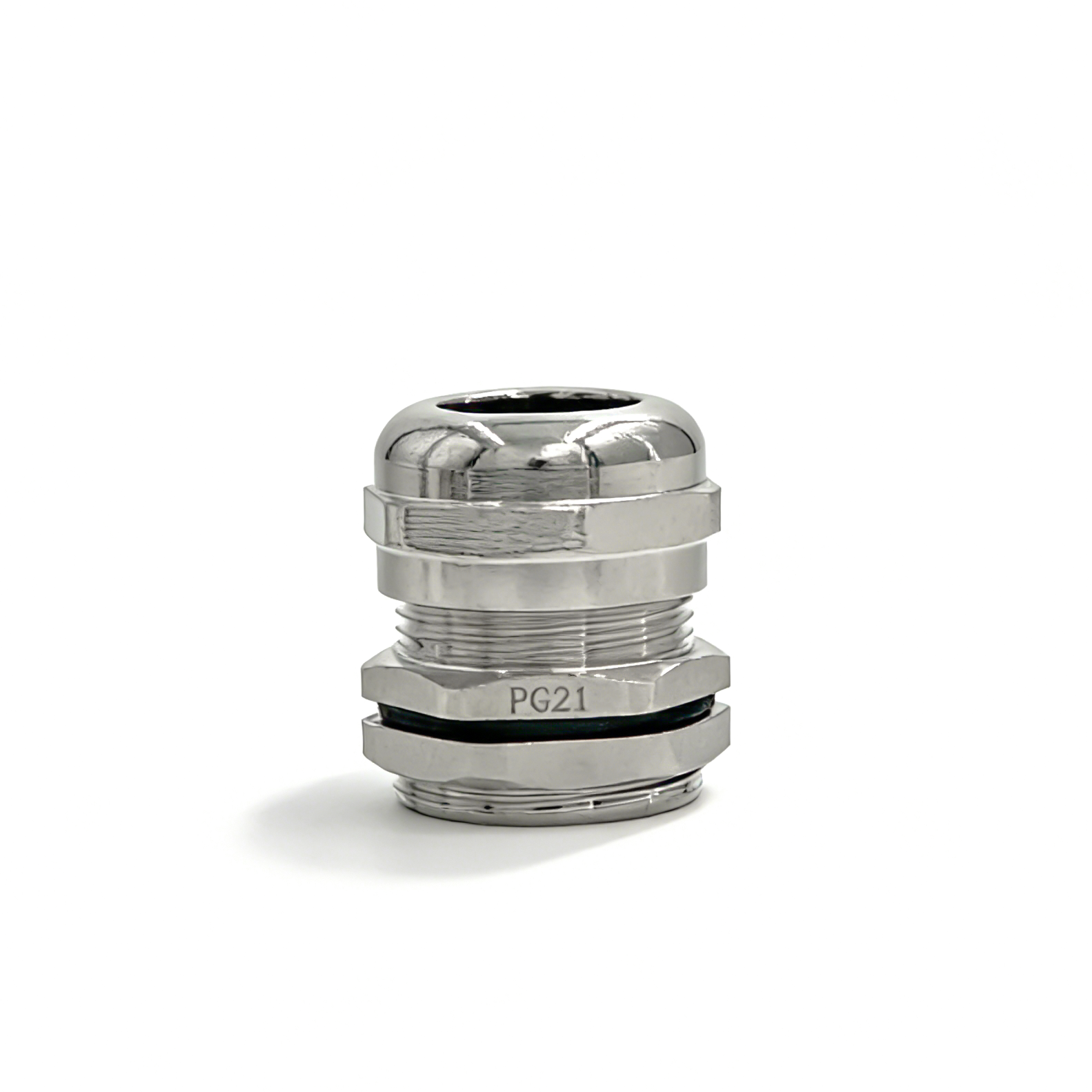

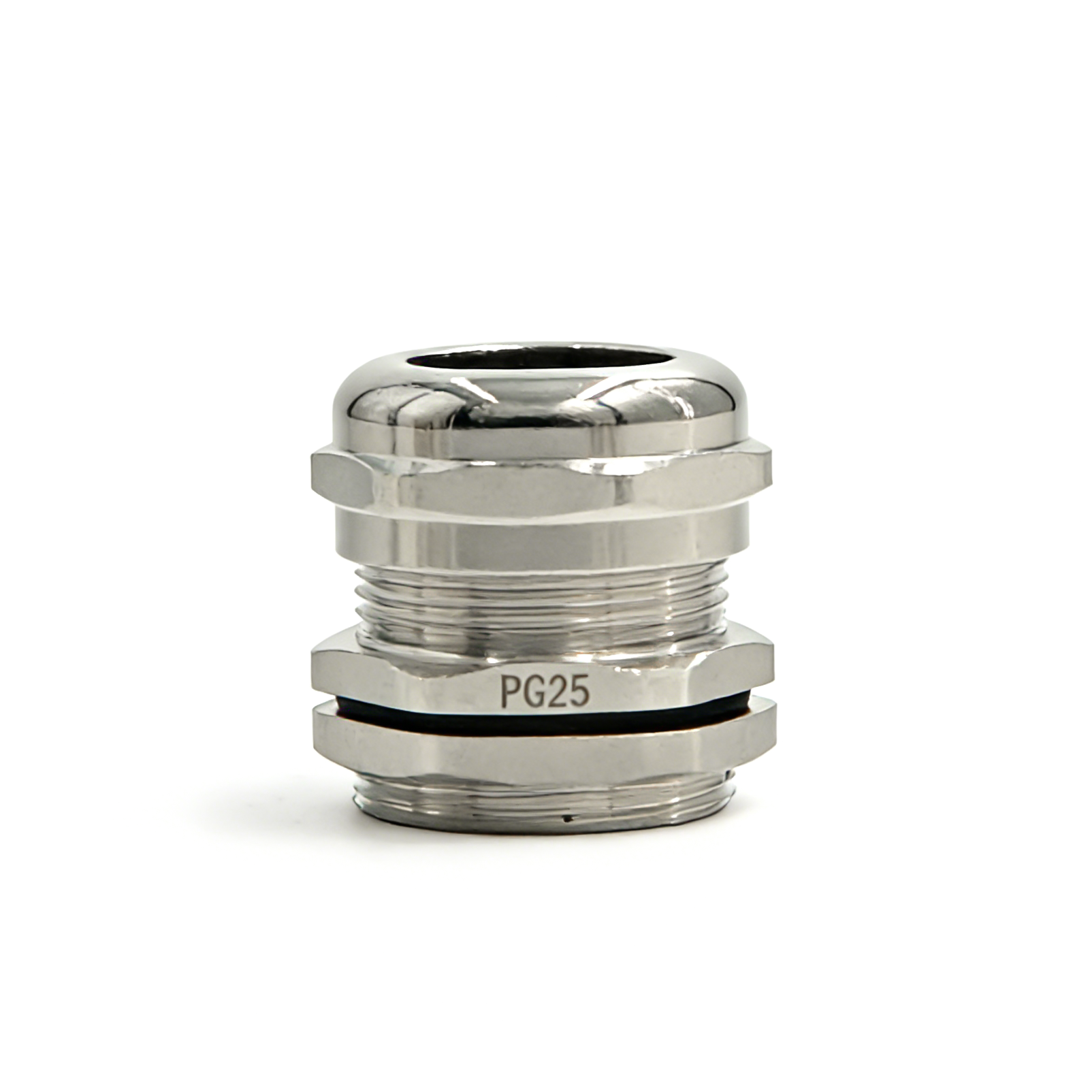

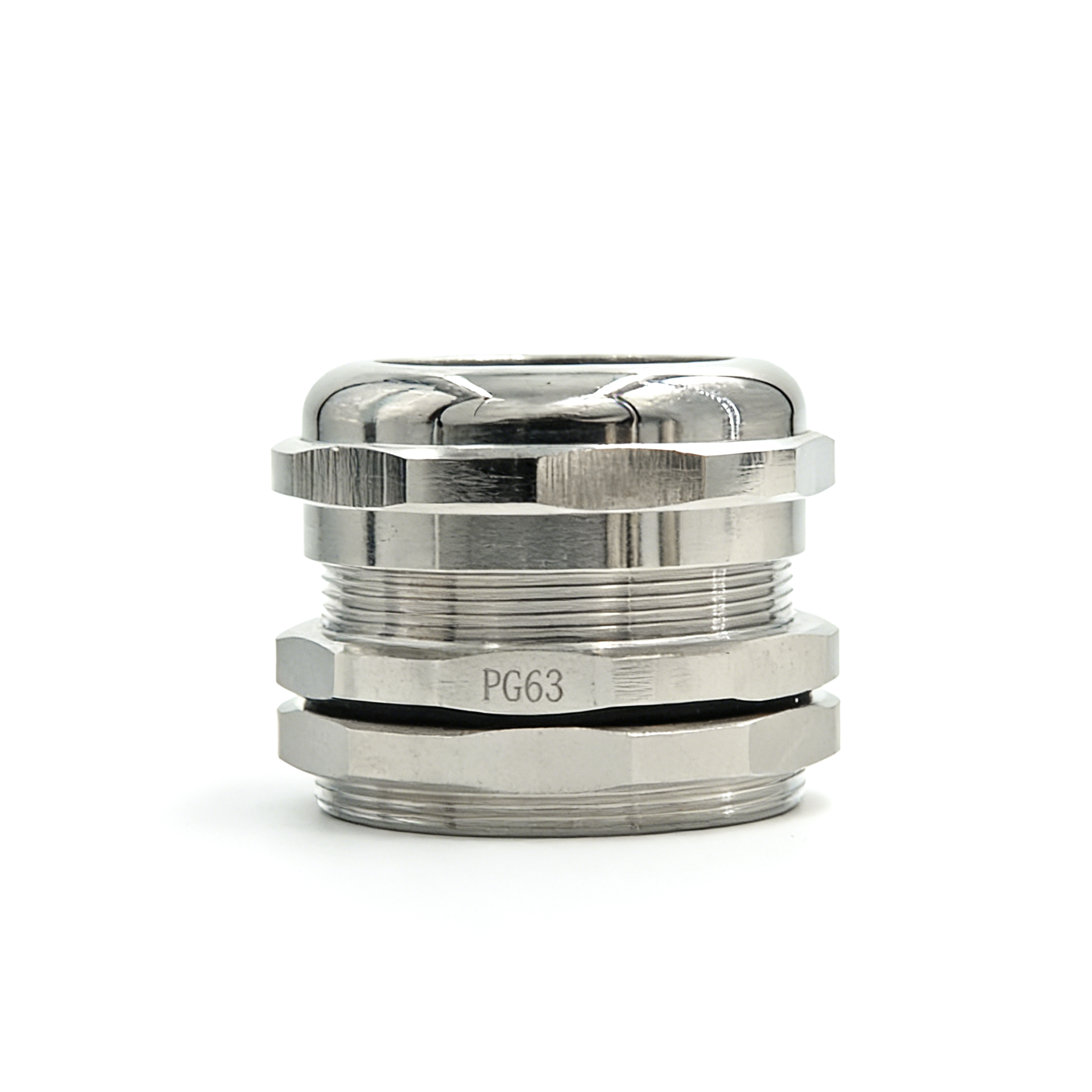

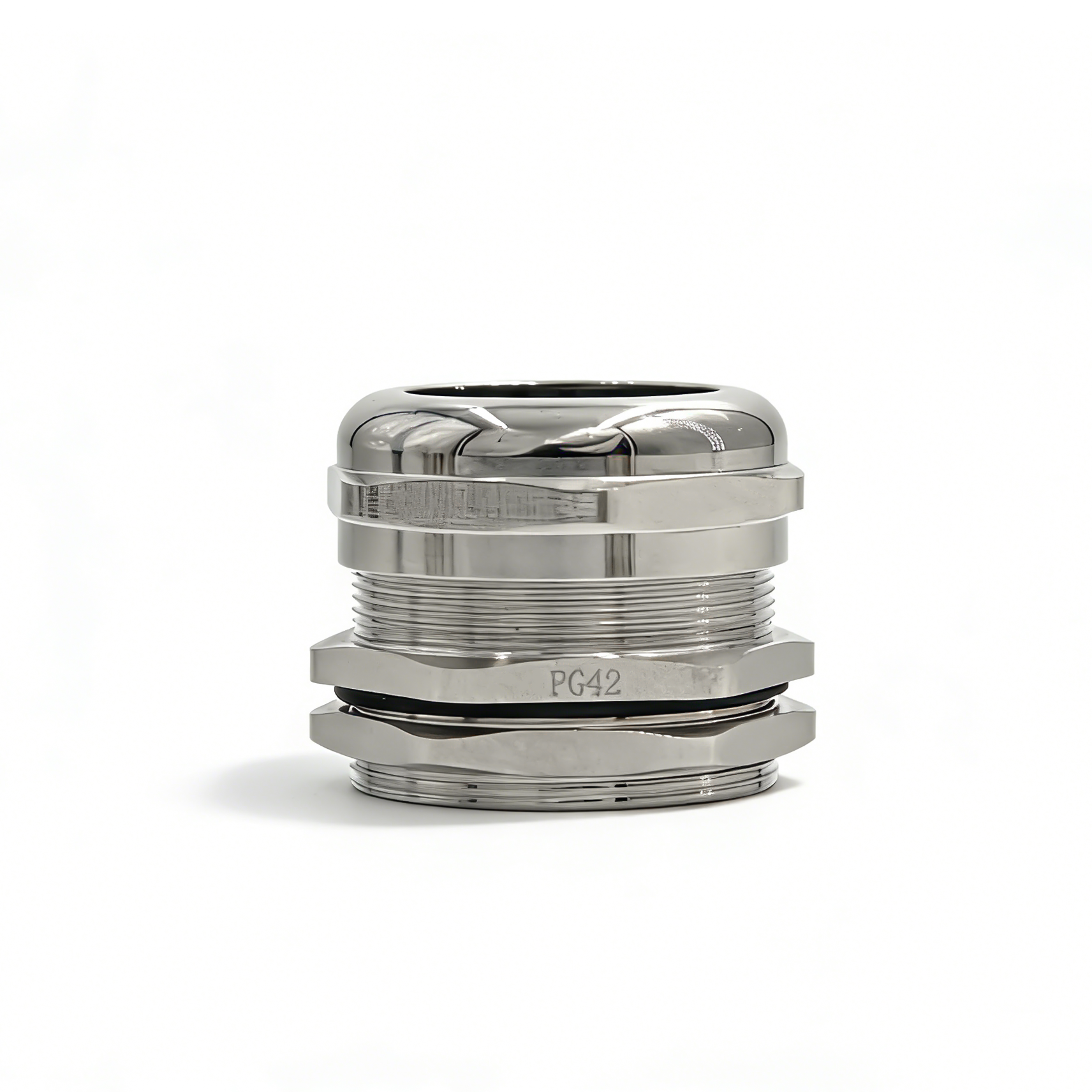

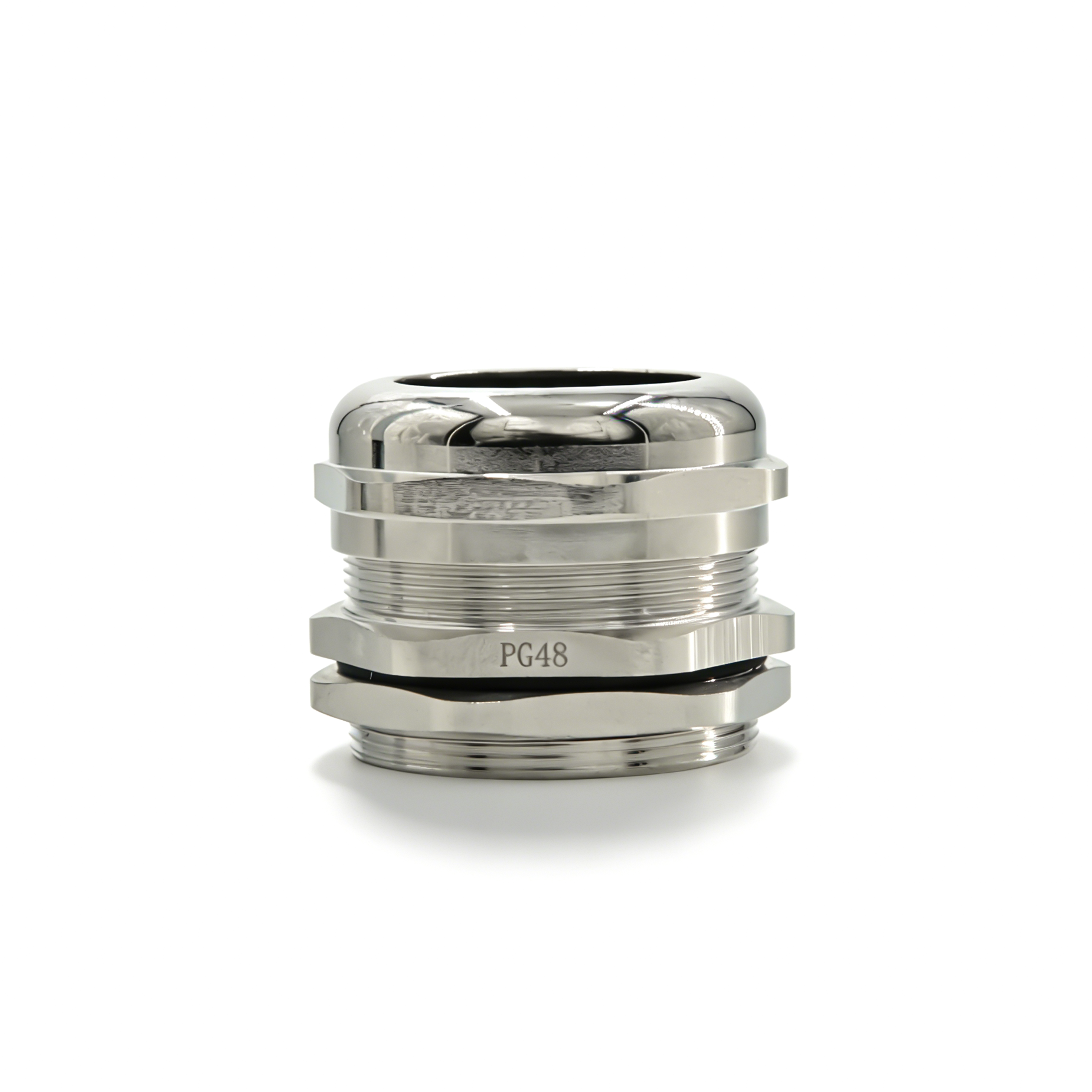

metal Cable Gland M Threaded Type

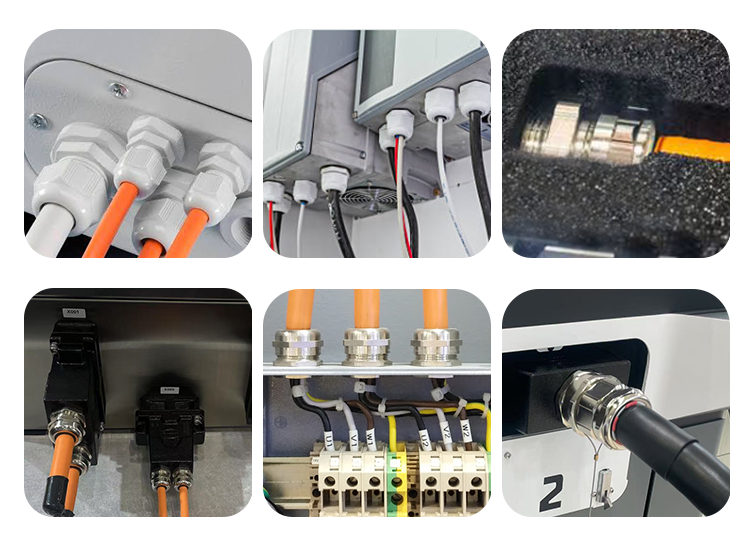

A Metal Cable Gland is a durable cable entry and sealing solution designed to secure and protect electrical cables in industrial environments. Made from stainless steel or brass, it ensures reliable strain relief and high-level protection against dust, water, and corrosion. By tightly sealing the cable entry point, it helps maintain electrical safety and system stability. Widely used in automation, energy, marine, and harsh industrial applications, metal cable glands deliver long-lasting performance and IP-rated protection for critical cable connections.

Brand: SOCOME
Model No.: M
Material: Nickel Plated Brass
IP Level: IP68
Threaded: M, PG, NPT, G INQUIRY

Item	Φ Range	GL Thread Length	AG Thread O.D.	H Joint Length	Spanner size	Code
M10×1.0	3-6.5	6.5	10	17	14	SM-NP.M10
M12×1.5	2-5	6.5	12	17	14	SM-NP.M12-(5)
M12×1.5	3-6.5	6.5	12	17	14	SM-NP.M12
M12×1.5	4-8	8	12	18	17/14	SM-NP.M12-8
M14×1.5	3-6	8	14	18	17	SM-NP.M14-(6)
M14×1.5	4-8	8	14	18	17	SM-NP.M14
M14×1.5	5-10	8	14	19	20/17	SM-NP.M14-10
M16×1.5	3-6	8	16	19	18	SM-NP.M16-(6)
M16×1.5	4-8	8	16	19	18	SM-NP.M16
M16×1.5	5-10	8	16	19	20/18	SM-NP.M16-10
M18×1.5	4-8	8	18	20	20	SM-NP.M18-(8)
M18×1.5	5-10	8	18	20	20	SM-NP.M18
M18×1.5	6-12	8	18	21	20	SM-NP.M18-12
M20×1.5	5-10	8	20	21	22	SM-NP.M20-(10)
M20×1.5	6-12	8	20	21	22	SM-NP.M20
M20×1.5	10-14	8	20	22	24/22	SM-NP.M20-14
M20×1.5	12-16	8	20	25	27/22	SM-NP.M20-16
M22×1.5	4-8	8	22	22	24	SM-NP.M22-(8)
M22×1.5	8-12	8	22	22	24	SM-NP.M22-(12)
M22×1.5	10-14	8	22	22	24	SM-NP.M22
M22×1.5	12-16	8	22	25	27/24	SM-NP.M22-16
M24×1.5	8-12	9	24	22	24/27	SM-NP.M24-(12)
M24×1.5	10-14	9	24	22	24/27	SM-NP.M24
M24×1.5	12-16	9	24	22	27	SM-NP.M24-16
M25×1.5	10-14	9	25	22	24/27	SM-NP.M25-14
M25×1.5	12-16	9	25	25	27	SM-NP.M25-16
M25×1.5	13-18	9	25	27	30/27	SM-NP.M25-18
M25×1.5	15-22	9	25	29	35/27	SM-NP.M25-22
M27×1.5	12-16	9	27	27	30	SM-NP.M27-(16)
M27×1.5	13-18	9	27	27	30	SM-NP.M27
M28×1.5	13-18	9	28	27	30	SM-NP.M28
M30×1.5	13-18	9	30	27	30/32	SM-NP.M30
M30×1.5	15-22	9	30	29	35/32	SM-NP.M30-22
M32×1.5	14-20	10	32	29	35	SM-NP.M32-(20)
M32×1.5	15-22	10	32	29	40/35	SM-NP.M32-25
M33×1.5	15-22	10	33	29	35/36	SM-NP.M33
M36×1.5	18-25	10	36	31	40	SM-NP.M36
M37×1.5	18-25	10	37	31	40	SM-NP.M37
M40×1.5	18-25	11	40	31	40/45	SM-NP.M40-25
M40×1.5	22-30	11	40	35	45	SM-NP.M40-30
M40×1.5	25-33	11	40	37	50/45	SM-NP.M40-33
M42×1.5	22-30	11	42	35	45	SM-NP.M42
M47×1.5	18-25	11	47	37	50	SM-NP.M47-(25)
M47×1.5	22-30	11	47	37	50	SM-NP.M47-(30)
M47×1.5	25-33	11	47	37	50	SM-NP.M47
M48×1.5	25-33	11	48	37	50/52	SM-NP.M48
M48×1.5	30-35	13	50	37	57/55	SM-NP.M50-(35)
M50×1.5	32-38	13	50	37	57/55	SM-NP.M50
M50×1.5	37-44	13	50	38	64/55	SM-NP.M50-44
M54×1.5	32-38	13	54	37	57	SM-NP.M54
M60×1.5	37-44	14	60	38	64	SM-NP.M60
M60×1.5	30-35	14	63	38	64/68	SM-NP.M63-(35)
M63×1.5	37-44	14	63	38	64/68	SM-NP.M63
M63×1.5	42-52	14	63	44	78/68	SM-NP.M63-52
M64×2.0	37-44	14	64	38	64/68	SM-NP.M64
M70×2.0	42-52	16	70	44	78	SM-NP.M70
M70×2.0	42-52	16	72	44	78	SM-NP.M72
M72×2.0	48-58	16	72	44	78	SM-NP.M72-58
M72×2.0	55-62	16	72	45	88/78	SM-NP.M72-62
M75×2.0	42-52	16	75	44	78/80	SM-NP.M75
M75×2.0	48-58	16	75	44	78/80	SM-NP.M75-58
M80×2.0	55-62	18	80	45	88	SM-NP.M80
M88×2.0	65-70	18	88	45	94	SM-NP.M88
M90×2.0	65-70	18	90	45	94	SM-NP.M90
M100×2.0	78-84	20	100	53	110	SM-NP.M100
M110×2.0	82-88	20	110	53	120	SM-NP.M110
M120×2.0	88-95	20	120	53	130	SM-NP.M120
Thread specifications can be customized

What is metal Cable Gland

A metal Cable Gland is a cable entry device used to securely connect and seal electrical cables to equipment junction boxes or industrial enclosures. Made from stainless steel brass or nickel-plated metal it provides strong mechanical protection and reliable environmental sealing against dust water and oil.

How it Works

The cable is inserted into the gland and as the compression nut is tightened internal sealing components grip the cable tightly. This creates strain relief and prevents cable movement. At the same time the sealing structure blocks external contaminants. For armored cables it also provides grounding and armor clamping for added safety.

Benefits

Metal Cable Glands offer excellent durability corrosion resistance and high mechanical strength. They ensure IP-rated waterproof and dust proof protection reduce cable stress and improve system reliability. Suitable for harsh industrial environments they provide safe stable and long-lasting cable connections across multiple industries.

Item	Φ Range	GL Thread Length	AG Thread O.D.	H Joint Length	Spanner size	Code
M10×1.0	3-6.5	6.5	10	17	14	SM-NP.M10
M12×1.5	2-5	6.5	12	17	14	SM-NP.M12-(5)
M12×1.5	3-6.5	6.5	12	17	14	SM-NP.M12
M12×1.5	4-8	8	12	18	17/14	SM-NP.M12-8
M14×1.5	3-6	8	14	18	17	SM-NP.M14-(6)
M14×1.5	4-8	8	14	18	17	SM-NP.M14
M14×1.5	5-10	8	14	19	20/17	SM-NP.M14-10
M16×1.5	3-6	8	16	19	18	SM-NP.M16-(6)
M16×1.5	4-8	8	16	19	18	SM-NP.M16
M16×1.5	5-10	8	16	19	20/18	SM-NP.M16-10
M18×1.5	4-8	8	18	20	20	SM-NP.M18-(8)
M18×1.5	5-10	8	18	20	20	SM-NP.M18
M18×1.5	6-12	8	18	21	20	SM-NP.M18-12
M20×1.5	5-10	8	20	21	22	SM-NP.M20-(10)
M20×1.5	6-12	8	20	21	22	SM-NP.M20
M20×1.5	10-14	8	20	22	24/22	SM-NP.M20-14
M20×1.5	12-16	8	20	25	27/22	SM-NP.M20-16
M22×1.5	4-8	8	22	22	24	SM-NP.M22-(8)
M22×1.5	8-12	8	22	22	24	SM-NP.M22-(12)
M22×1.5	10-14	8	22	22	24	SM-NP.M22
M22×1.5	12-16	8	22	25	27/24	SM-NP.M22-16
M24×1.5	8-12	9	24	22	24/27	SM-NP.M24-(12)
M24×1.5	10-14	9	24	22	24/27	SM-NP.M24
M24×1.5	12-16	9	24	22	27	SM-NP.M24-16
M25×1.5	10-14	9	25	22	24/27	SM-NP.M25-14
M25×1.5	12-16	9	25	25	27	SM-NP.M25-16
M25×1.5	13-18	9	25	27	30/27	SM-NP.M25-18
M25×1.5	15-22	9	25	29	35/27	SM-NP.M25-22
M27×1.5	12-16	9	27	27	30	SM-NP.M27-(16)
M27×1.5	13-18	9	27	27	30	SM-NP.M27
M28×1.5	13-18	9	28	27	30	SM-NP.M28
M30×1.5	13-18	9	30	27	30/32	SM-NP.M30
M30×1.5	15-22	9	30	29	35/32	SM-NP.M30-22
M32×1.5	14-20	10	32	29	35	SM-NP.M32-(20)
M32×1.5	15-22	10	32	29	40/35	SM-NP.M32-25
M33×1.5	15-22	10	33	29	35/36	SM-NP.M33
M36×1.5	18-25	10	36	31	40	SM-NP.M36
M37×1.5	18-25	10	37	31	40	SM-NP.M37
M40×1.5	18-25	11	40	31	40/45	SM-NP.M40-25
M40×1.5	22-30	11	40	35	45	SM-NP.M40-30
M40×1.5	25-33	11	40	37	50/45	SM-NP.M40-33
M42×1.5	22-30	11	42	35	45	SM-NP.M42
M47×1.5	18-25	11	47	37	50	SM-NP.M47-(25)
M47×1.5	22-30	11	47	37	50	SM-NP.M47-(30)
M47×1.5	25-33	11	47	37	50	SM-NP.M47
M48×1.5	25-33	11	48	37	50/52	SM-NP.M48
M48×1.5	30-35	13	50	37	57/55	SM-NP.M50-(35)
M50×1.5	32-38	13	50	37	57/55	SM-NP.M50
M50×1.5	37-44	13	50	38	64/55	SM-NP.M50-44
M54×1.5	32-38	13	54	37	57	SM-NP.M54
M60×1.5	37-44	14	60	38	64	SM-NP.M60
M60×1.5	30-35	14	63	38	64/68	SM-NP.M63-(35)
M63×1.5	37-44	14	63	38	64/68	SM-NP.M63
M63×1.5	42-52	14	63	44	78/68	SM-NP.M63-52
M64×2.0	37-44	14	64	38	64/68	SM-NP.M64
M70×2.0	42-52	16	70	44	78	SM-NP.M70
M70×2.0	42-52	16	72	44	78	SM-NP.M72
M72×2.0	48-58	16	72	44	78	SM-NP.M72-58
M72×2.0	55-62	16	72	45	88/78	SM-NP.M72-62
M75×2.0	42-52	16	75	44	78/80	SM-NP.M75
M75×2.0	48-58	16	75	44	78/80	SM-NP.M75-58
M80×2.0	55-62	18	80	45	88	SM-NP.M80
M88×2.0	65-70	18	88	45	94	SM-NP.M88
M90×2.0	65-70	18	90	45	94	SM-NP.M90
M100×2.0	78-84	20	100	53	110	SM-NP.M100
M110×2.0	82-88	20	110	53	120	SM-NP.M110
M120×2.0	88-95	20	120	53	130	SM-NP.M120
Thread specifications can be customized
